Nexis 125/-14D Hinge Sprung Click SF
Rated 3.5/5 based on 11 customer reviews
Hafele

Nexis 125/-14D Hinge Sprung Click SF

  • Product SKU: 322.40.630
  • Availability: Out of Stock
£10.57

Price inc. VAT

£10.57
Hurry! only 0 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
√ò 35 mm cup
  • Hinge arm: Click on
  • Opening angle: 125 ¬¨¬®‚Äö√†√ª
  • Cup fixing: Screw fixing

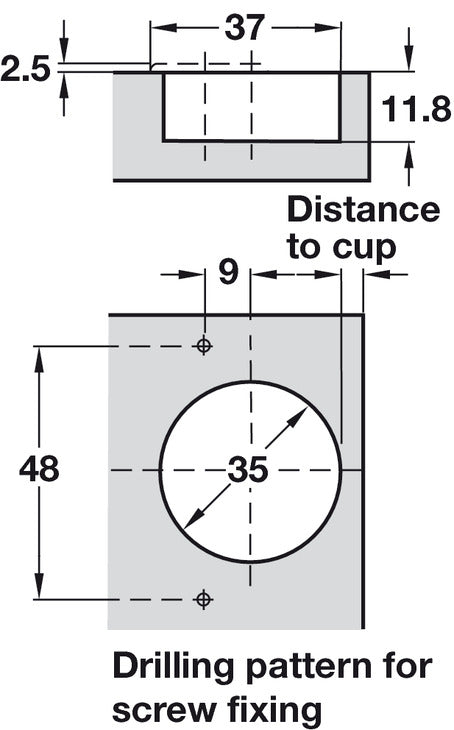

  • Drilling pattern: 48/9 mm
  • Drilling depth: Hinge cup 11.8 mm

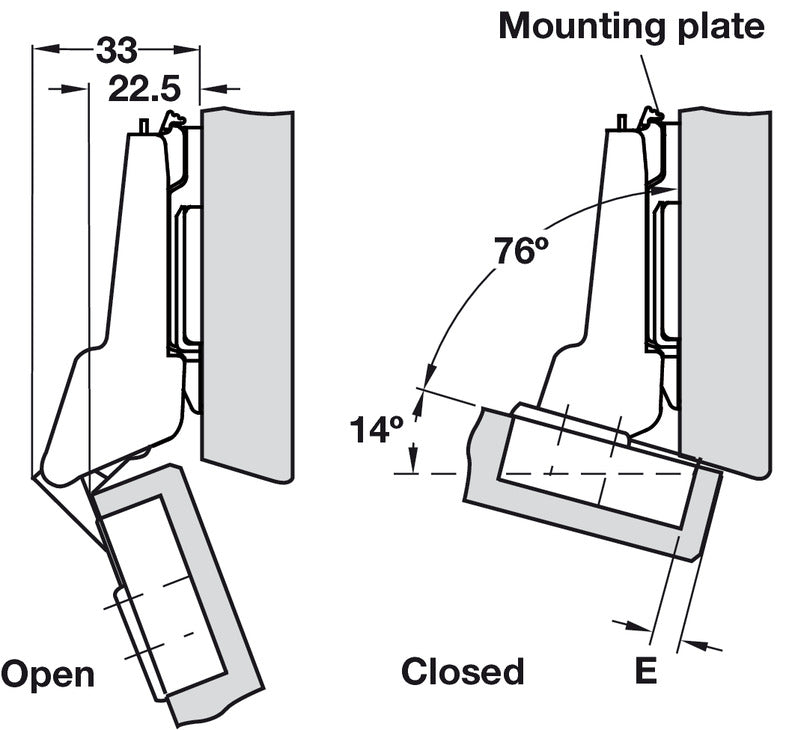

  • Application: For 14¬¨¬®‚Äö√†√ª negative angle applications
  • Type of closing: Soft-close compatible
  • Model series: Grass 125¬¨¬®‚Äö√†√ª
  • Material: Cup: SteelHinge arm: Zinc alloy
  • Finish: Nickel plated
  • Order reference: Wider range of mounting plates available, please order separatelyOrder Hospa ‚Äö√†√∂‚àö‚⧠3.5 mm raised head countersunk screws separately
