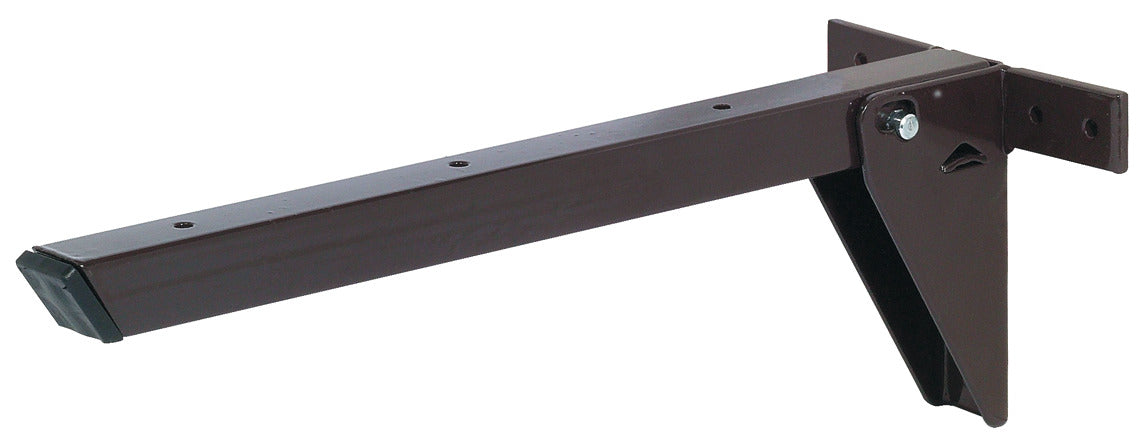

Tikla Fold Table Brkt 100kg/Pr 460mm Brw
Rated 3.5/5 based on 11 customer reviews
Hafele

Tikla Fold Table Brkt 100kg/Pr 460mm Brw

  • Product SKU: 287.48.129
  • Availability: In Stock
£49.92

Price inc. VAT

£49.92
Hurry! only 7 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
  • Finish: Brown coated

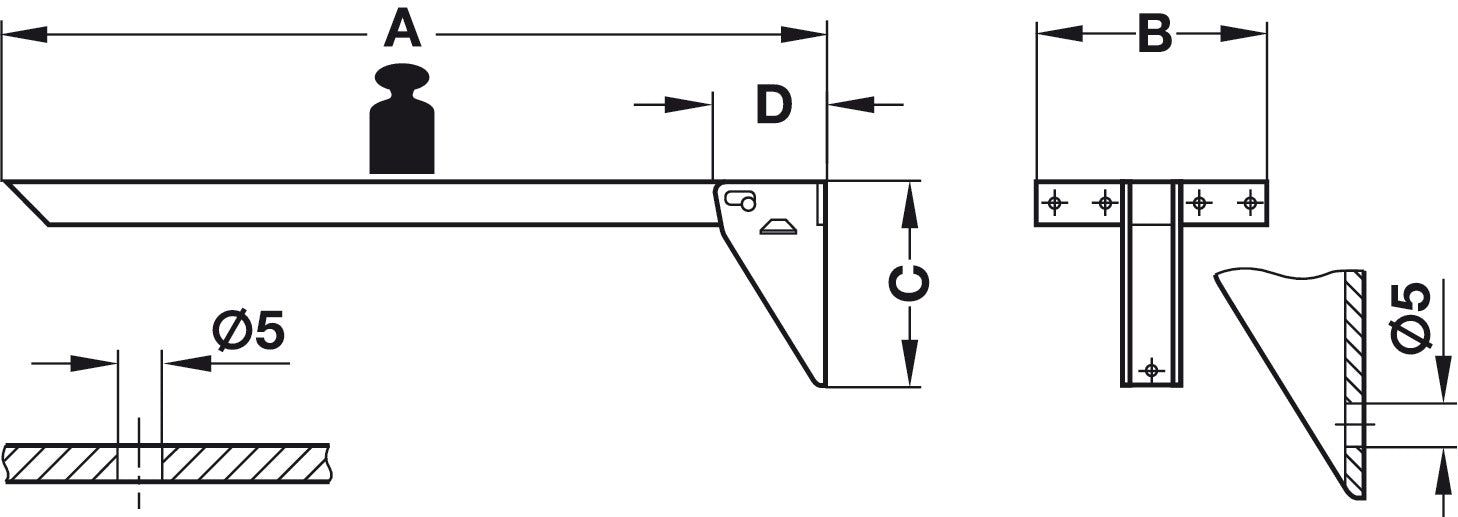

  • Dim. B: 140 mm
  • Dim. C: 120 mm
  • Application: Suitable for work surfaces and benches
  • Load bearing capacity: 50 kg per pairtested to DIN EN 16337:2013-08 with 2.5 kg plate for impact test, i.e. 100 kg load bearing capacity with surface load and 2 supports

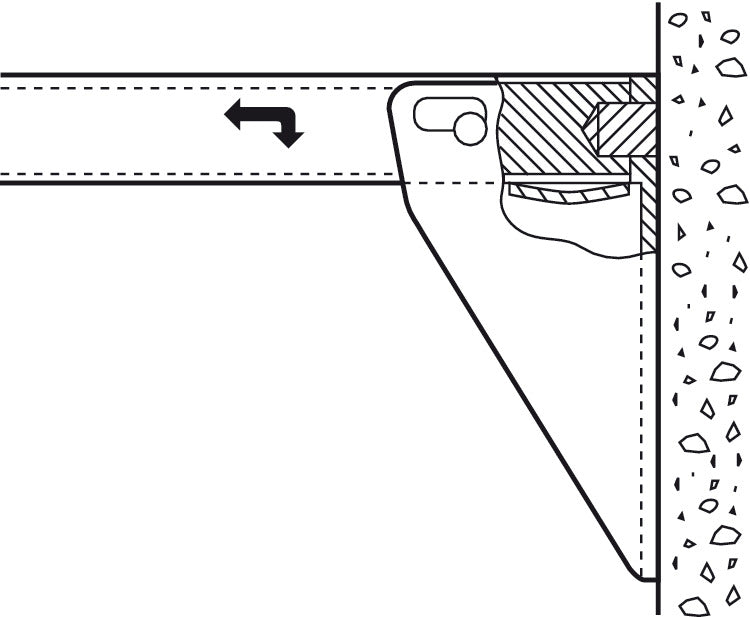

  • Adjustment facility: To raise: Bring the supporting arm upwards to horizontal position. Press backwards to lock the supporting arm in the pivot apertureTo fold down: Slightly raise the arm, the bolts in the pivot aperture unlock. The arm is pulled forward (approx. 10 mm) this disengages the locking pin. Fold down
  • Installation: Screw fixing
  • Material: Steel
  • Finish: Brown coated

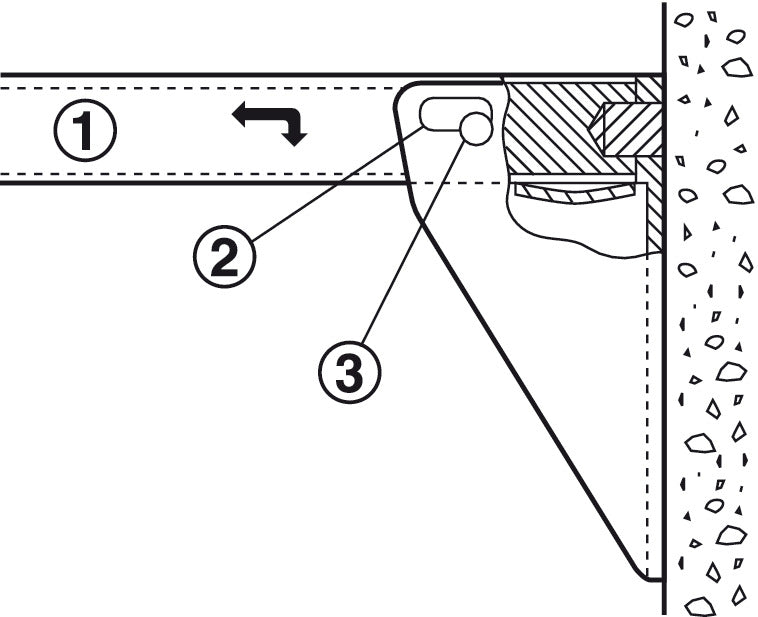

  • Functionality: ¬¨¬®‚Äö√тĆ\n ¬¨¬®‚Äö√тĆ\n ¬¨¬®‚Äö√тĆ\n ¬¨¬®‚Äö√тĆ\n (1) Folding support arm(2) Pivot aperture(3) Locking pinTo raise bracket lift support arm and push in.To fold down bracket lift support arm and pull forward.
