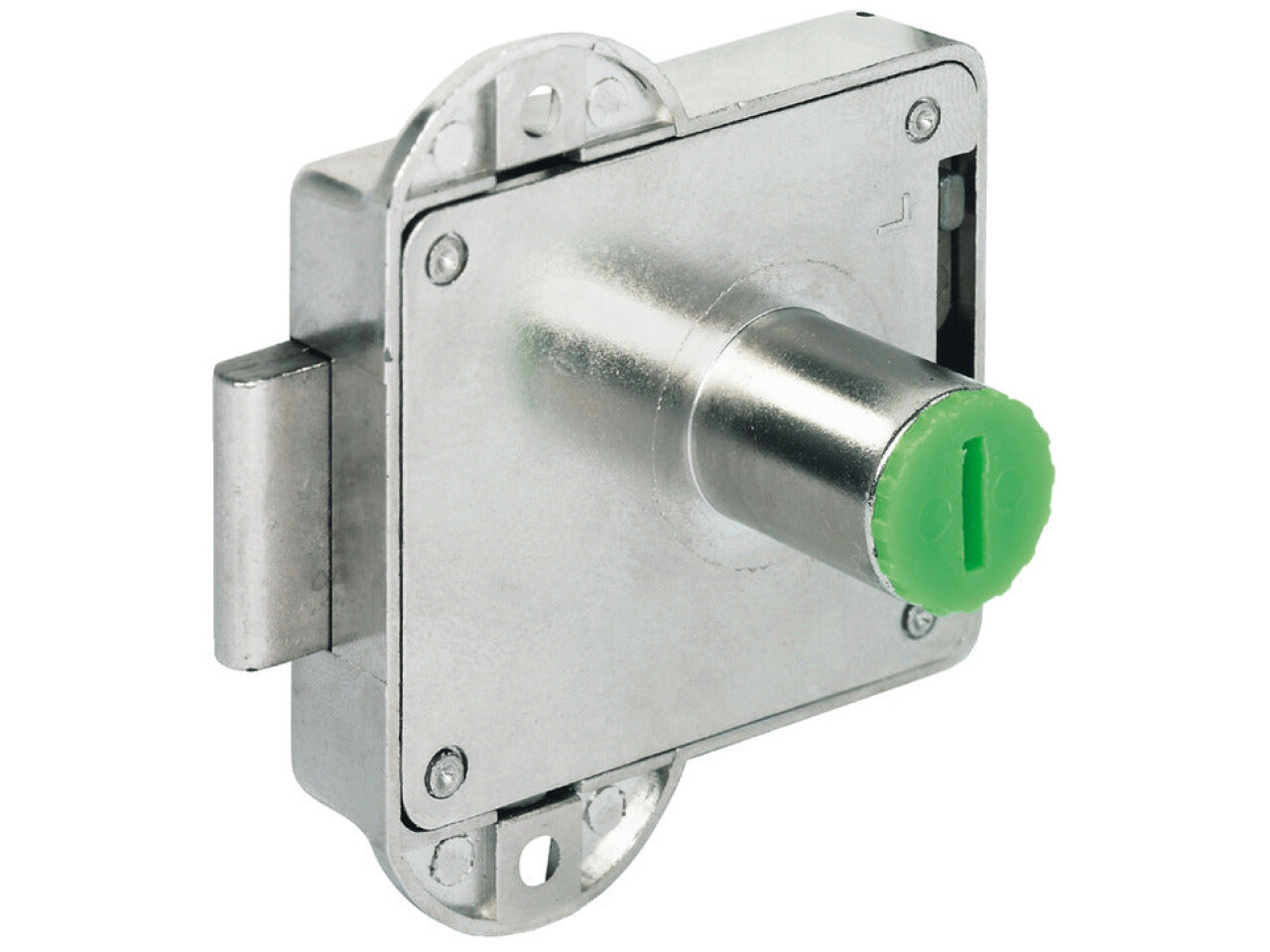

Symo3000 Std Nova Lockcase 40/8mm NP
Rated 3.5/5 based on 11 customer reviews
Hafele

Symo3000 Std Nova Lockcase 40/8mm NP

  • Product SKU: 224.65.600
  • Availability: In Stock
£6.95

Price inc. VAT

£6.95
Hurry! only 10 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
  • Installation: For screw fixing
  • Mounting: Left hand or right hand
  • Application: For continuous profile rod  6 mm or 8 mm. For cylinder cores that are inserted from the front on site
  • Material: Zinc alloy
  • Finish: Nickel plated

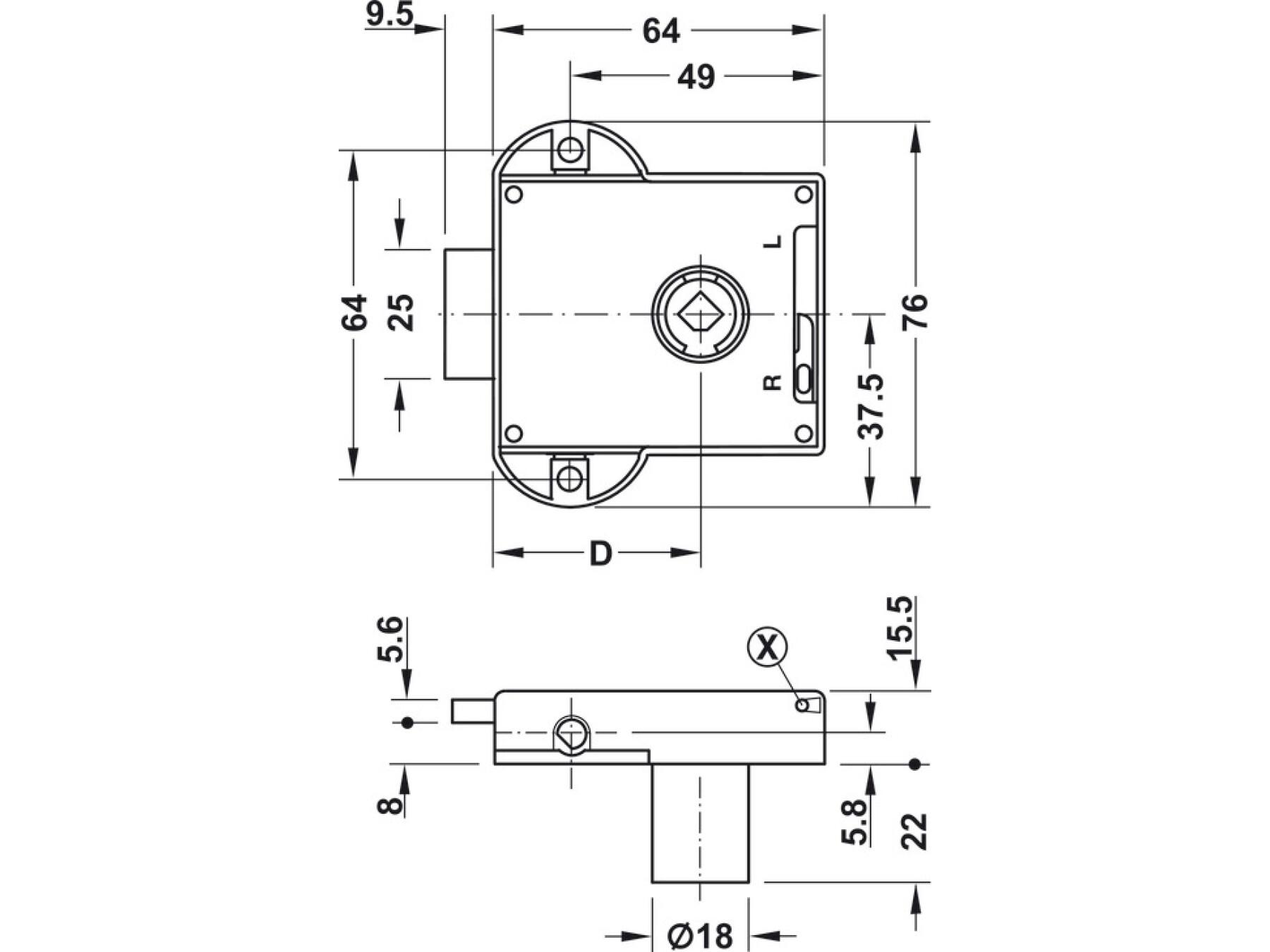

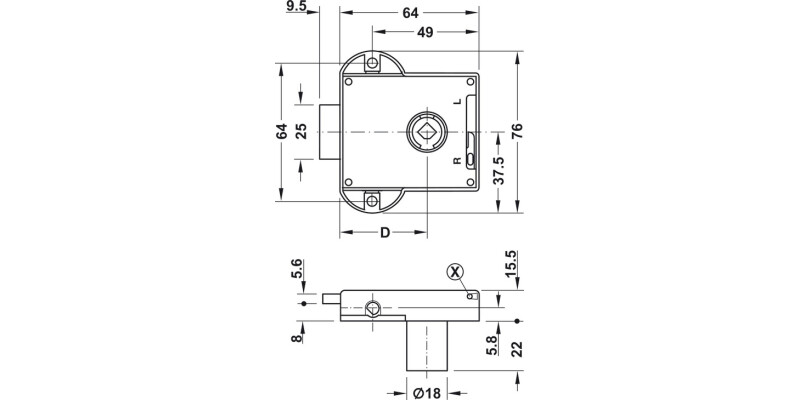

  • Backset D: 40 mm
  • Cylinder housing length: 22 mm
  • Installation: For screw fixing
  • Installation: Please consider that the extending rods must be cut to required size when designing the cabinet and when choosing the accessories for the espagnolette lock: With given internal cabinet height  and when mounting the espagnolette lock in the centre, the upper rod dimension is  and the lower rod dimension is . Centre of lock case 25 mm. Due to the three different backset (15, 25 and 40mm), identical gap sizes can be produced for corner cabinets and rows of cabinets with the same drilling pattern. Note: Standard Nova, backset 40mm is prepared for continuous profile rods.
  • Order reference: Order cylinder rosette and Hospa Ø 3.0 mm screws separately
