Spider Cabinet Hanger Conc Dowel SZP

£2.30

Price inc. VAT

£2.30

Ask about this product

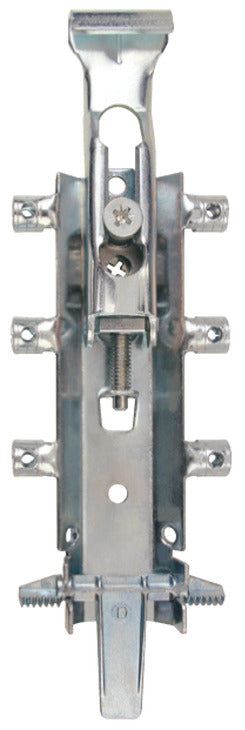

Cabinet hanger concealed behind rear panel, only cover cap visible inside the cabinet

Finish: Zinc plated
Application: For hanging wall units

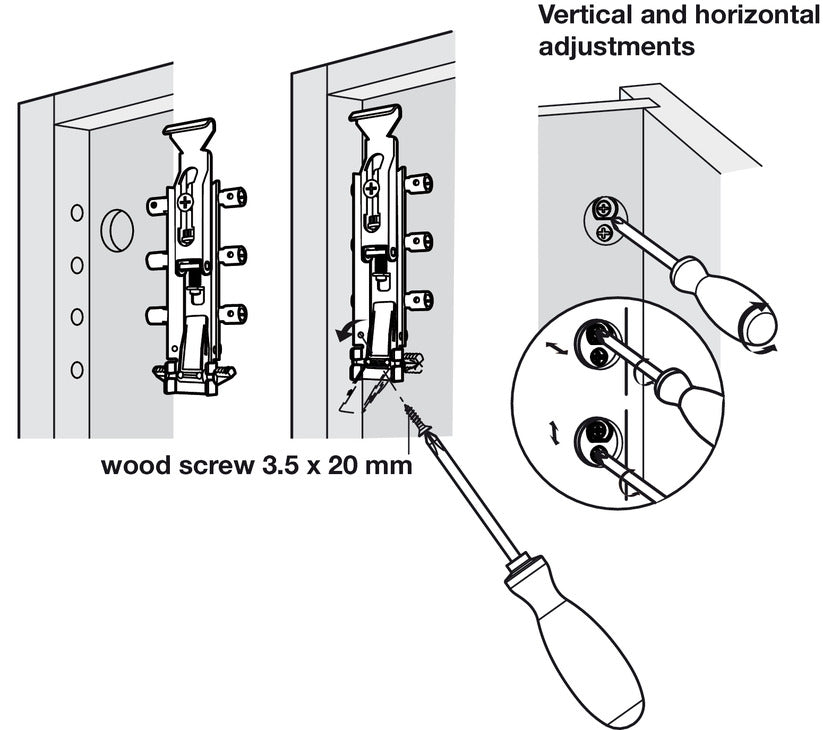

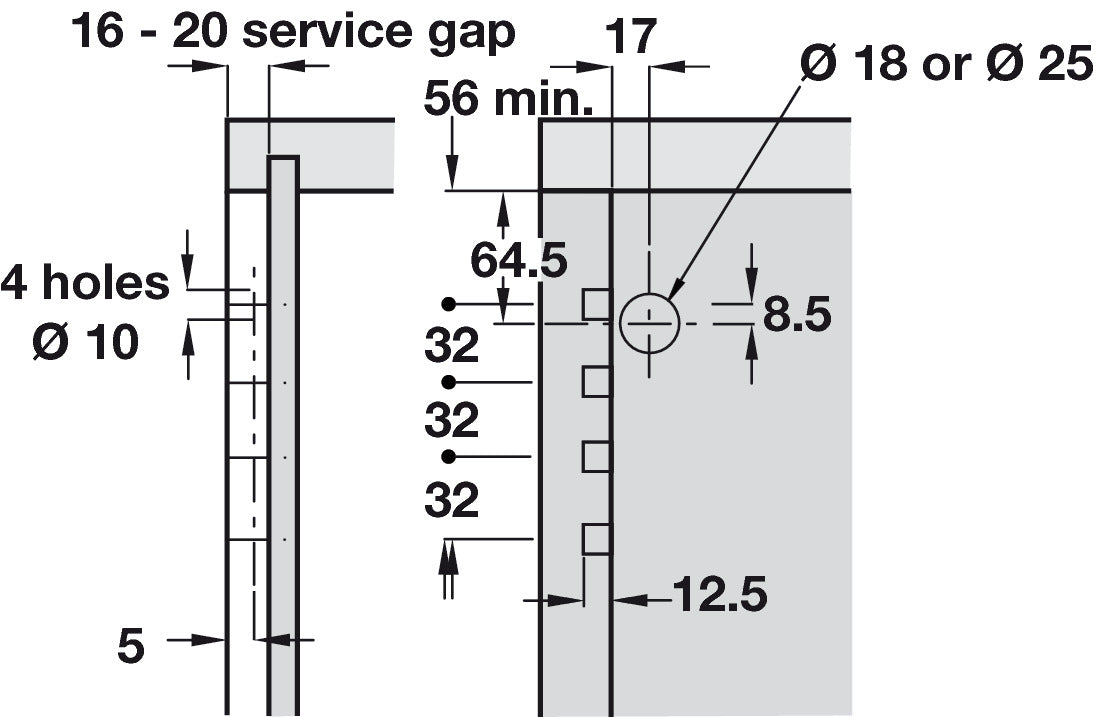

Installation: Dowels/Screw mounting: Slots into side cabinet by making four face borings and secured in position by rotating the locking pin with ridges 180° A 3.5 x 20 mm lateral wood screw permanently secures the cabinet hanger in place (not provided)
Load bearing capacity: 130 kg per pair (Load carrying capacity applies to 2 cabinet hangers bearing an evenly distributed load in accordance with regulation DIN 68840)
Adjustment facility: Two-way adjustment: Vertical adjustment: 0-18 mm (Vertical adjustments through front gear cross socket interconnected to the vertical bolt, which reduces the cabinet adjustment effort )Horizontal adjustment: 11-17 mm
Material: Steel
Note: Cabinet hangers should only be adjusted with a hand tool and not a power tool
Order reference: Wall plates and cover caps must be ordered separately
