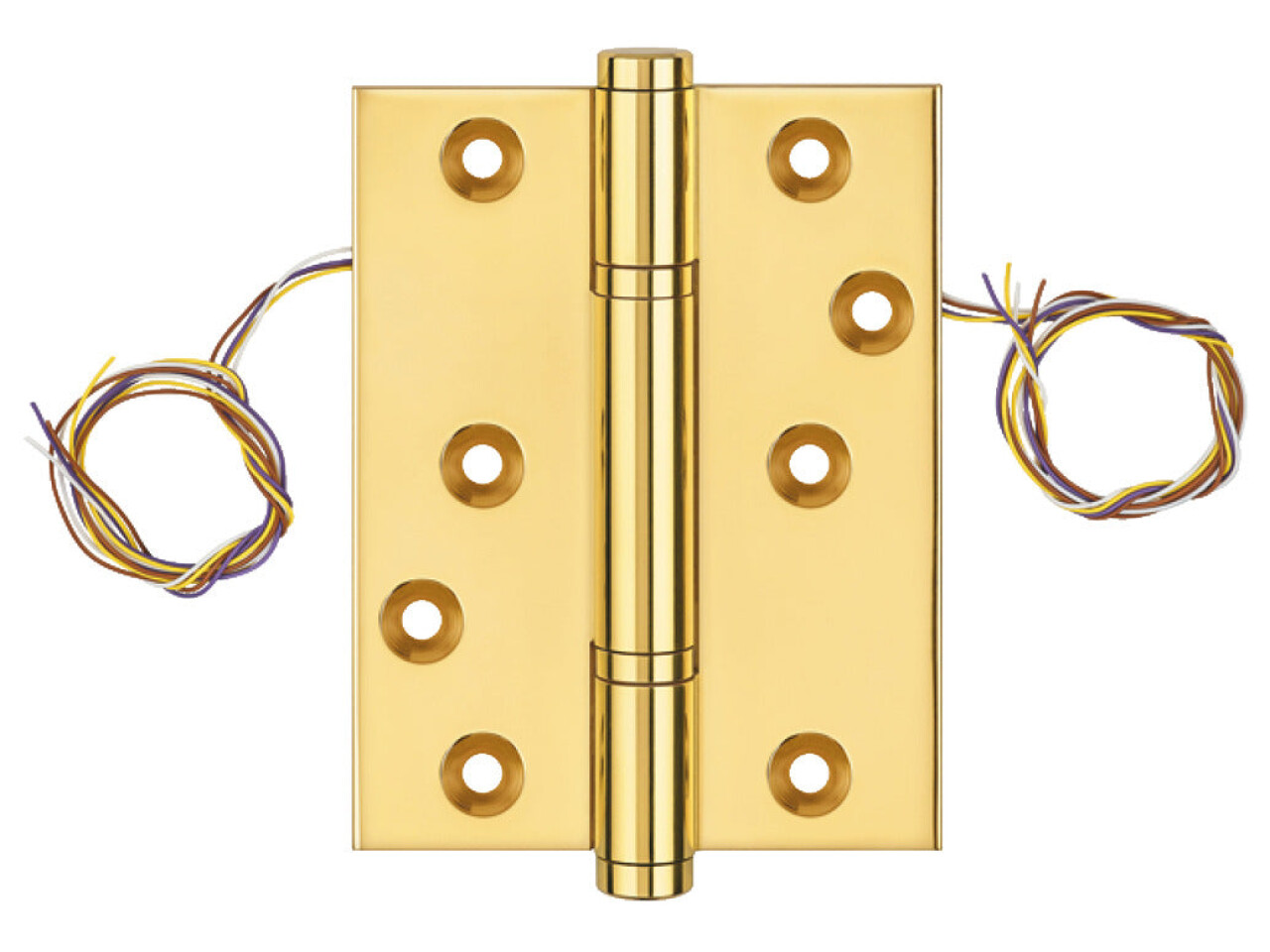

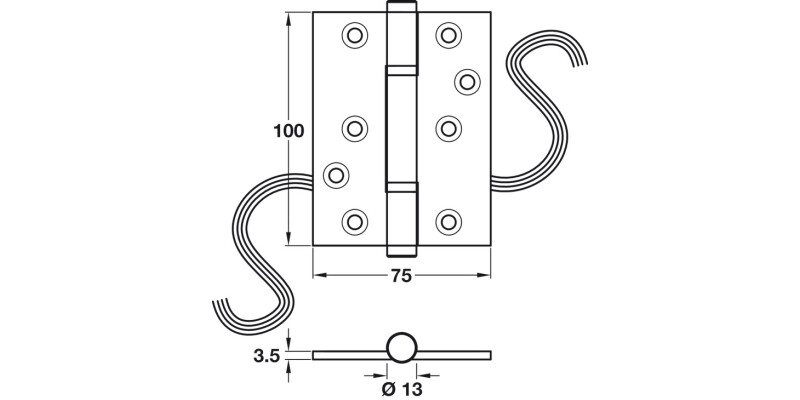

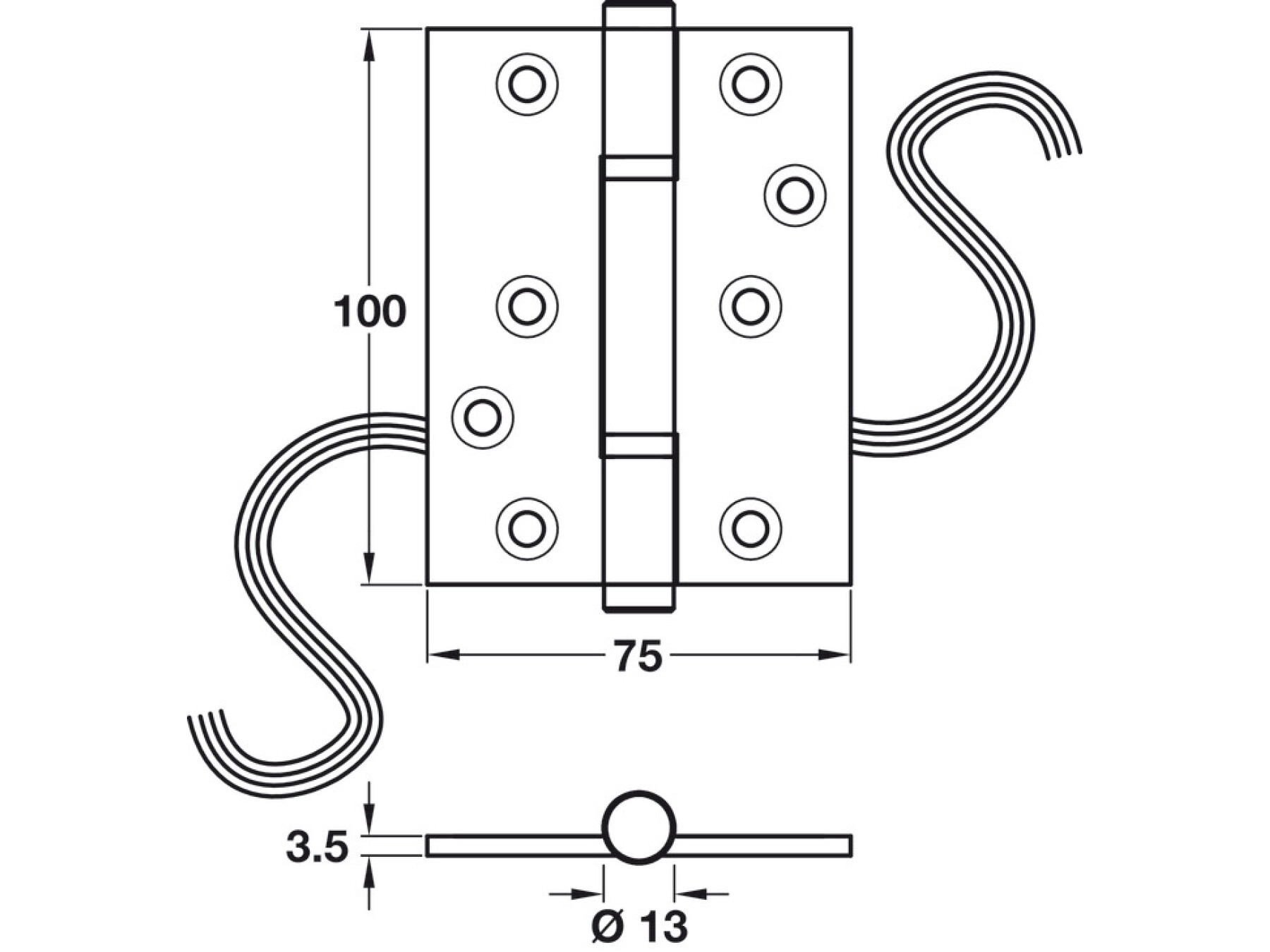

Conductor Hinge C4 100x75mm Brs Im Brz
Part Number: 926.01.926
Imitation bronze
Price:
£500.95
Per Item
Four wire facilityLow voltage, normally 24V @ 24 amps Area of application For use when power supply needs to be... Read More
Product Information
Product Details
Four wire facility
Low voltage, normally 24V @ 24 amps
Area of application
For use when power supply needs to be transferred from frame to door
Part load bearing, for centre position only and to be used with outer pair of compatible hinges
Specifications
Material
Brass
Knuckle diameter
13.00 mm
Flange thickness
3.50 mm
Model series
Butt hinge
Supplied with
Fixings
