Mec Codelock HD Fnt+Bck Plt Tub Latch

For use with internal or external doorsLever handle lock for doors hung on the left or rightCode chamber requires that the lever is rotated 45° to re-set the lock for the next user codeVersions:For use with existing mortice latch or lockFor use with existing mortice latch or lock with either a fixing hole 22 mm below the spindle follower or two horizontal holes either side of the spindle follower (38 mm centres)When using the front and back plates only, please test your selected lock-case to ensure that the latch retracts fully from the code side without too much resistance. Some lock cases have a highly sprung latch follower which can defeat the clutch on this lockWith tubular mortice latch included

• Material: Steel
• Finish: Brushed

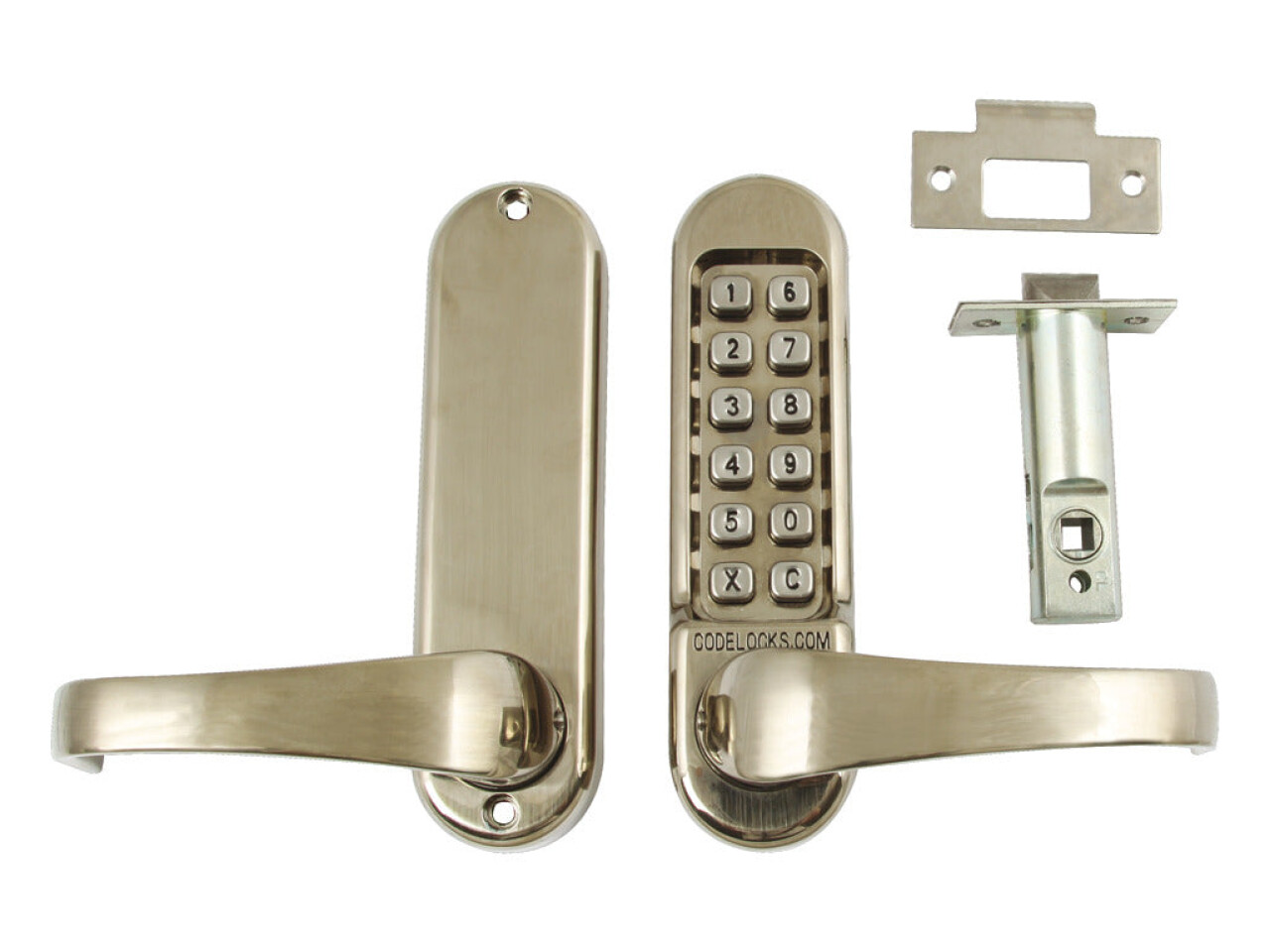

• Supplied with: For use with existing mortice latch or lock version: 1x mechanical front access device, 1x rear access device,3x spindleWith tubular mortice latch version: 1x mechanical front access device, 1x rear access device, 1x tubular mortice latch, 1x strike plate, 3x spindles
