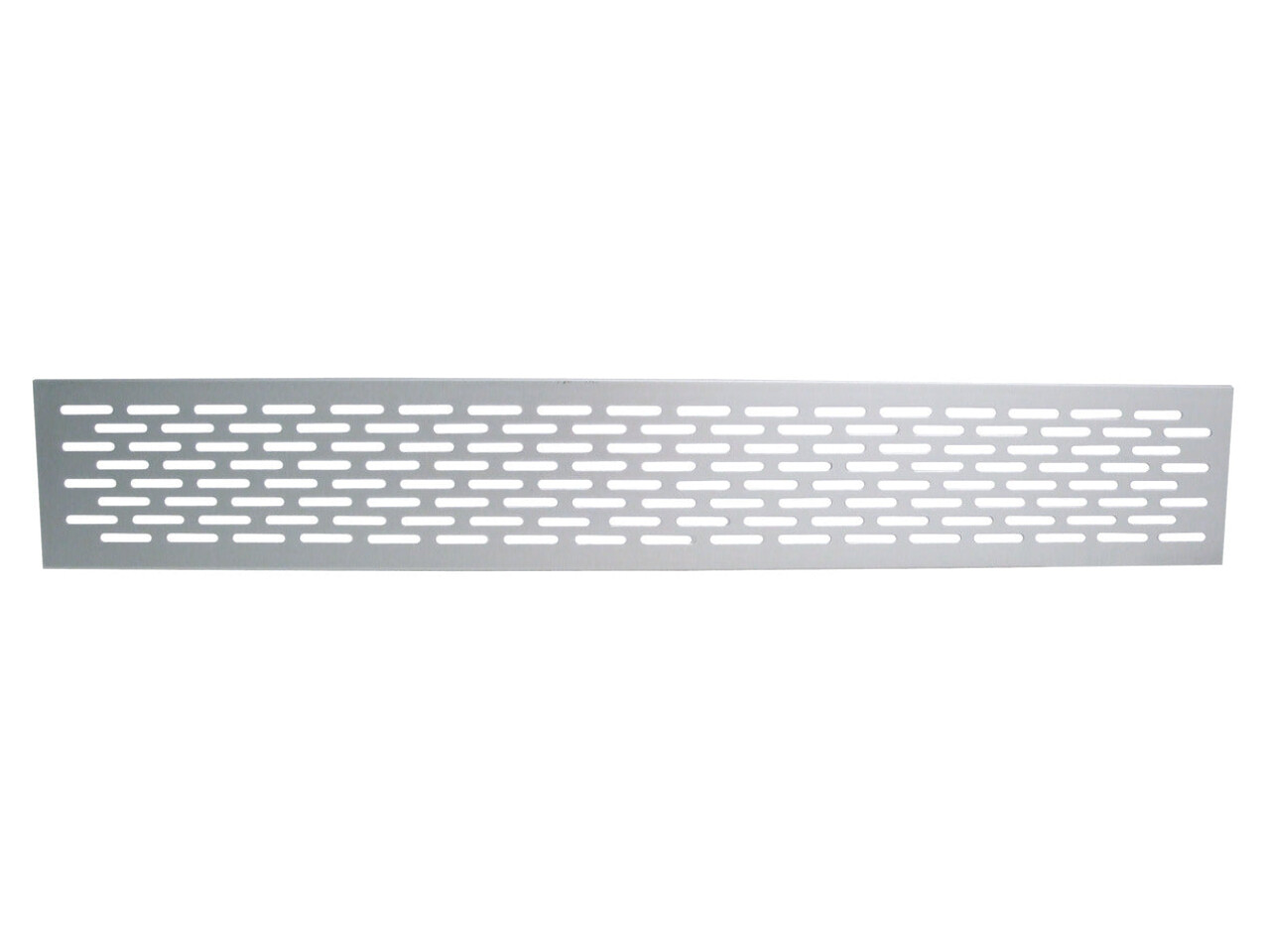

Vent Grille RM 450x70mm AA M.Slv
Part Number: 575.02.931
Ventilation area 81.22 cm2, length 450 mm, recessed length 424 mm
Price:
£10.00
Per Item
Technical data Dim. (L x W) 450 x 70 mm Cut-out (L x W) 424 x 58 mm Apertures (L x W) 20 x 3 mm... Read More
Product Information
Product Details

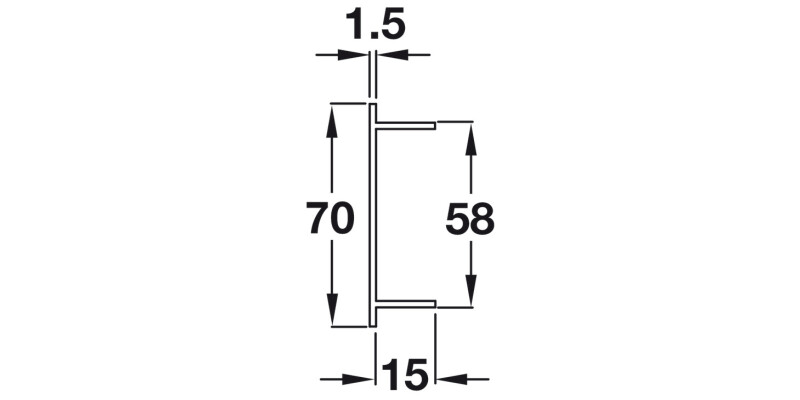

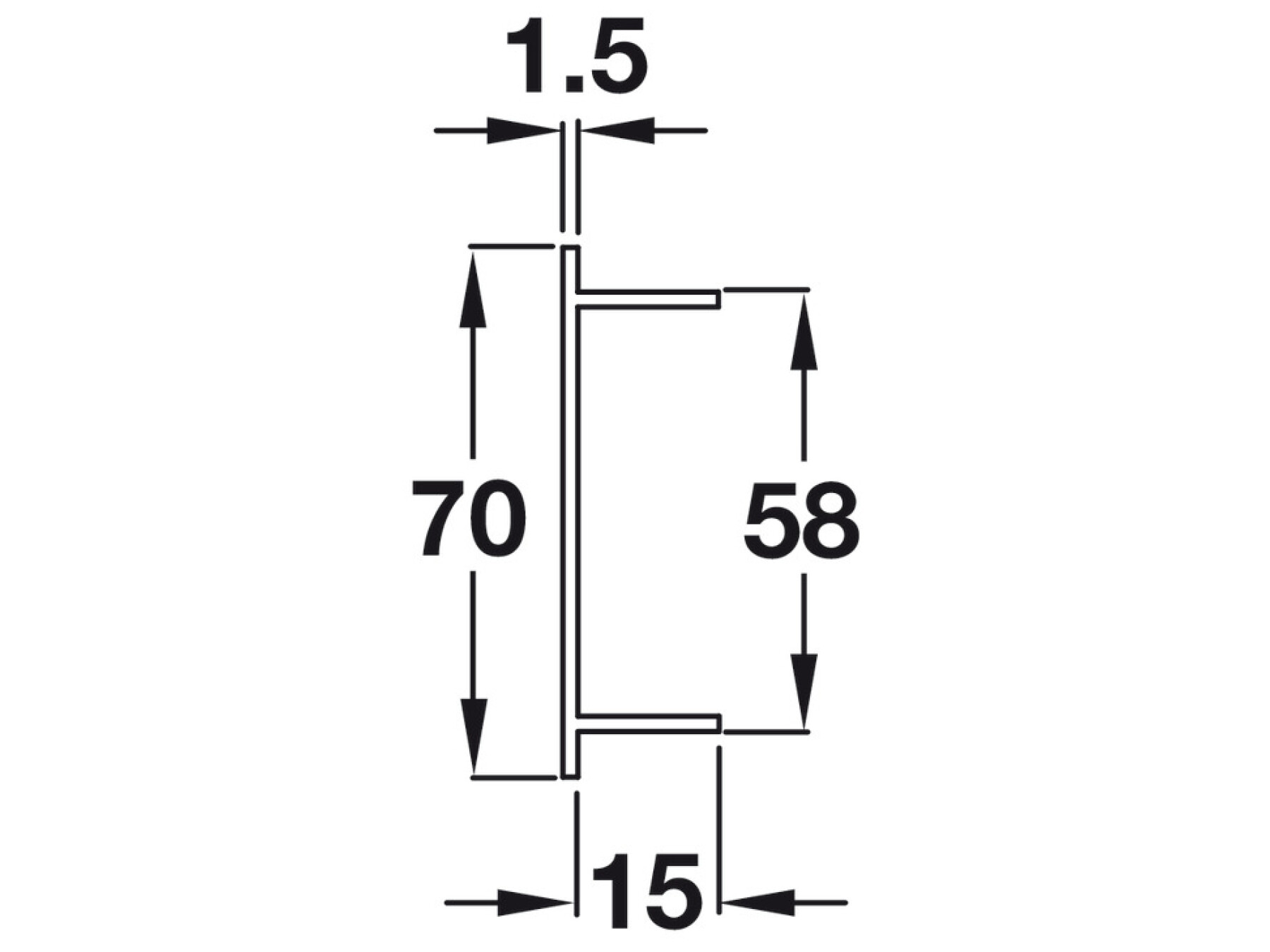

| Technical data | |
|---|---|
| Dim. (L x W) | 450 x 70 mm |
| Cut-out (L x W) | 424 x 58 mm |
| Apertures (L x W) | 20 x 3 mm |
| Ventilation Area | 81.22 cm² |
Specifications
Material
Aluminium
Dim. (L x W)
450 x 70 mm
Cut-out (L x W)
424 x 58 mm
Colour/finish
matt, anodized
Ventilation Area
81.22 cm²
Version
Front edges bevelled all round
With 17 x 3 oval slots arranged in an offset pattern
Installation
For press fitting and screw mounting
