NovaPro Scala InDrw Front 186/900mm Slv
Part Number: 551.89.948
To create Nova Pro Scala internal drawers, For cabinet width 900 mm, panel width 854 mm, silver
Price:
£65.11
Per Item
Front panel profile for Nova Pro Scala 90 mm high drawer sides with rectangular rails Order reference Front... Read More
Product Information
Product Details
Front panel profile for Nova Pro Scala 90 mm high drawer sides with rectangular rails
Order reference
Front base connector H to be ordered separately for internal drawers and pull outs with width 600 mm and above
Drawer set and rectangular rails to be ordered separately
Supplied with

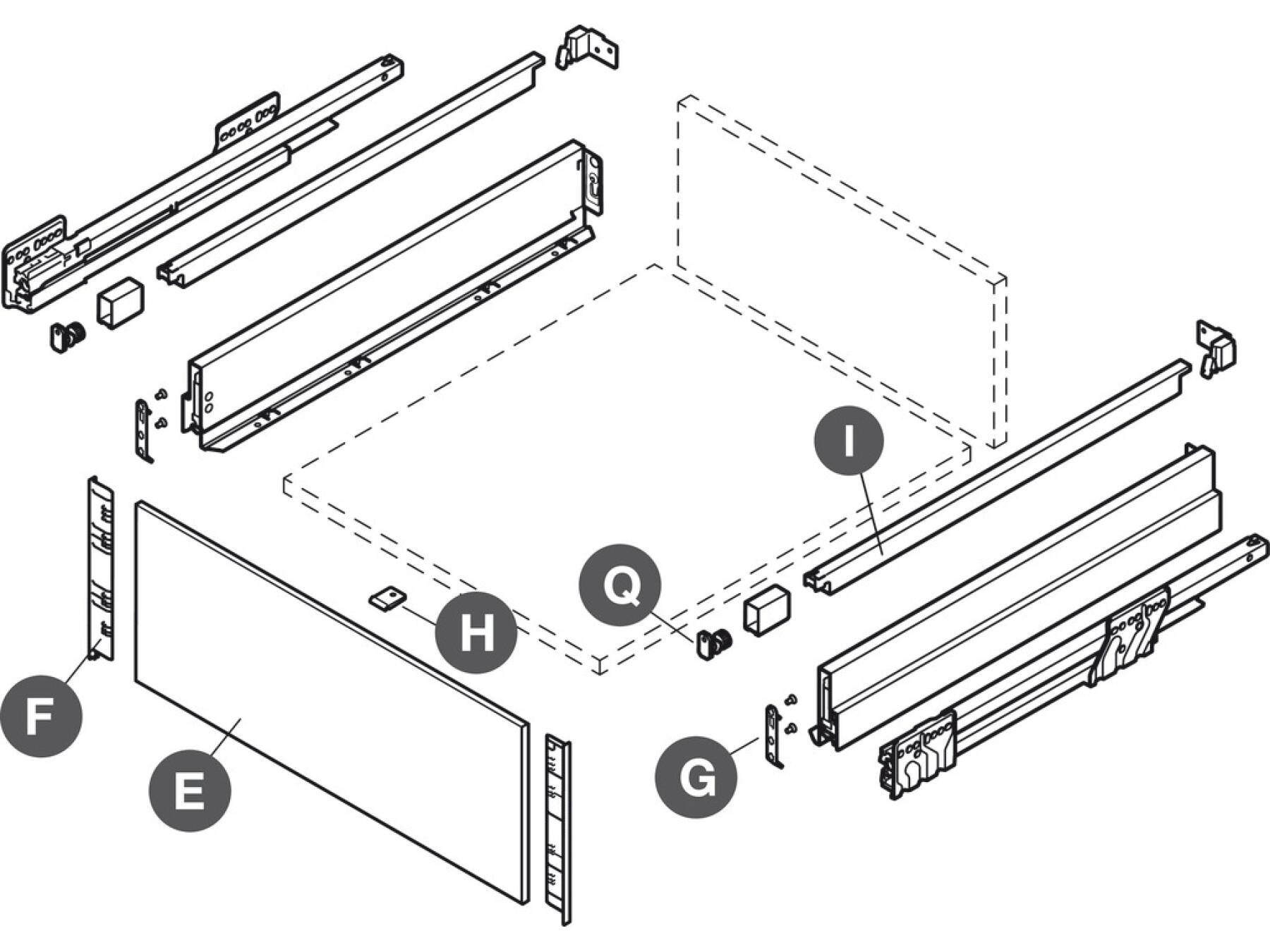

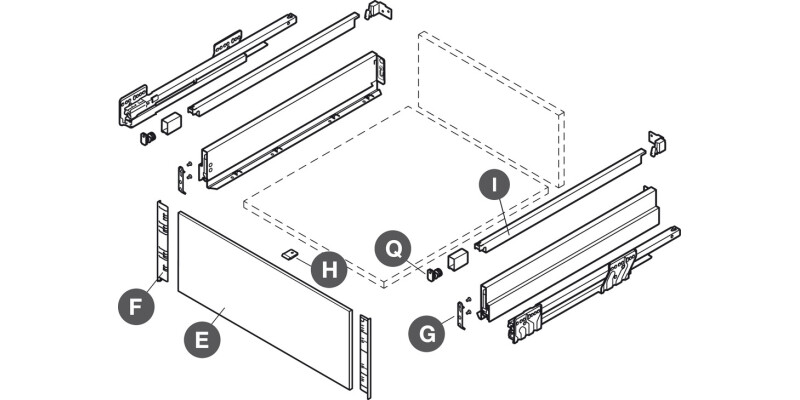

Set includes:
E 1 pc internal panel, 197 mm high x 8 mm thick
F 1 pair cover caps
G 2 pcs hooks for screw fixing
Q 2 pcs railing bracket for screw fixing
Specifications
Area of application
Nova Pro Scala internal drawers
Installation
Front fixing brackets - Screw fixing
