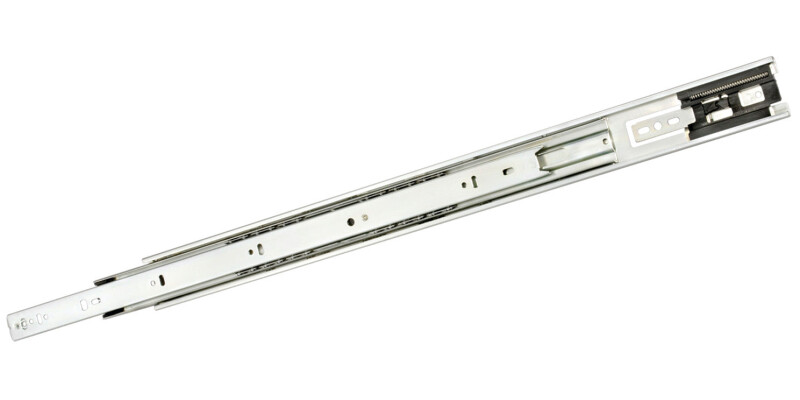

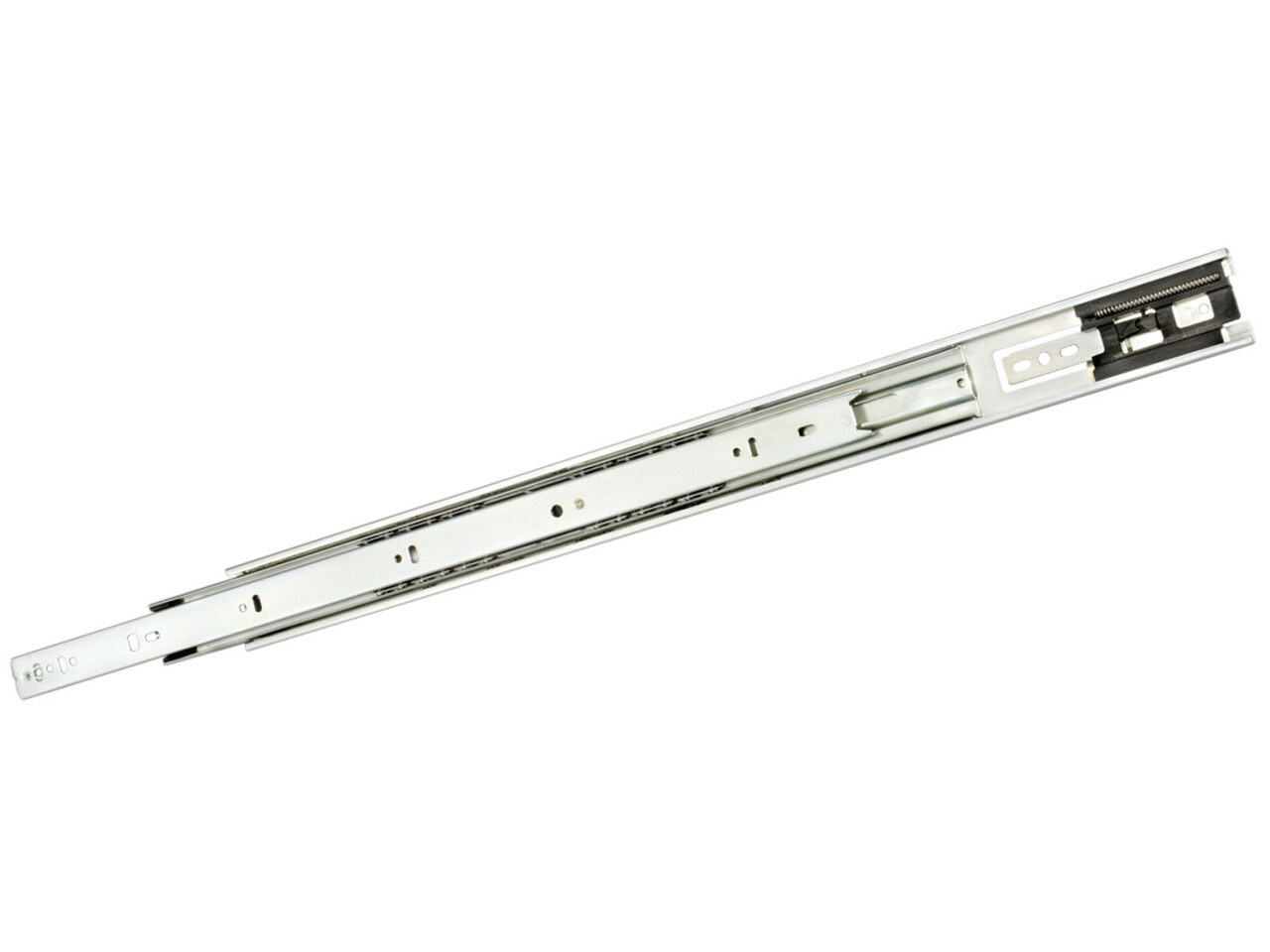

3832TR BB Drawer Runner Full 45kg 550mm Wht
Full extension, telescopic, side mountedPush on the drawer front to open or close the drawerLoad carrying... Read More
Product Details
Full extension, telescopic, side mounted

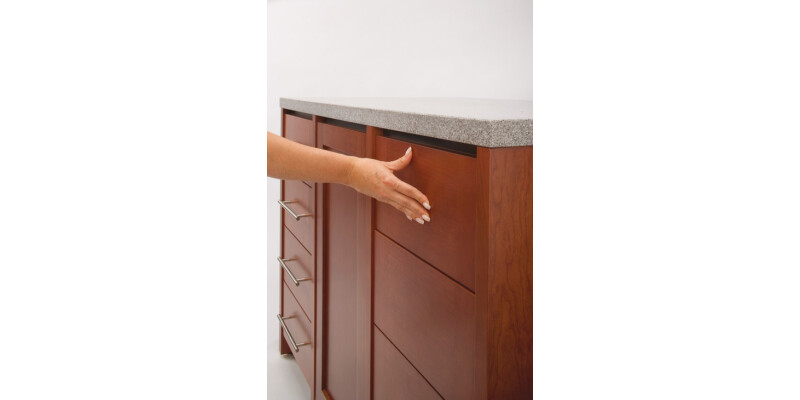

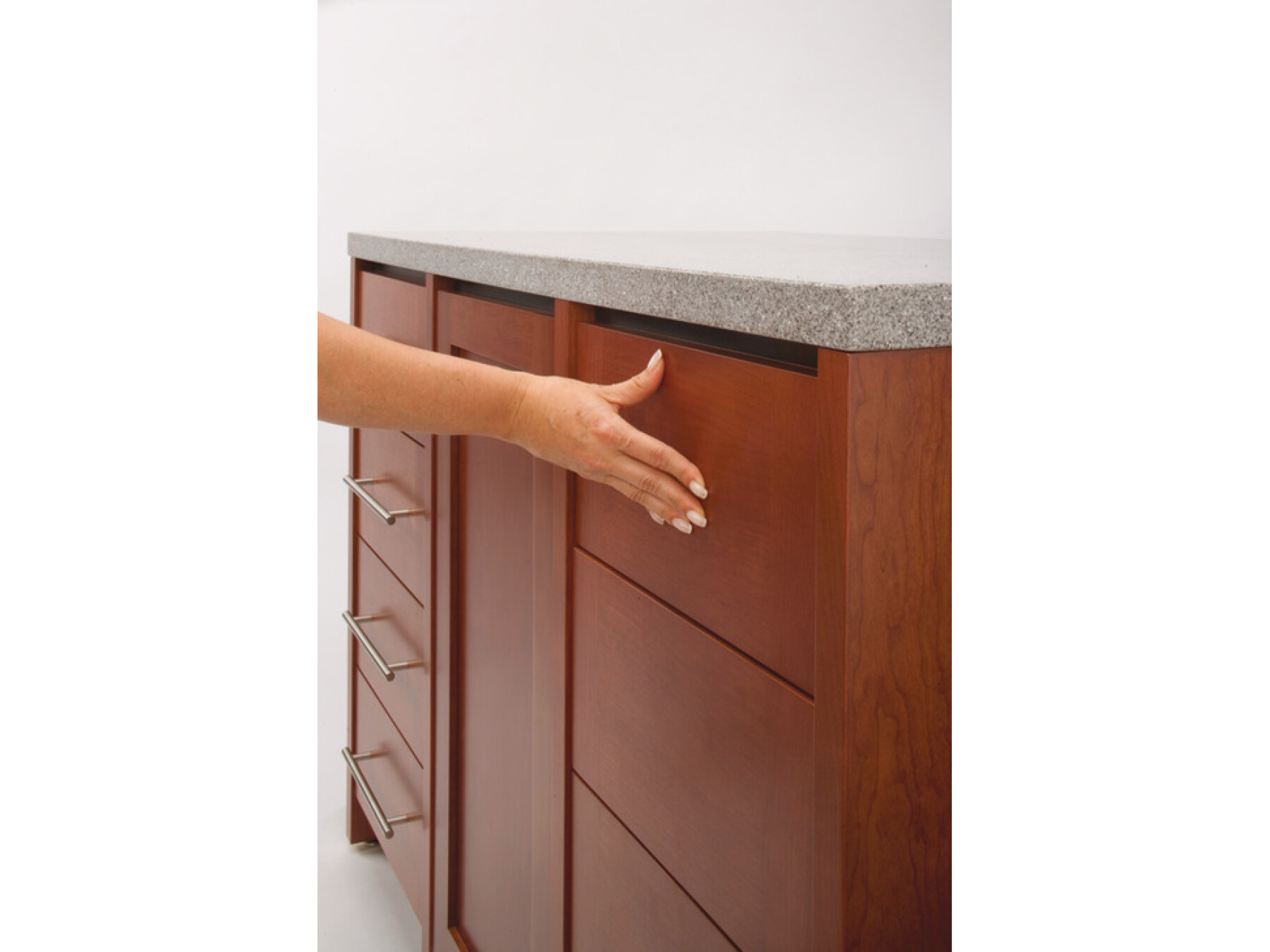

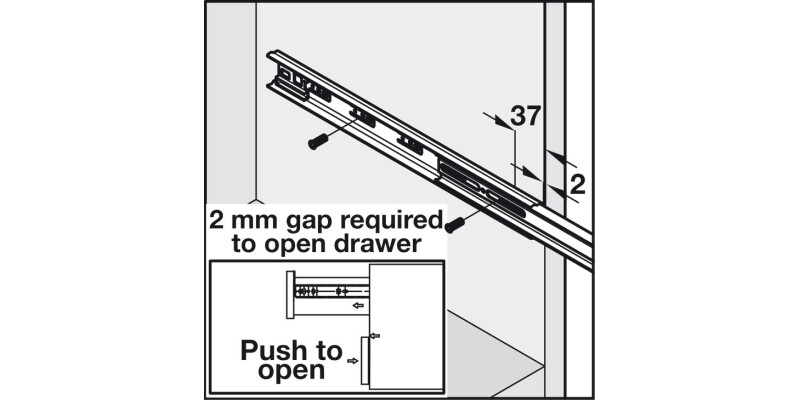

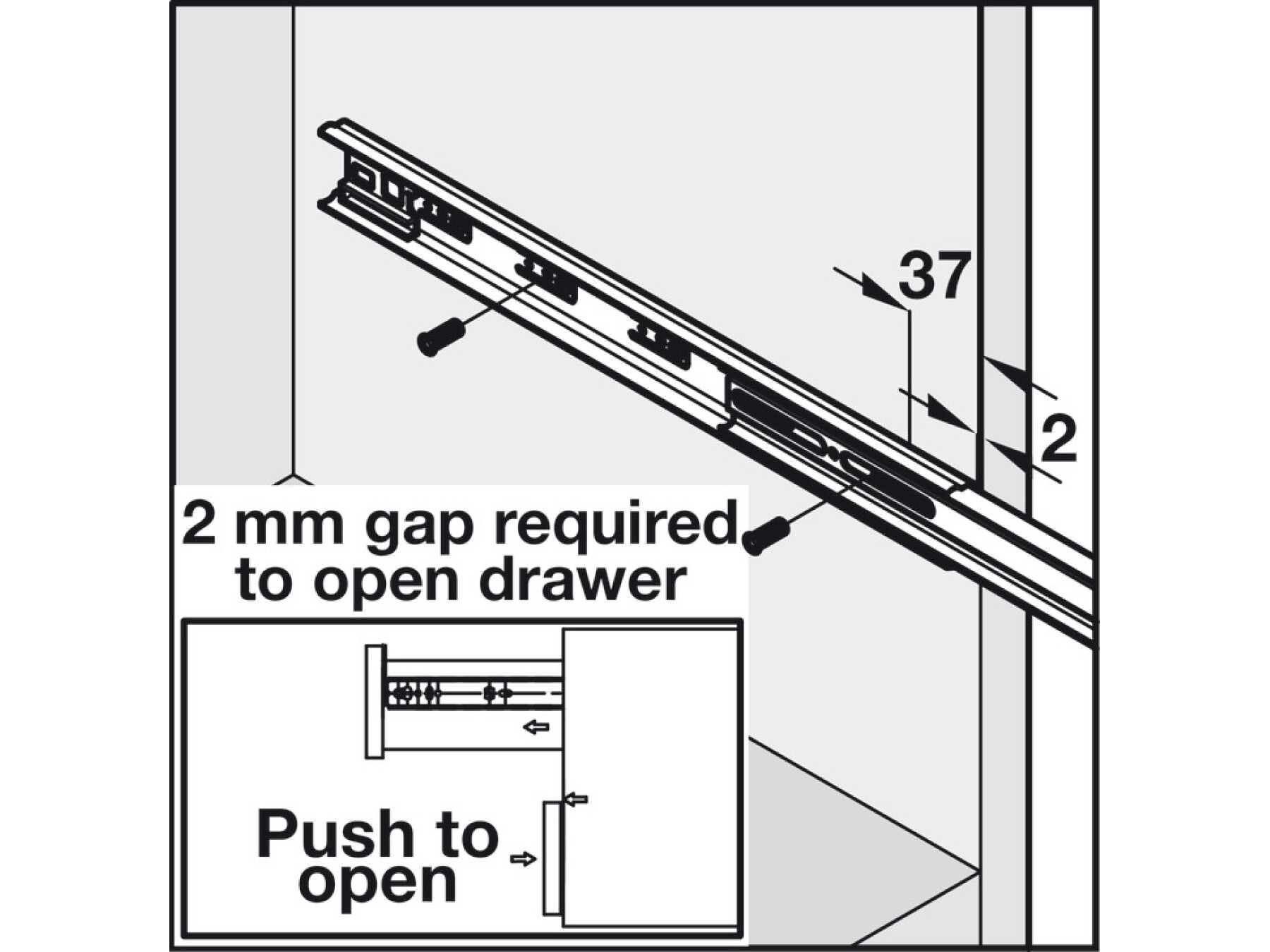

Push on the drawer front to open or close the drawer
Load carrying capacity up to 45 kg (see below for individual runner capacity)
5 kg activation force
Opening mechanism activated by travel inward

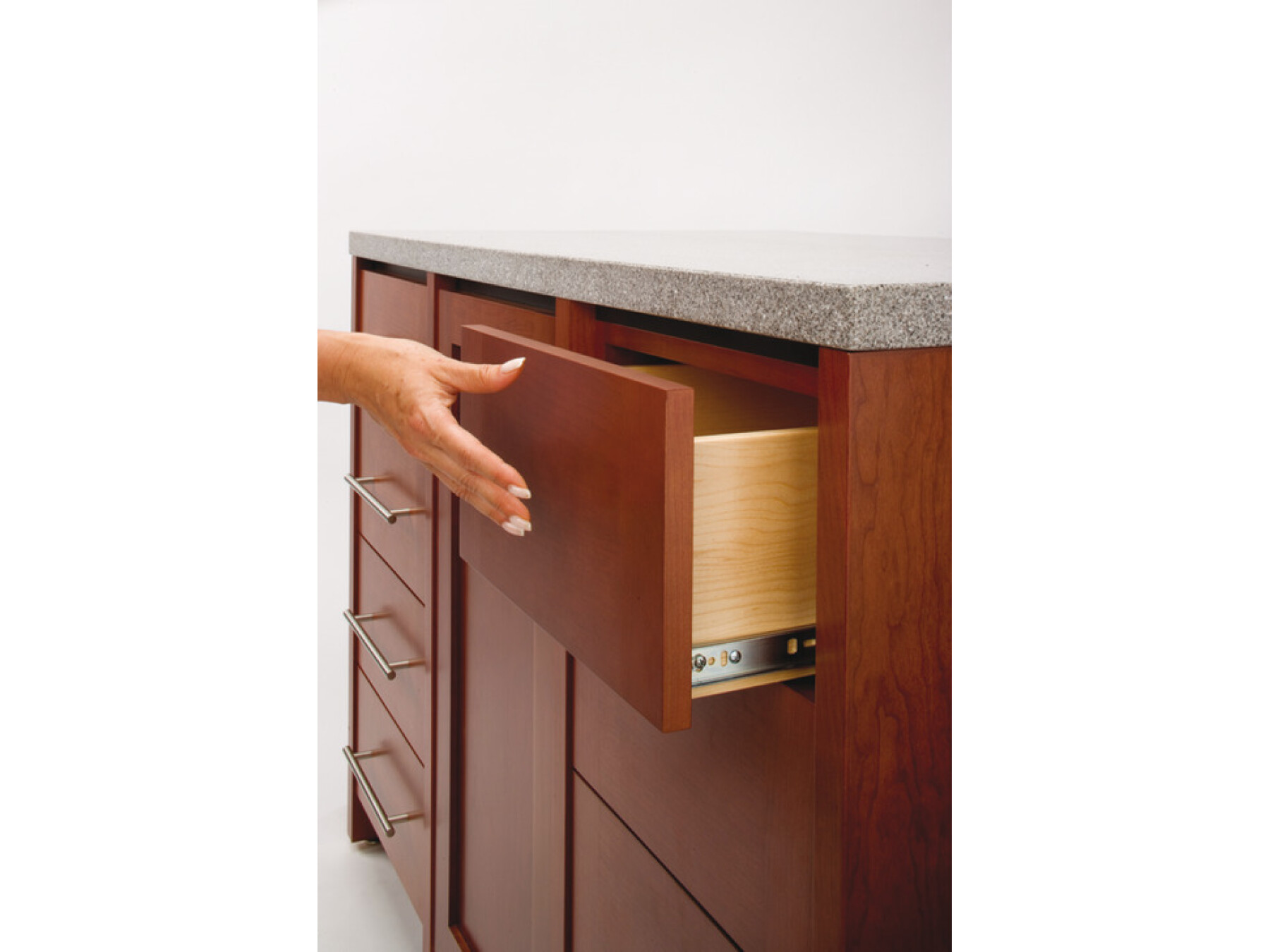

Propels drawers open approximately 50-125 mm from the closed position
Cam drawer adjust feature
Hold-in feature holds the closed drawer in

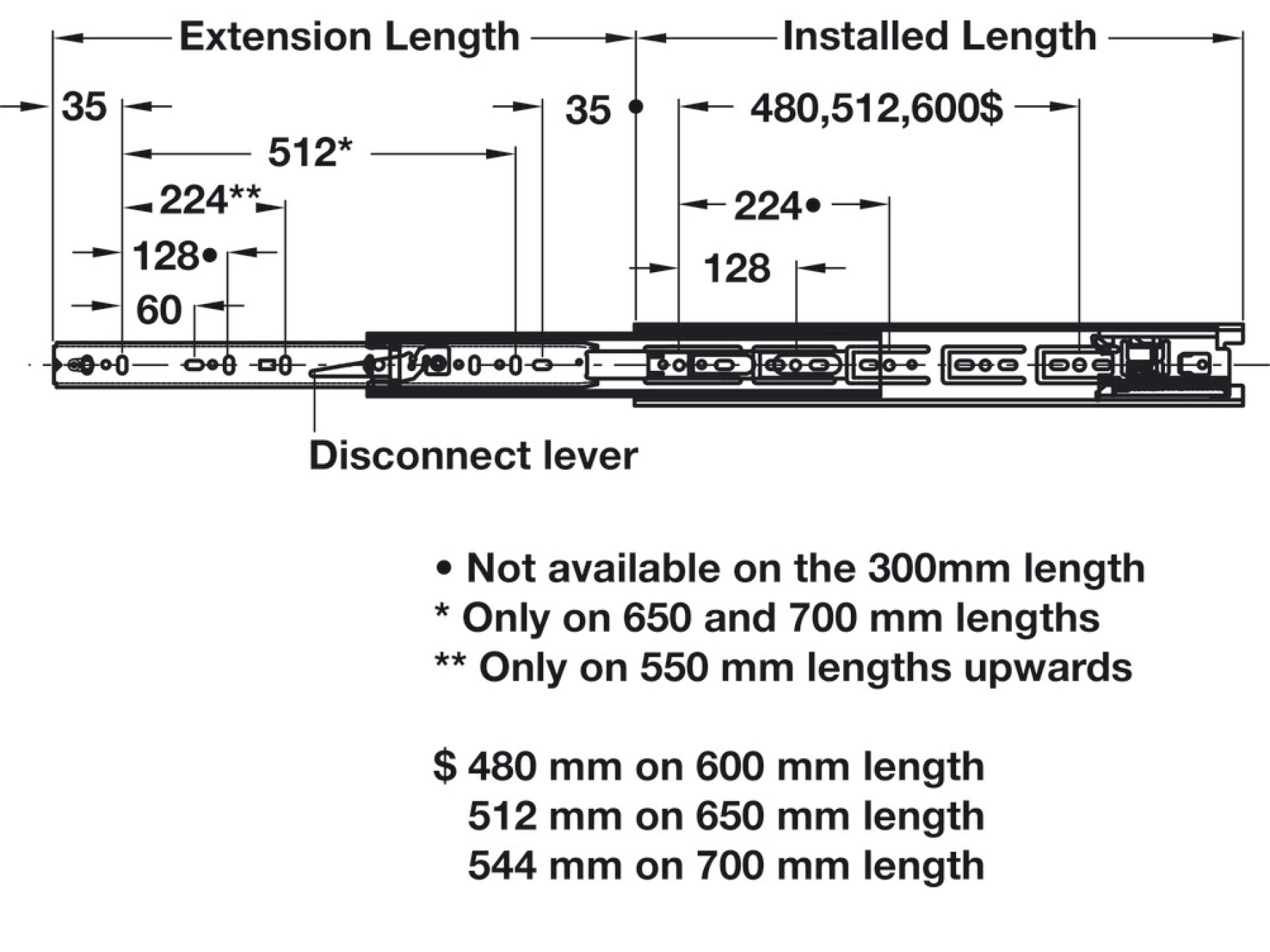

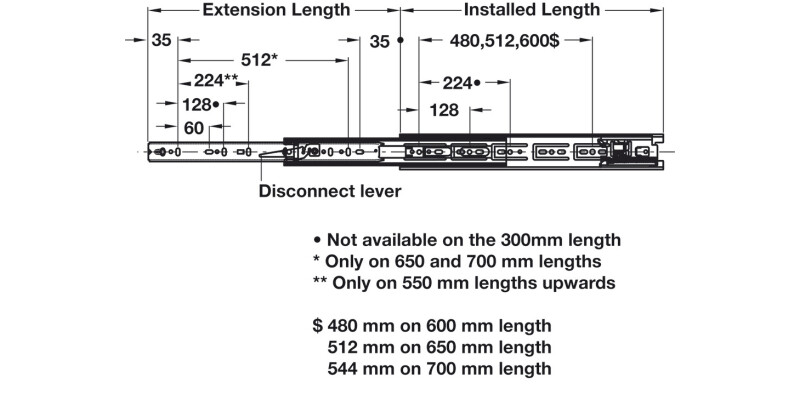

Front disconnect (by depressing lever) for drawer removal
Tested to 80,000 cycles

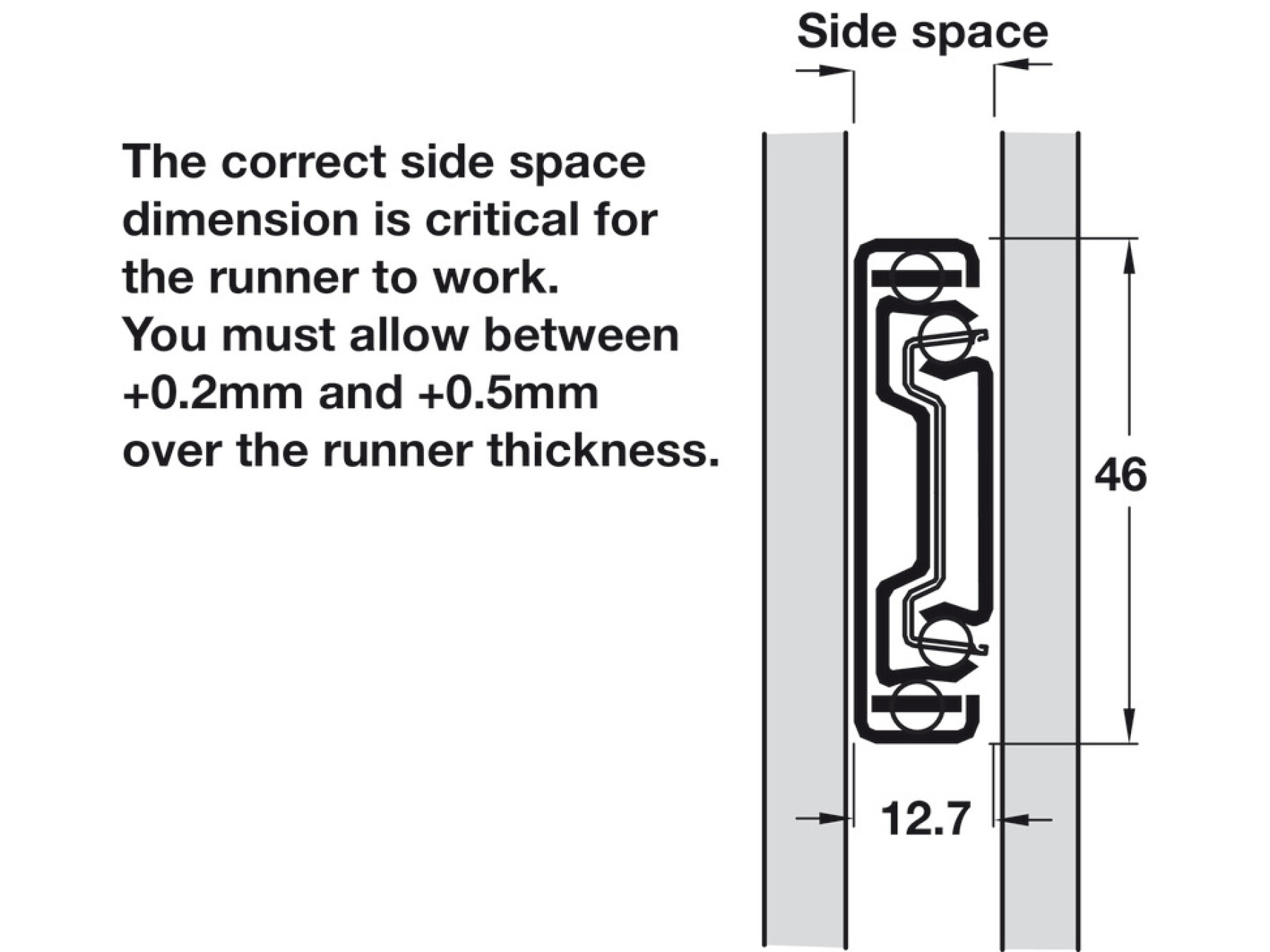

Please note maximum drawer width to be used
Not suitable for use with mounting brackets
Order reference
Order Hospa Ø 4.0 countersunk and Varianta Ø 5 cylinder head screws separately
Fixings: Max. head height 2.5 mm, Ø 9.6 mm
Please note maximum drawer width to be used
Specifications
Mounting
Side mounted
Holding function
Drawer removal
Material
Steel
Bearing
Installation
Side mounted
