Planofit Fitting Set White
Planofit adds rigidity to wooden sliding and hinged doors from 16 mm thick and prevents warping in either... Read More
Product Details
Planofit adds rigidity to wooden sliding and hinged doors from 16 mm thick and prevents warping in either direction
Ideal for large, heavy doors
Can also be used to straight doors that have warped over a period of time
Normally two straightening fittings are recommended per door panel
1. The threaded rod is inserted into the trim strip and 2 x U-washers and a hexagonal nut is attached to both sides of it
2. The pre-mounted rod is then inserted into the groove
3. The tensioners are inserted into the boss drilling job and fixed with screws
4. Screw fix the retaining plates
5. The door can now be aligned using the tensioners with an open ended SW10 wrench
6. Position the cover caps on the tensioners
Supplied with

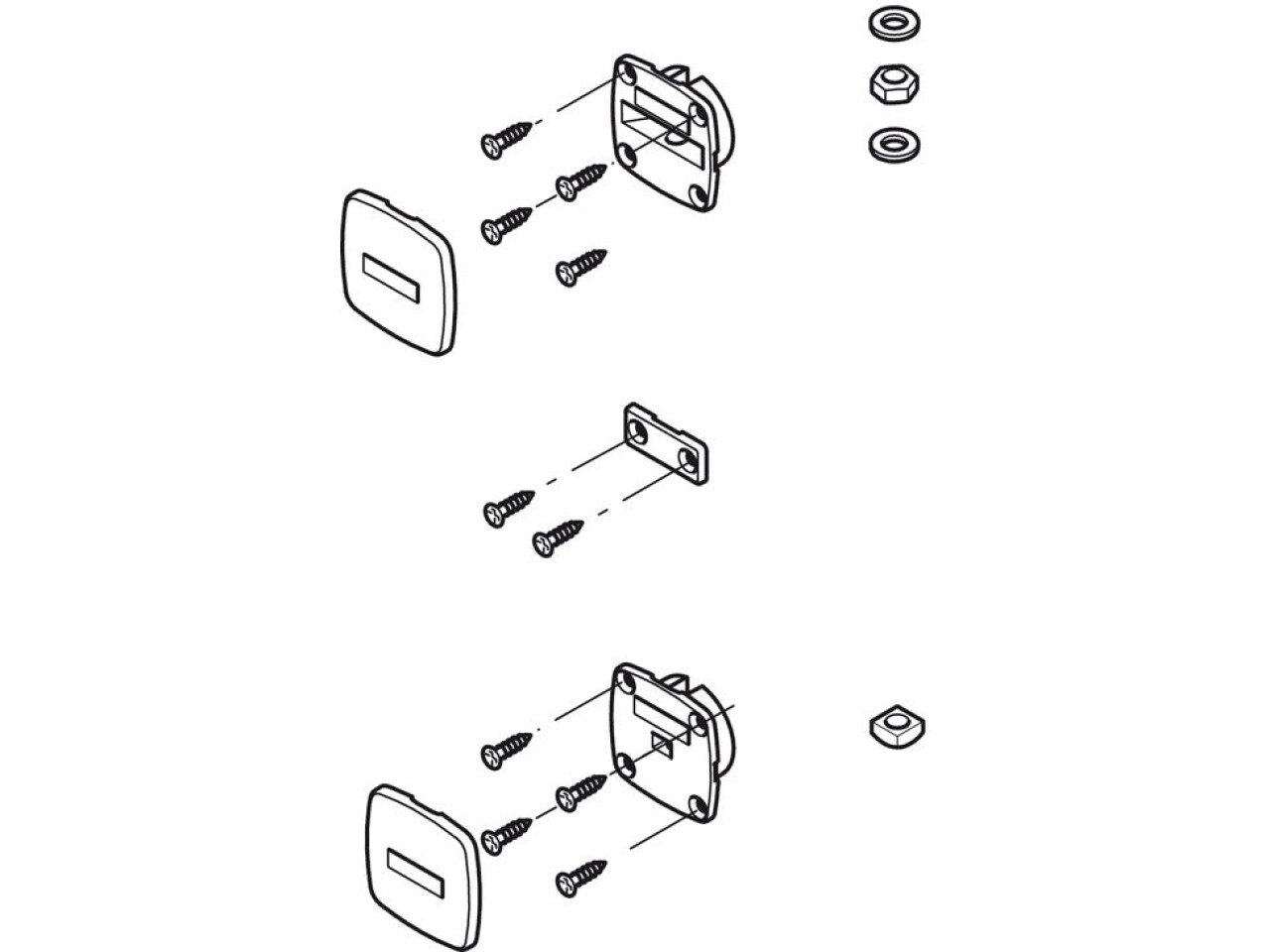

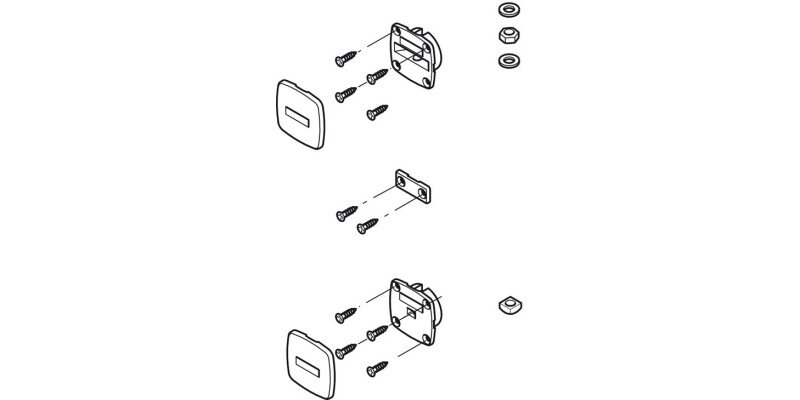

Set consists of 2 x tensioners, 1 x hexagonal nut, 2 x securing washers, 1 x square nut, 2 x cover caps for tensioners, 4 x retaining plates
Specifications
Area of application
For sliding doors
For door thickness
Material
Zinc alloy
Plastic
Installation
Clip fixing
Order reference
Threaded rod and trim strip set to be ordered separately
