Hawa Dorado IF Complete Set 3Door
Part Number: 406.70.123
Top hung system, 3 door set
Price:
£928.50
Per Item
Sliding door system for top quality joinery and furnitureRunning gear with back fixing plateTwo white plastic... Read More
Product Information
Product Details
Sliding door system for top quality joinery and furniture
Running gear with back fixing plate
Two white plastic friction bearing mounted tandem runner assemblies
Top track surface mounted
Supplied with

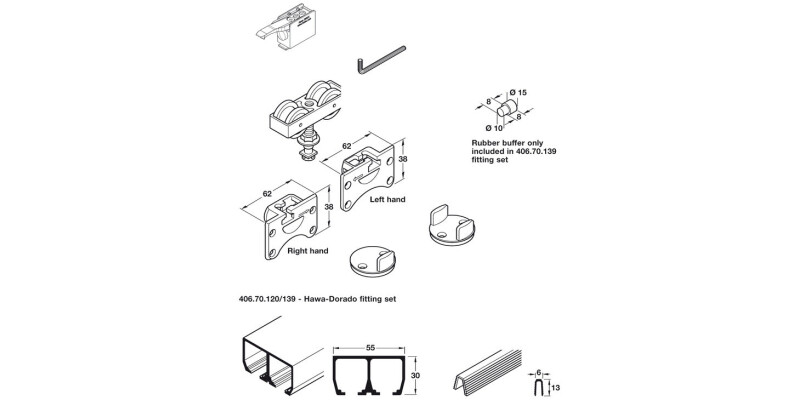

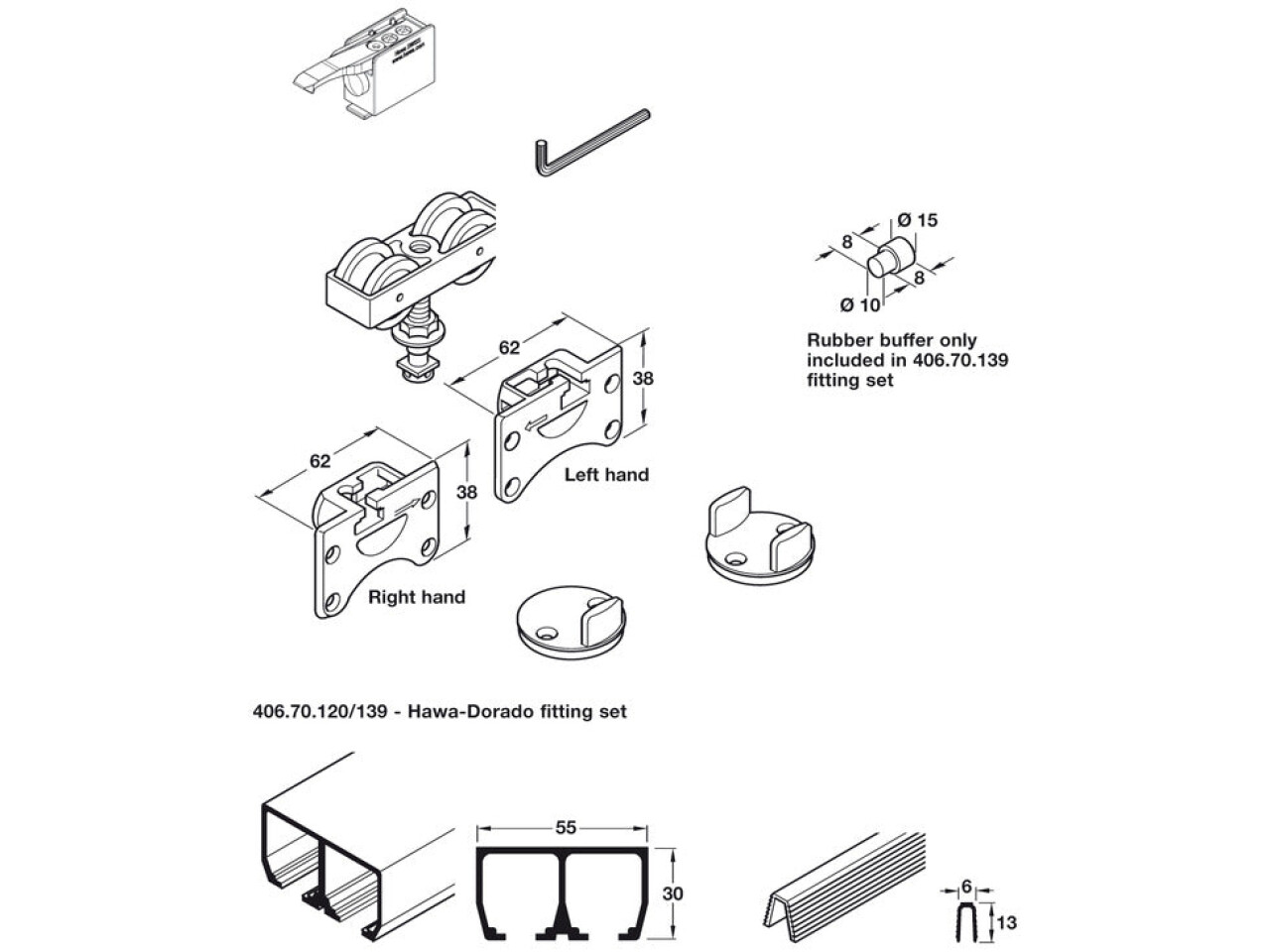

Set consists of:
1x 406.71.912, double top track
1x 406.73.103, lower guide profile
1x 406.70.139, fitting set
Specifications
For door thickness
19 – 25 mm
For door weight
≤40 kg
Running position
Top
Number of rollers
2.00
Height adjustment
-3 – 3 mm
Running gear guided by
Ball bearing
Area of application
Inset cabinet and wardrobe doors
Material/finish
Zinc alloySteelPlasticRubber
Adjustment facility
Height adjustment: -3 – 3 mm
Installation
Clip technique
Set
Set with tracks
Order reference
Soft close system and accessories to be ordered separately
