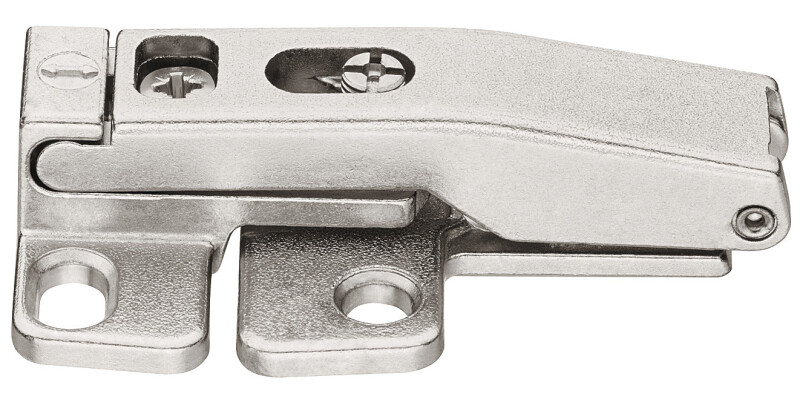

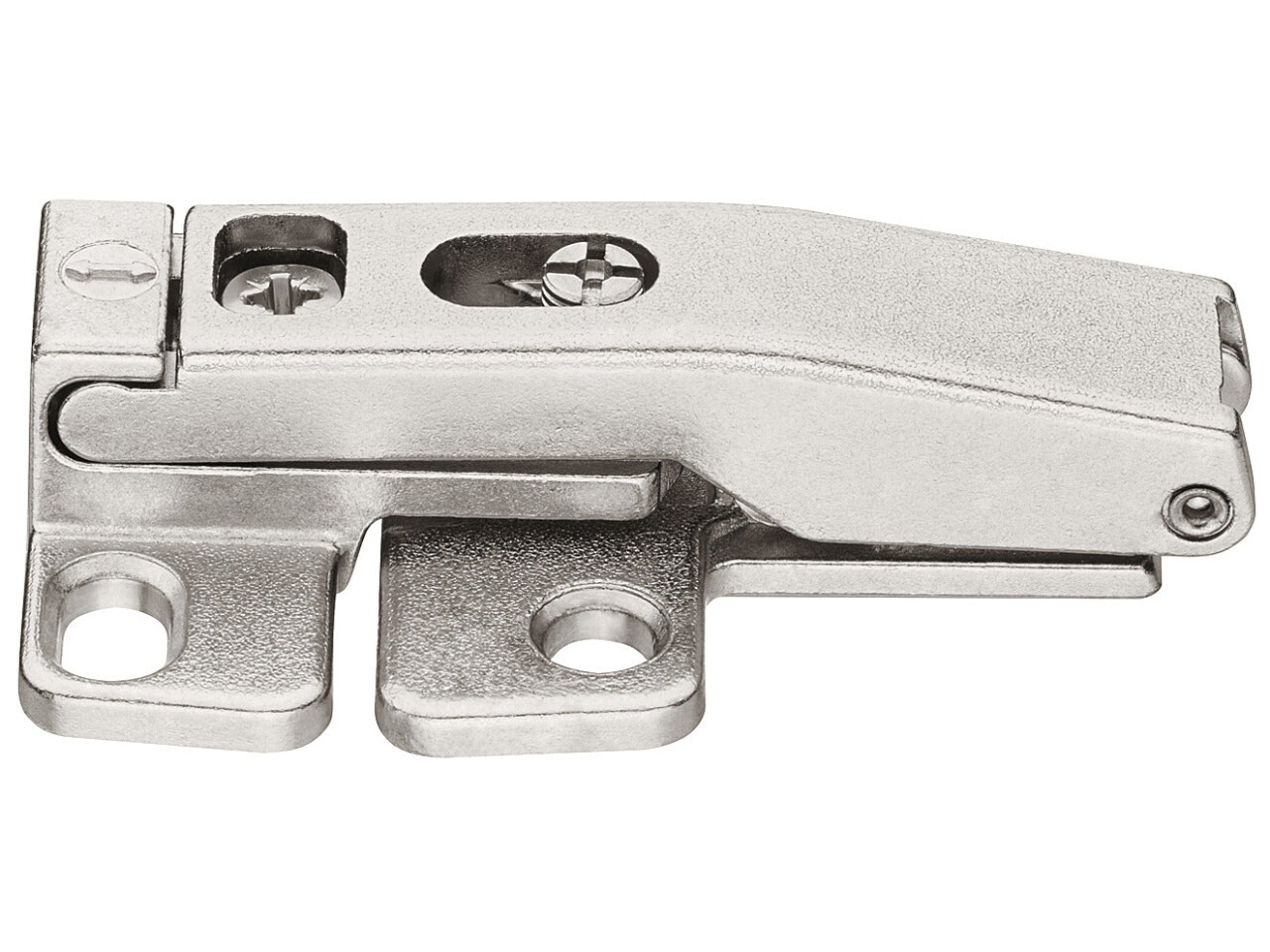

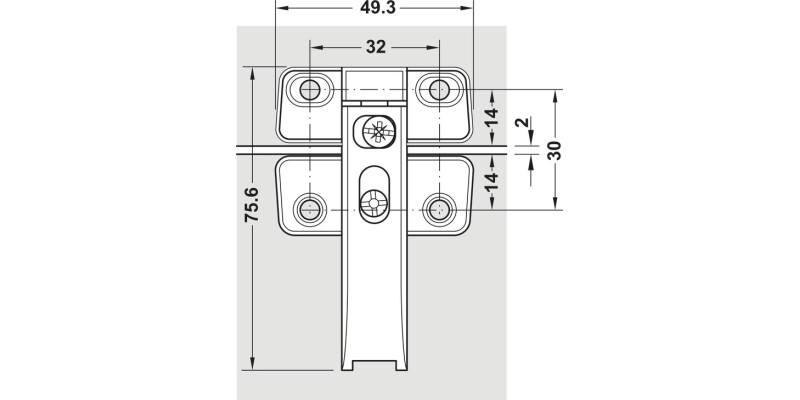

Connecting Hinge Euro Screw ZA NP
For use with Free Fold fittingWith finger protection functionUse 3 hinges for flap widths >900 mmFor additional... Read More
Product Details
For use with Free Fold fitting

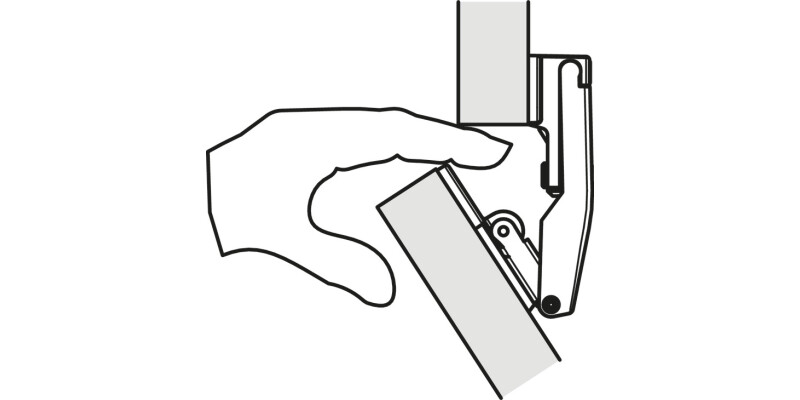

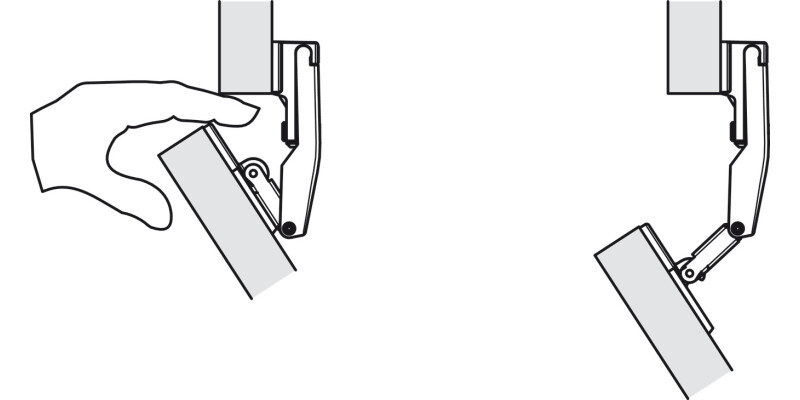

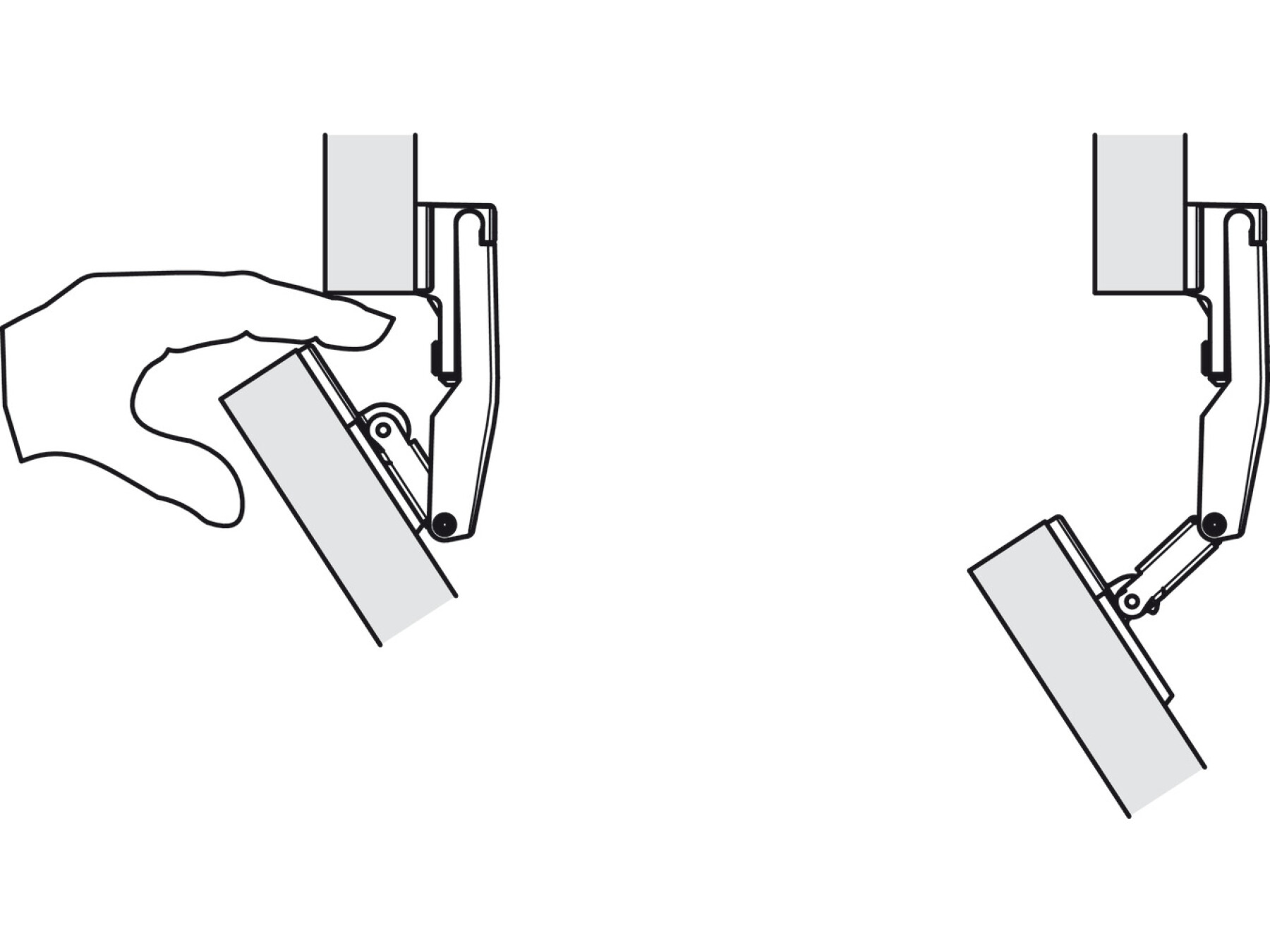

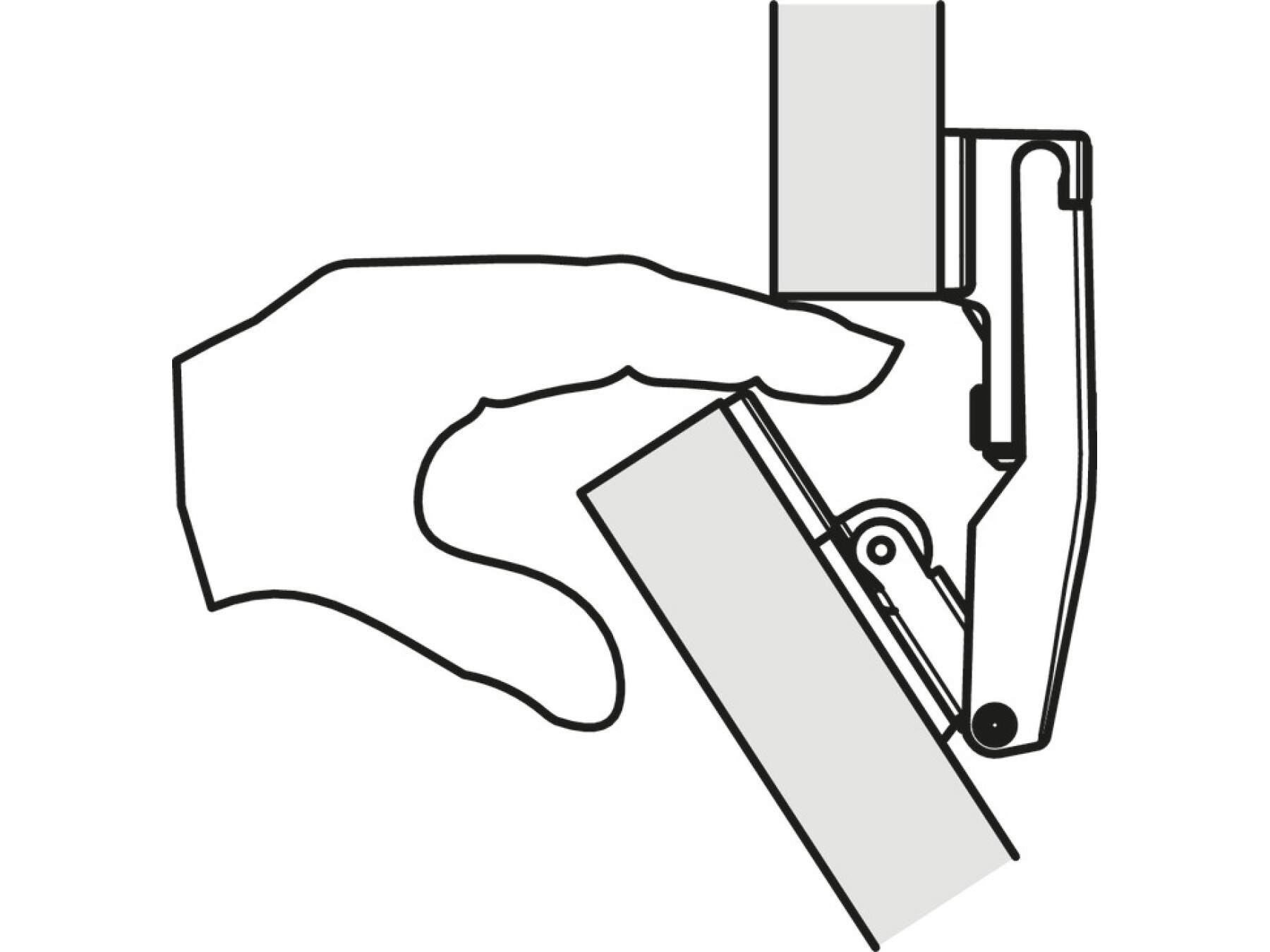

With finger protection function
Use 3 hinges for flap widths >900 mm
For additional hinge quantity information, please see cat. page
Adjustment facility
3-dimensional
Side adjustment ±2 mm
Gap adjustment –2 to +1 mm
Depth adjustment ±1.5 mm
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
From a carcase width of 900 mm and above it is advisable to use three centre hinges.
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Version
With finger trapping protection function
Colour/finish
Area of application
For wooden flaps and flaps with aluminium frame, from frame width 20 mm
