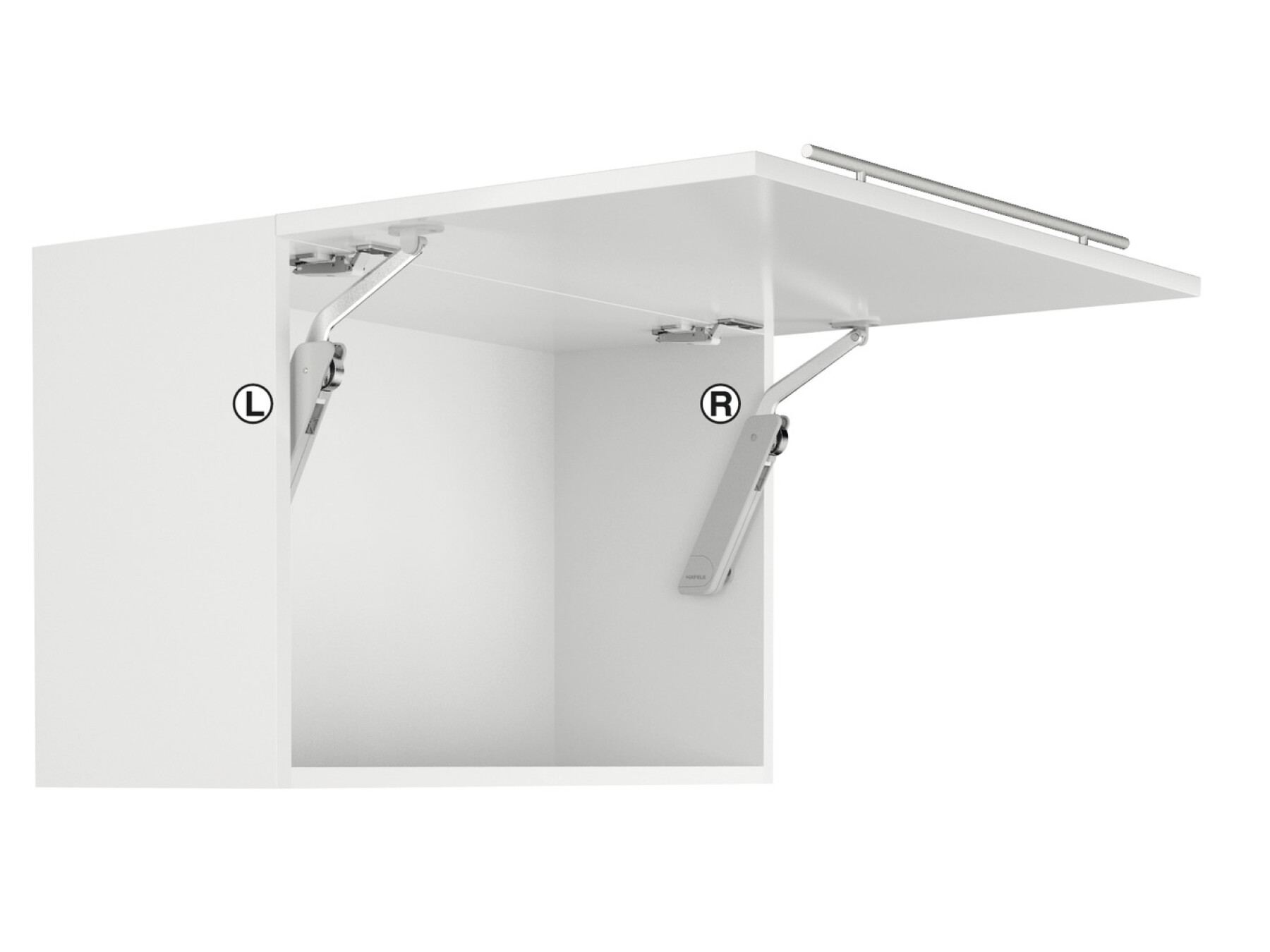

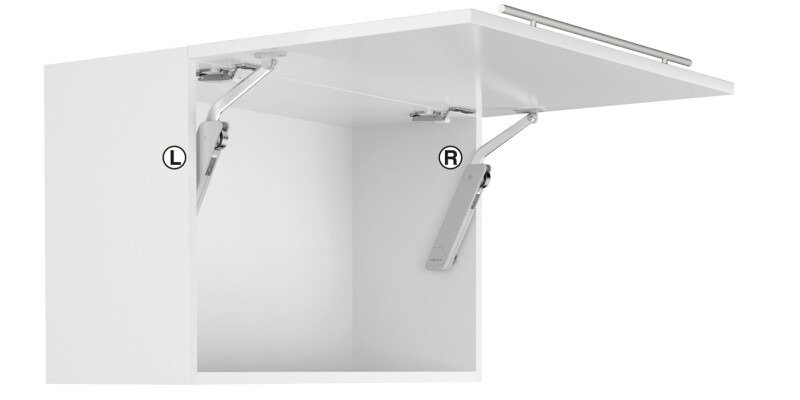

Free Flap H 1.5 Plastic/Metal C LH Grey
Can be used as: Free Flap H 1.5 Push-to-Open - Handle free application, mounting version for automatic complete... Read More
Product Details
Can be used as:
Free Flap H 1.5 Push-to-Open - Handle free application, mounting version for automatic complete opening
Free Flap H 1.5 Touch Opening - Handle free application, mounting version for opening the flap slightly, with multi position stop
Free Flap H 1.5 Handle Mounting - Application with handle mounting version for power assisted opening of flap

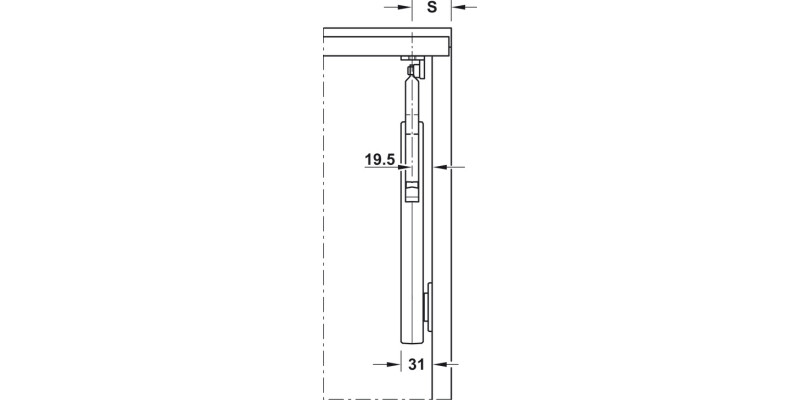

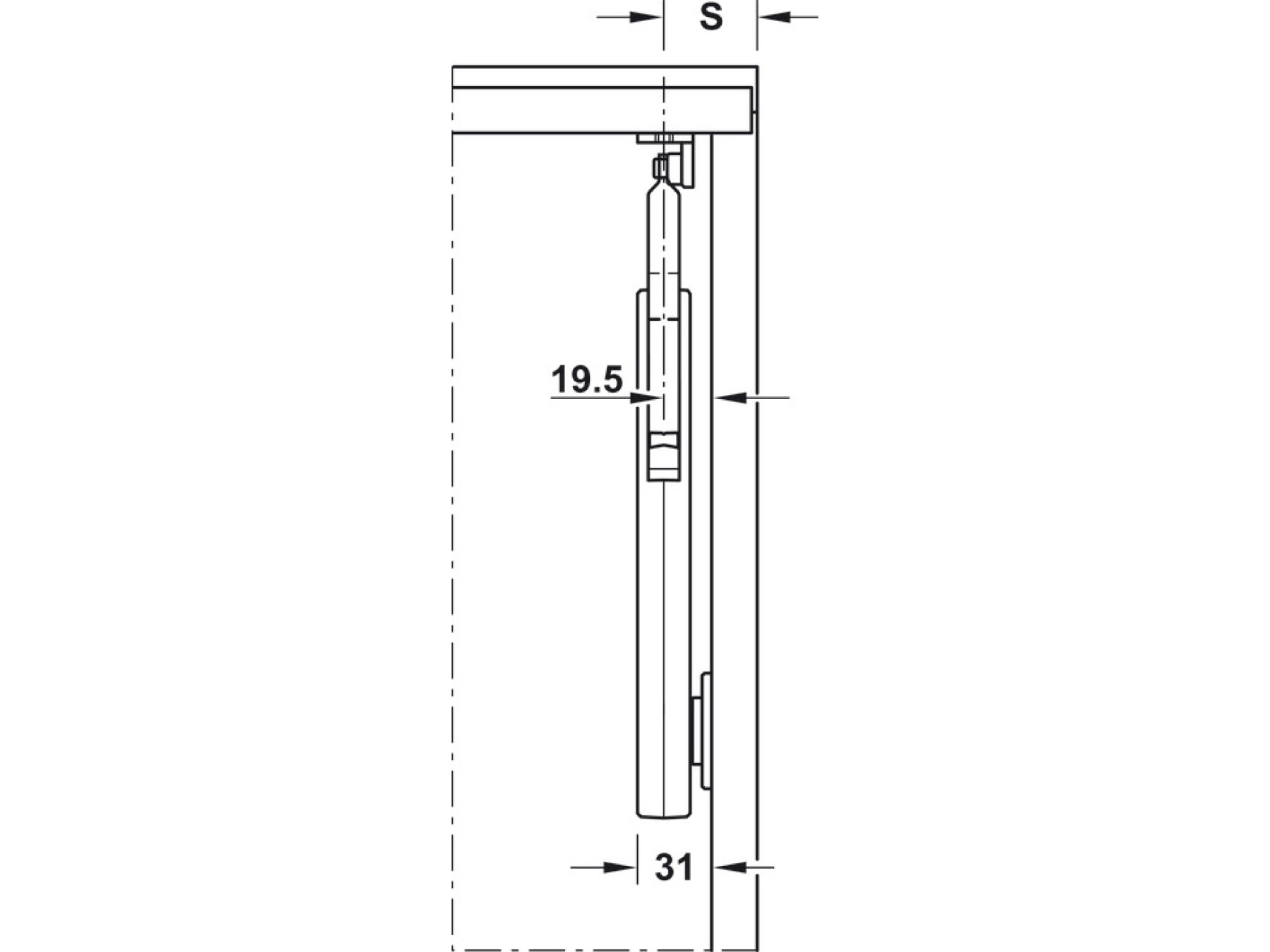

For additional measurements table, please see catalogue page
Order reference
Glass gluing adaptor for glass fronts and accessories to be ordered separately
Ø 5 mm countersunk Varianta screws to be ordered separately
Supplied with
1 x Mounting bracket for cabinet
1 x Screw-on bracket for flap
1 x Hex key, SW10, plastic
1 Set of installation instructions
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Area of application
For one piece flaps made of wood, with aluminium or all-glass front panels
Version
Single set for one-sided use
Material
Support arm: Zinc alloy
Cover cap and fitting accessories: Plastic
Colour/finish
Metal supporting arm: Nickel plated
Lid material
Flap type
Opening angle
For cabinet height
For lid weight
Adjustment facility
Holding power adjustment
Installation
Screw and clip fixing
