Libra H2 Cabinet Hanger Conc UH SZP
- Product SKU: 290.41.910
- Availability: In Stock
£2.46
Price inc. VAT
£2.46Features an innovative anti-turnover device. Cabinet hanger concealed behind rear panel, only cover caps visible inside the cabinet. Vertical and horizontal adjustment. The two movements are 100% independent of each other and therefore make the adjustments much easier and more efficient
- Finish: Zinc plated
- Handing: Unhanded
- Application: For hanging wall units

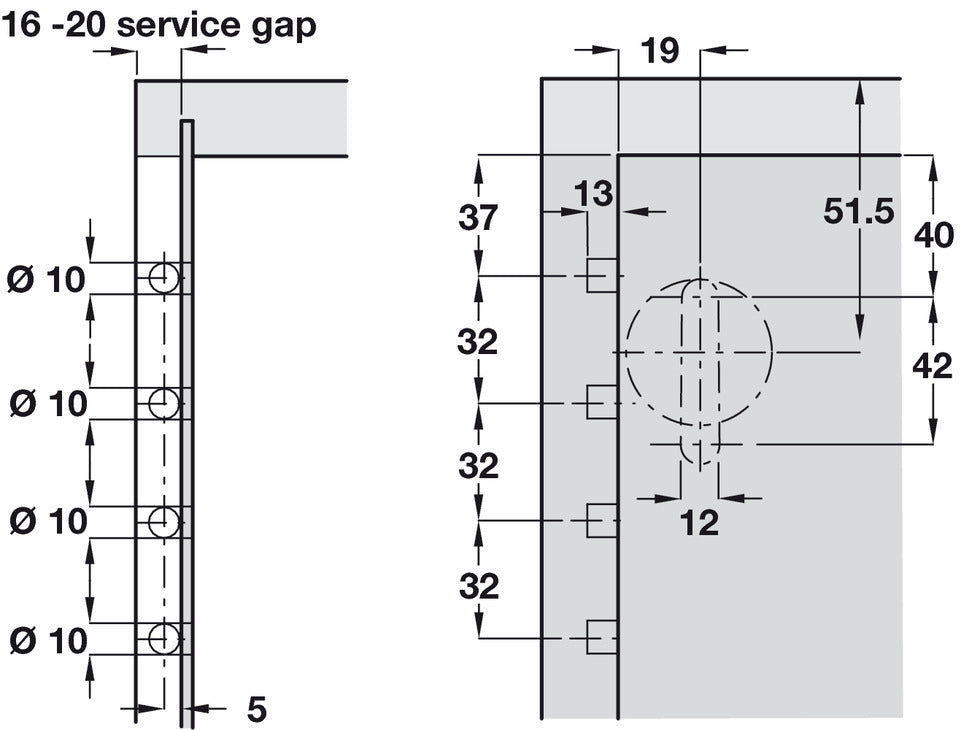

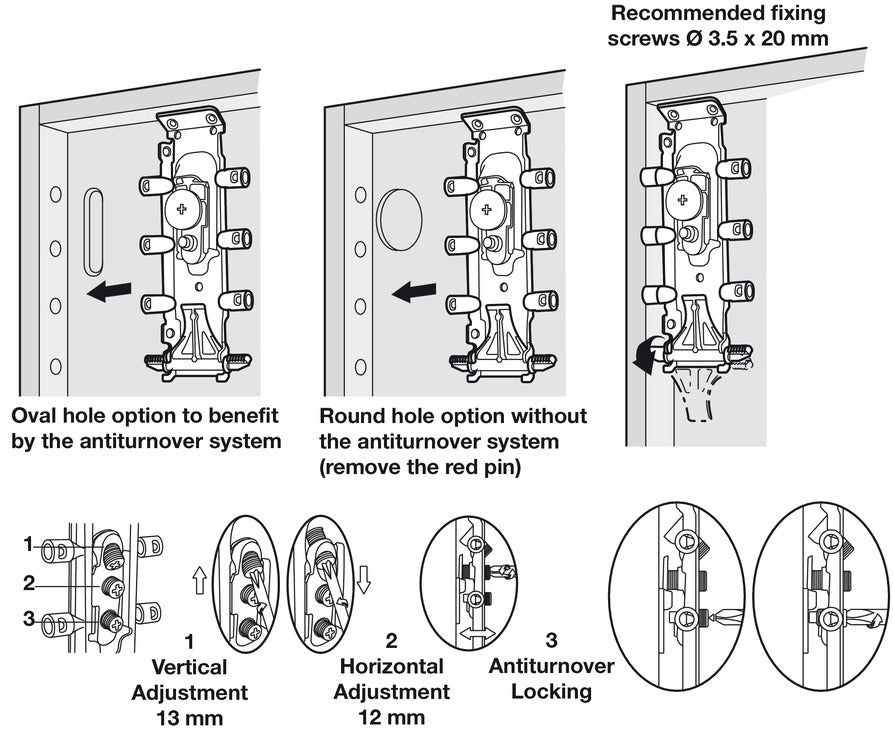

- Installation: Dowels/Screw mounting: Slots into side cabinet by making four face borings and secured in position by rotating the locking pin with ridges 180° A 3.5 x 20 mm lateral wood screw permanently secures the cabinet hanger in place (not provided)
- Load bearing capacity: 150 kg per pair (Load carrying capacity applies to 2 cabinet hangers bearing an evenly distributed load in accordance with regulation DIN 68840)
- Adjustment facility: Two-way independent adjustment: Vertical adjustment: 13 mm. Horizontal adjustment: 12mm
- Material: Steel
- Note: Cabinet hangers should only be adjusted with a hand tool and not a power tool. For safety reasons, the cabinet hangers must be fitted in the upper third of the cabinet
- Order reference: Wall plates and cover caps must be ordered separately. Please order fixings separately. Please note: The locking adjustment screw cannot be accessed if round cover caps are fitted, order rectangular cover cap if access to all 3 adjusting screws is required
