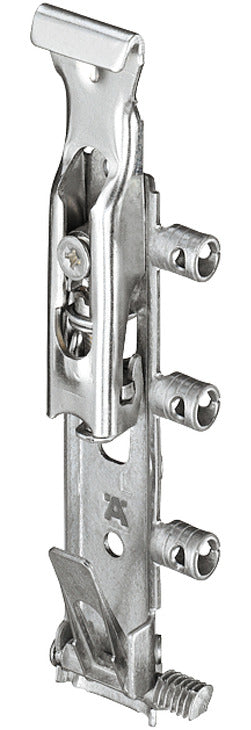

Cabinet Hanger Concealed Rapid Fit LH
- Installation: For press fitting
- Version: Quick fixing system with lever
- Material: Cabinet hanger: Steel
- Finish: Galvanized
- Adjustment facility: Adjustment screws can be accessed from the front after installation
- Standard: The load bearing capacity of the cabinet hanger is 65 kg/piece in compliance with the DIN EN 68840 standard requirements.
- Cabinet hanger is mounted "invisibly" behind the rear panel (space requirement min. 16 mm)
- Installation: The cabinet hanger must be fitted in the upper third of the cabinet for safety reasons.With heavy loads: Mount at least 2 countersunk head screws (3.5 x 30 mm). Screw must rest on wall plug.NoteOnly use hand screwdriver for adjustment.
- Order reference: Wall plate or rail must be ordered separatelyPlease order Hospa √ò 4.0 mm screws separately
