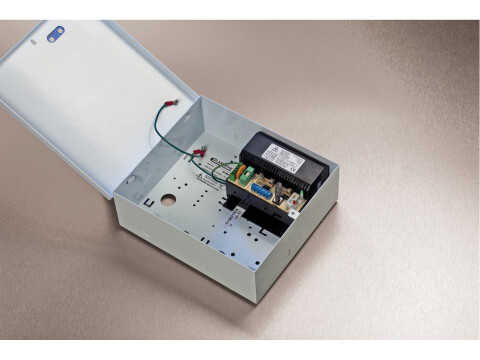

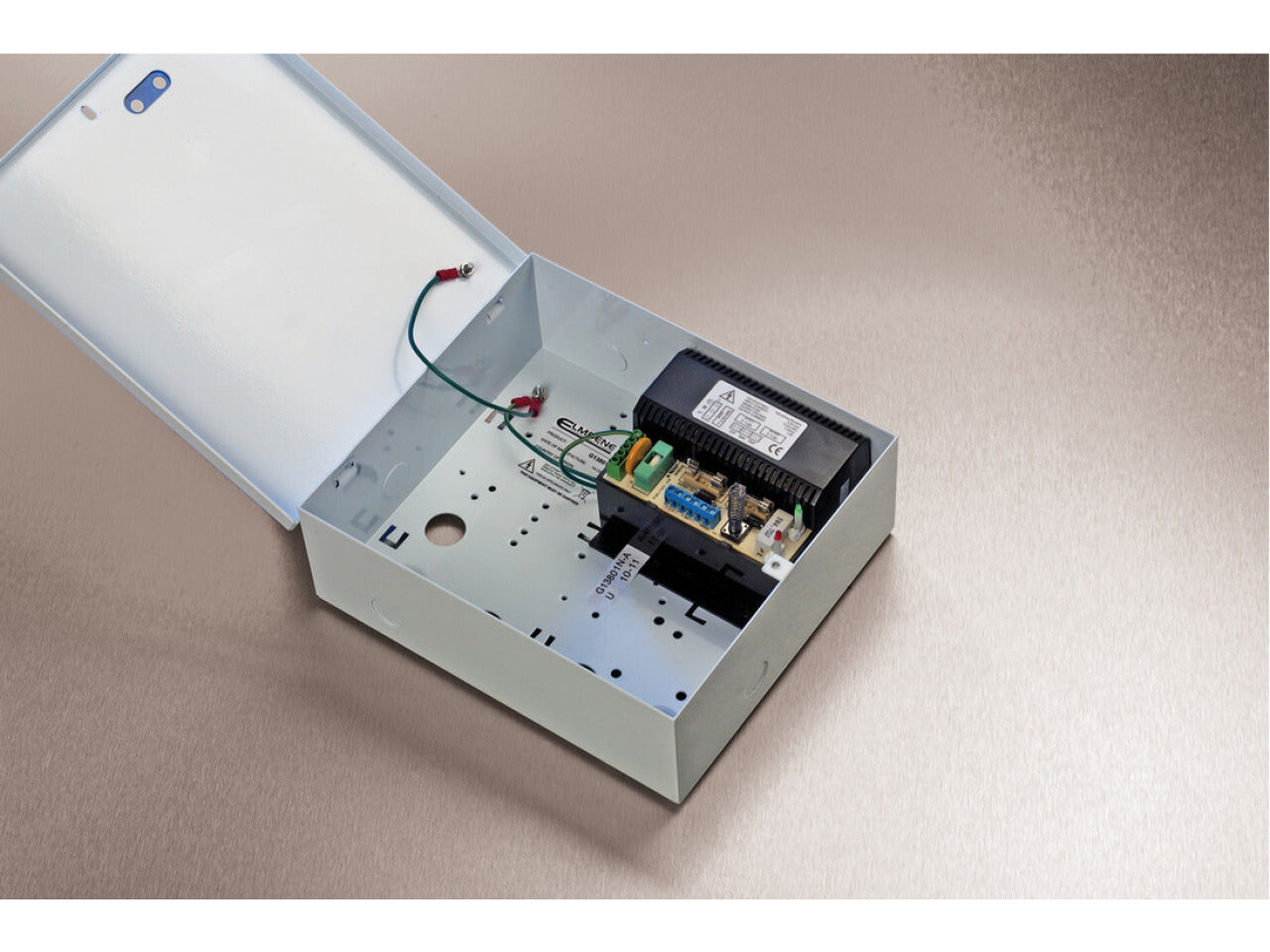

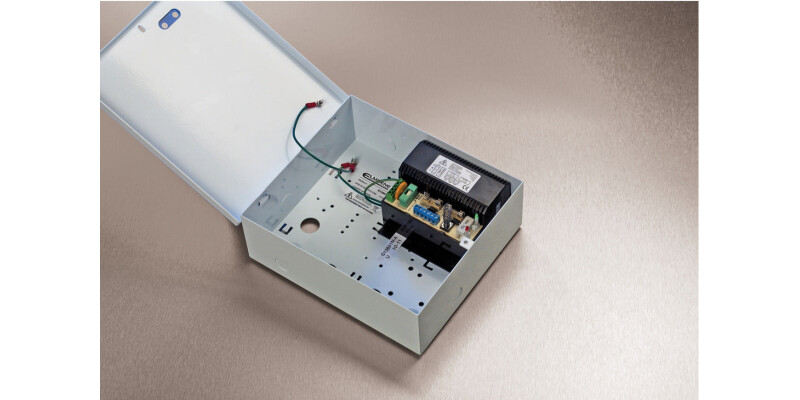

Power Supply 12V DC 3 Amp St White

Product Details

Input specification: Voltage 90-264V Ac. Frequency 50-60Hz
Output specification: 13.4-14.2V dc on mains power, 10-12.3V dc on battery standby
Suitable for access control
A regulated 13.8V DC output supplying continuous full rated current to load and up to an additional 0.5A for trickle charging a standby battery
Load output features full electronic short circuit protection under mains operation
Front tamper circuit
Mains present and fault indicator LEDs
This power supply unit complies with relevant EMC and safety standards
The PSU meets classifications to BS EN 50131-6: 1998

Specifications

Product category

Material

Colour/finish
