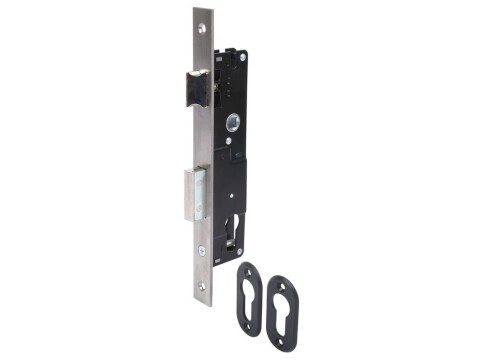

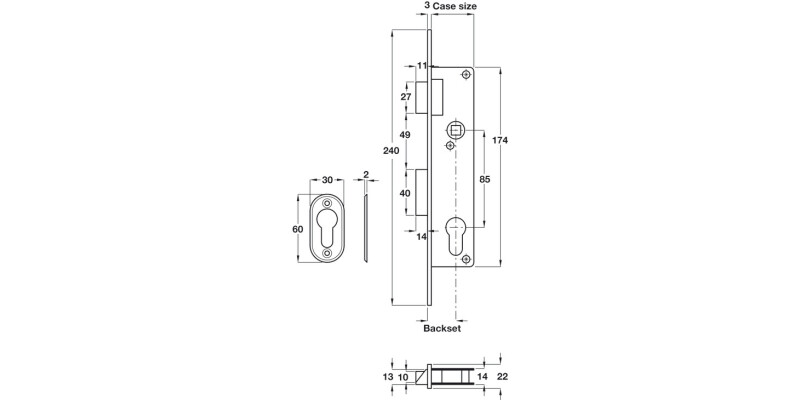

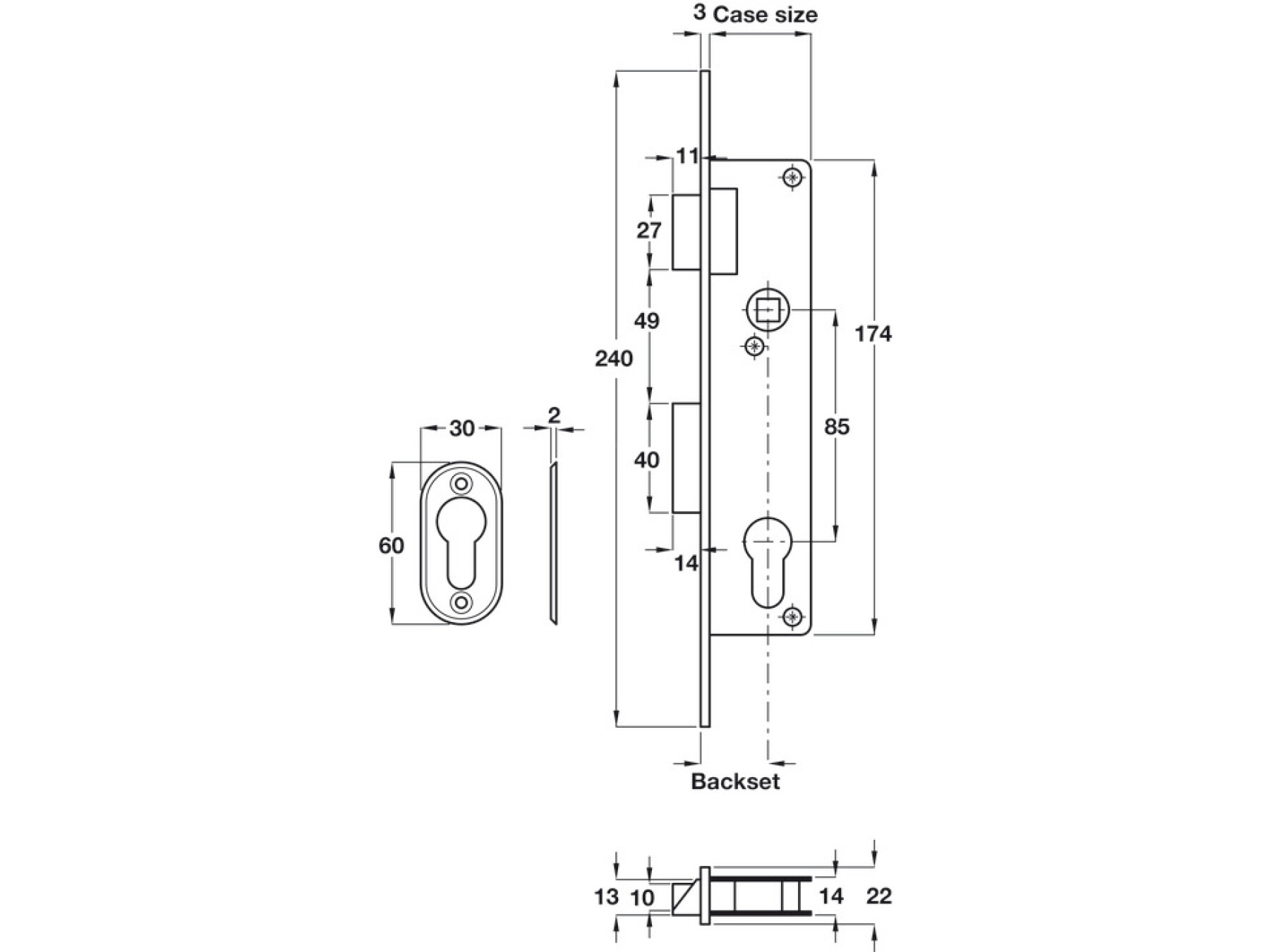

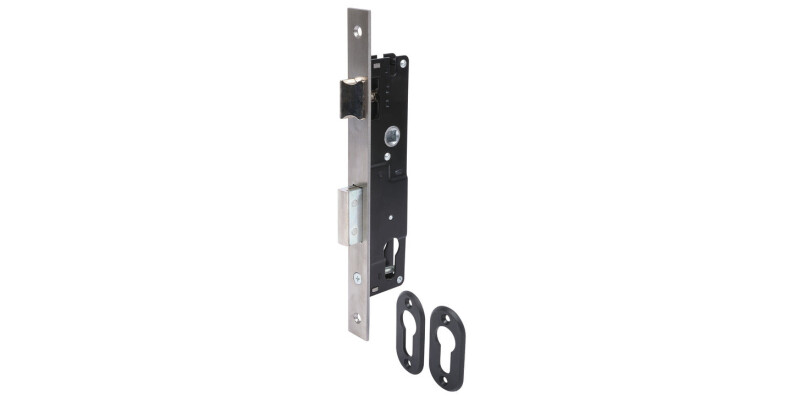

Narrow Mortice Sashlock 35/51mm SSS
Part Number: 911.12.028
Backset 35 mm, case size 51 mm, satin stainless steel
Price:
£23.21
Per Item
Latchbolt operated by lever handles. Deadbolt operated by cylinderCase: Epoxy polyester powder coated, 14 mm... Read More
Product Information
Product Details
Latchbolt operated by lever handles. Deadbolt operated by cylinder
Case: Epoxy polyester powder coated, 14 mm wide
Forend: Square, 1 piece
Latchbolt: Reversible
Deadbolt: 14 mm throw
Follower: 8 mm. For use with unsprung furniture
Black plastic escutcheons included
Material
Case: Epoxy polyester powder coated steel
Forend: Stainless steel
Latchbolt and follower: Brass
Deadbolt: Laminated steel
Order reference
Strike plate and fixing screws (Hospa ⌀ 4.0 countersunk) are not included and must be ordered separately
There are no rebate sets available for these locks, as they are primarily intended for metal door applications
| Technical data | |
|---|---|
| Type of locking | PC |
| Distance | 85 mm |
| Deadbolt throw dim. | 14 mm |
| Lever follower | 8 mm |
Specifications
Type of locking
PC
Distance
85.00 mm
Forend design
Flat forend edged
Forend width
22.00 mm
Lever follower
8.00 mm
Latchbolt version
Standard latch
Prepared for
Profile cylinder
Colour/finish
Satin stainless steel
Forend length
240.00 mm
Deadbolt version
Standard deadbolt
Supplied with
Escutcheons
