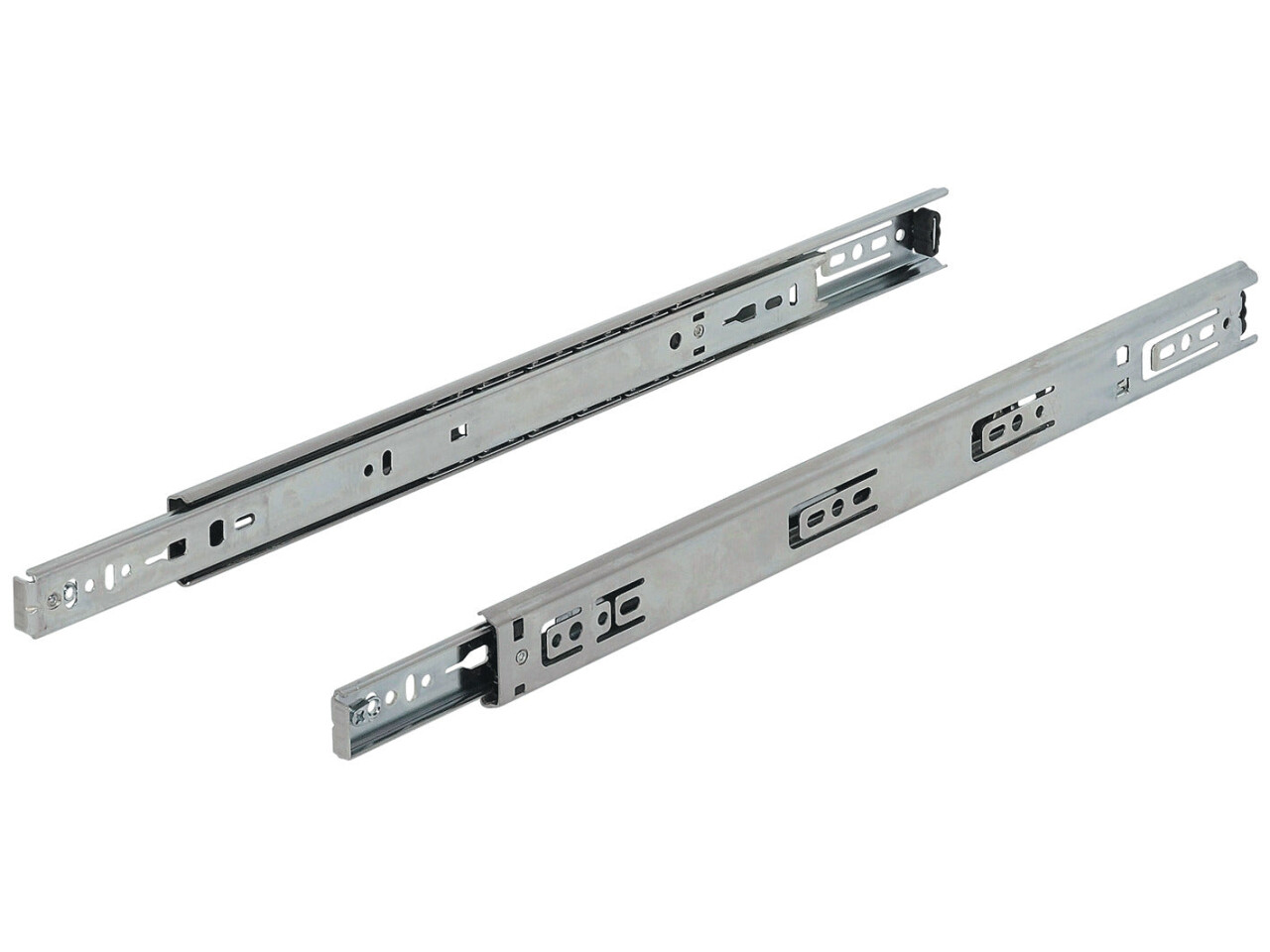

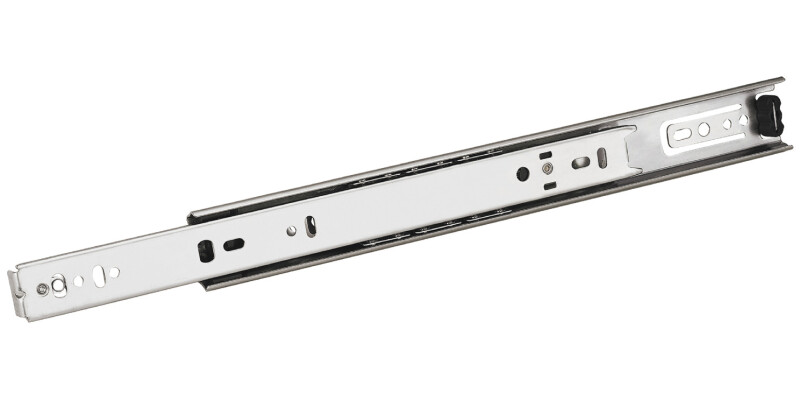

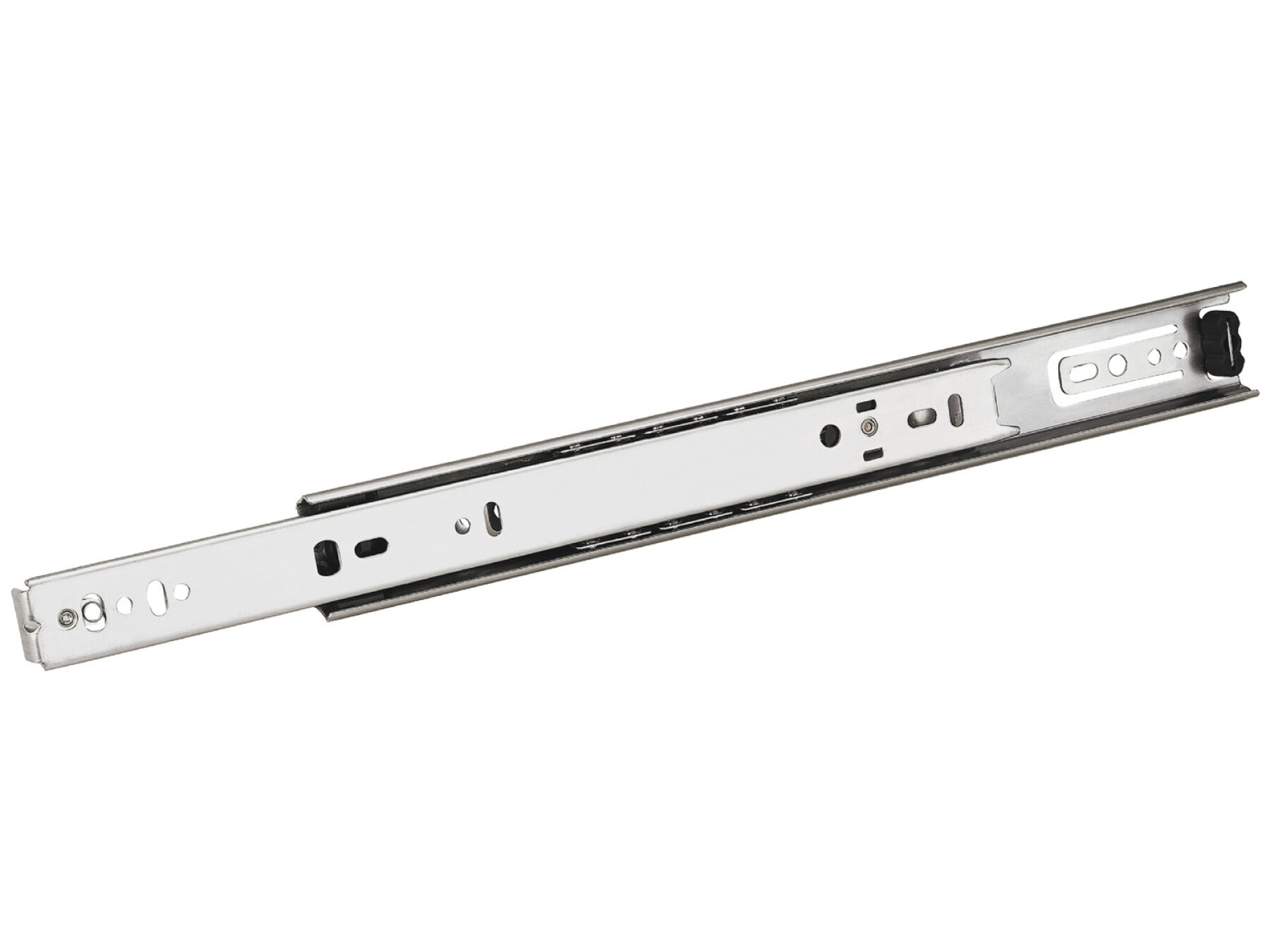

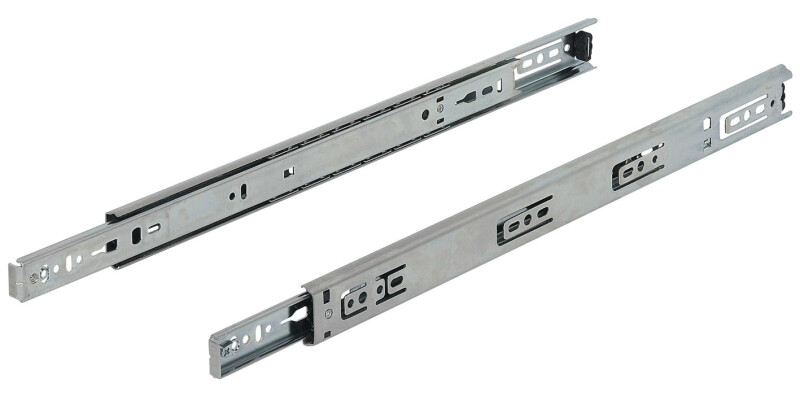

2132 BB Drawer Runner Sgl 34kg 500mm BZP
Part Number: 422.40.950
Hold-in feature, Installation length 500 mm, load capacity 34 kg, bright
Price:
£24.81
Per Item
For desk pedestals and general storage drawersFront disconnect (by depressing lever) for drawer removalHold-in... Read More
Product Information
Product Details
For desk pedestals and general storage drawers

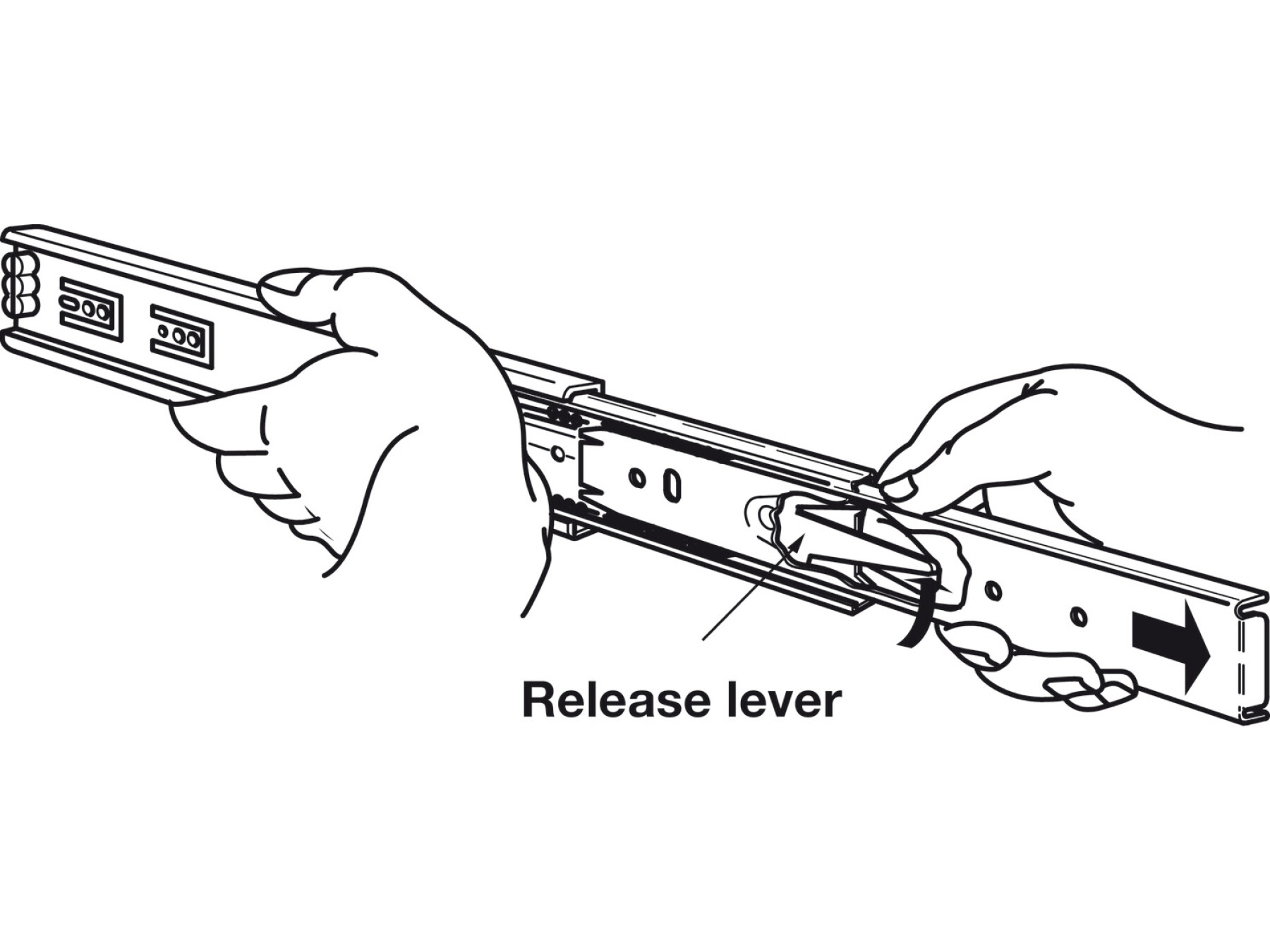

Front disconnect (by depressing lever) for drawer removal
Hold-in feature holds the closed drawer in
Silent movement
Order reference
Order Varianta Ø 5 cylindrical and Hospa Ø 4.0 pan head screws separately

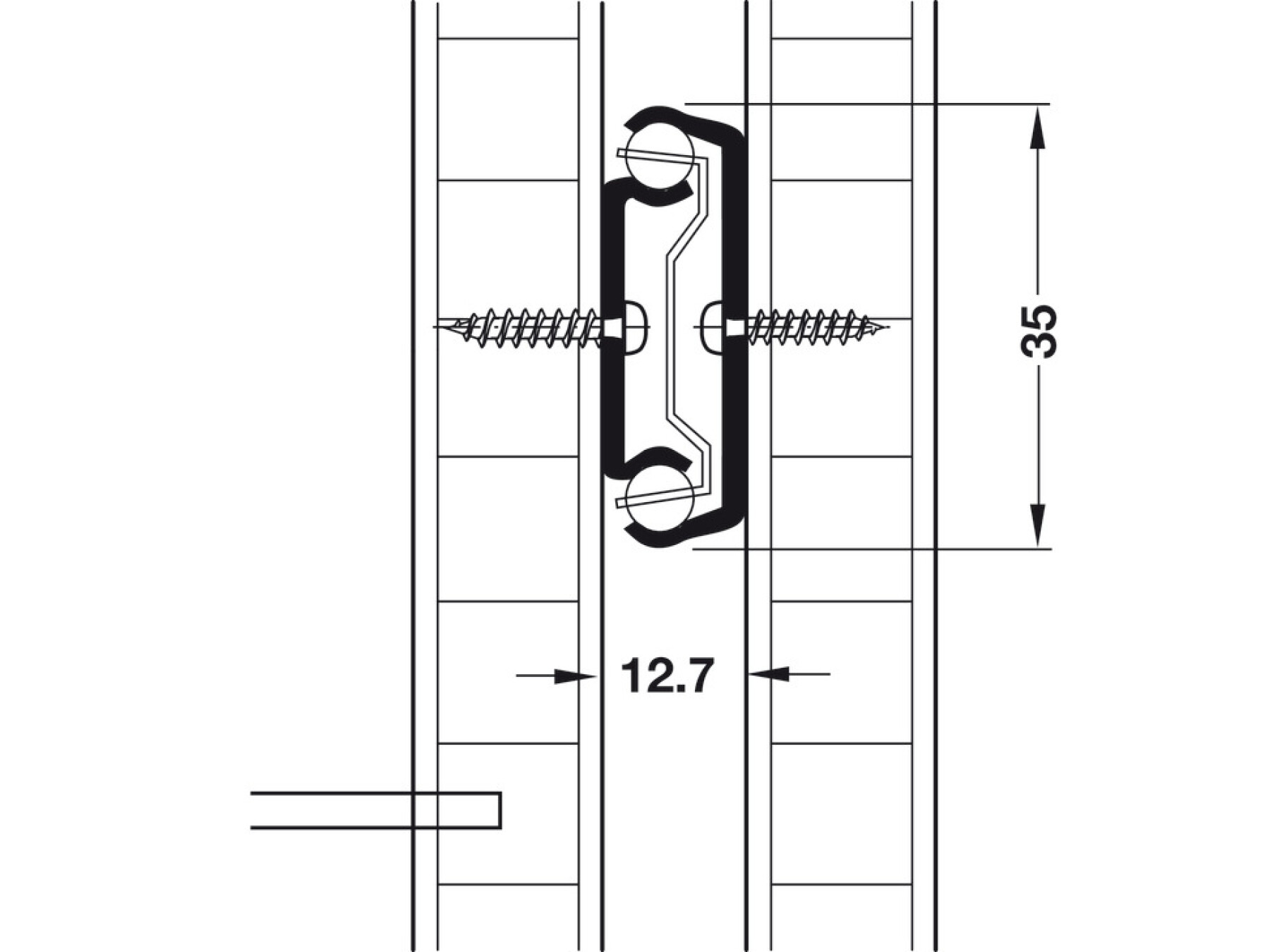

Fixings: Max. head height 2.5 mm, Ø 9.6 mm
These runners have a cam adjuster on the front of each slide which gives 3.1 mm adjustment on the drawer front
Specifications

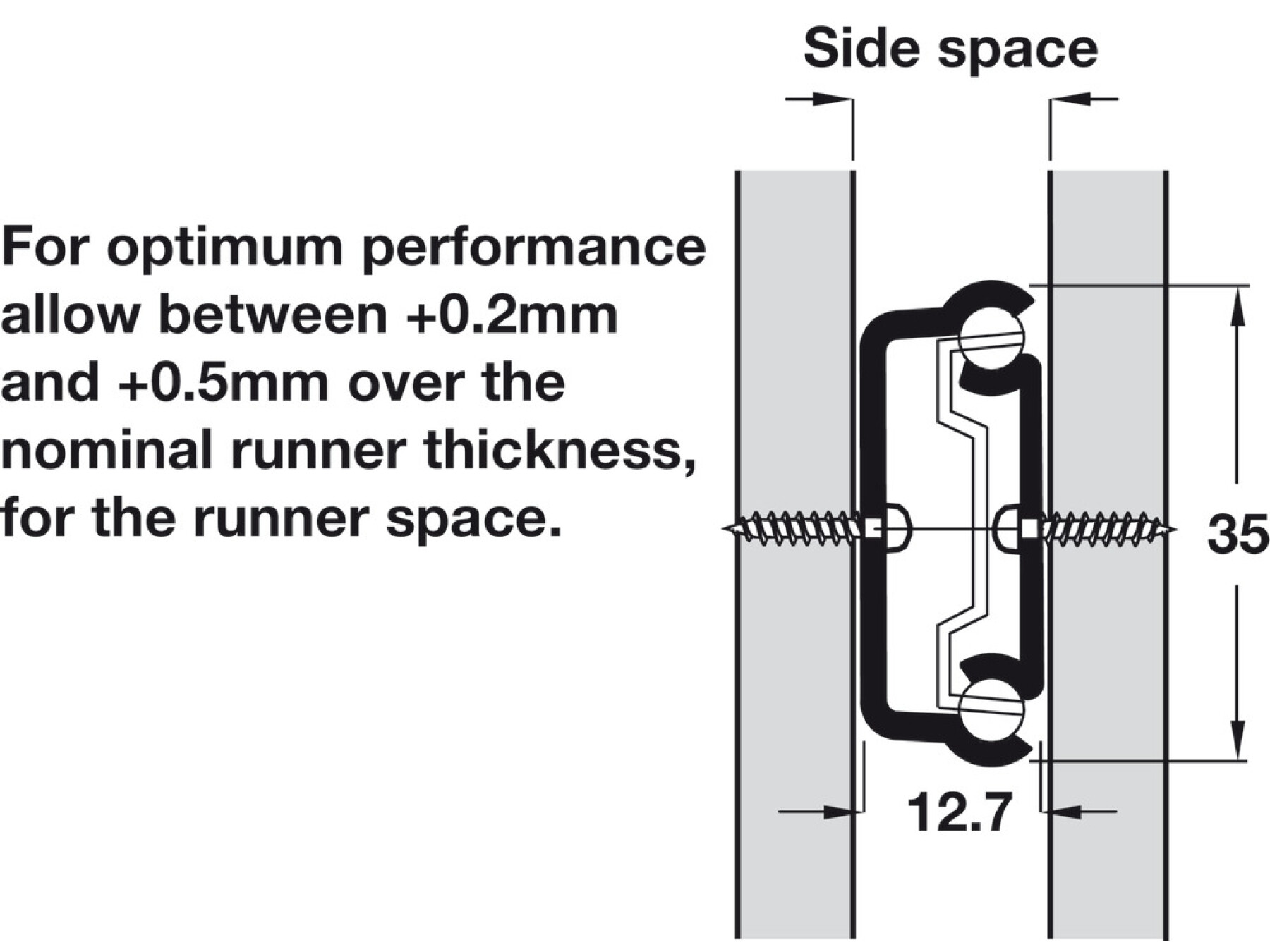

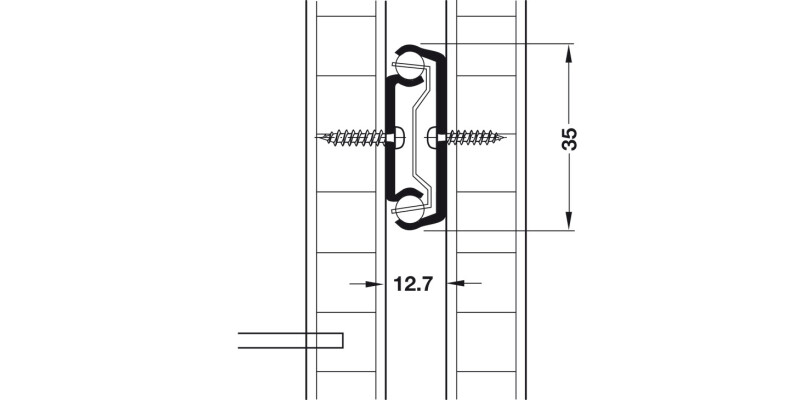

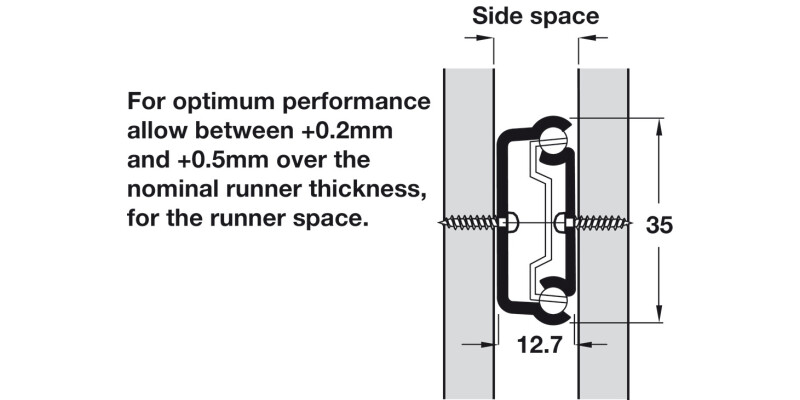

Mounting
Side mounting
Version
Hold-in device in closed position
Model
2132
Type of pull out
Single extension
Holding function
Hold-in
Drawer removal
With release lever
Material
Steel
Width
224.00 mm
Installation

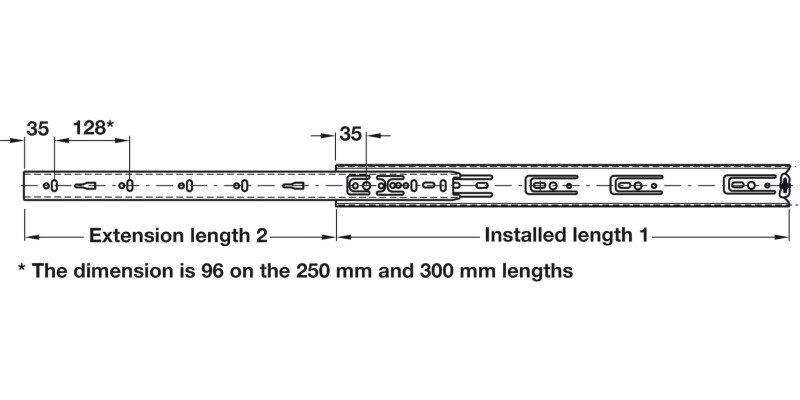

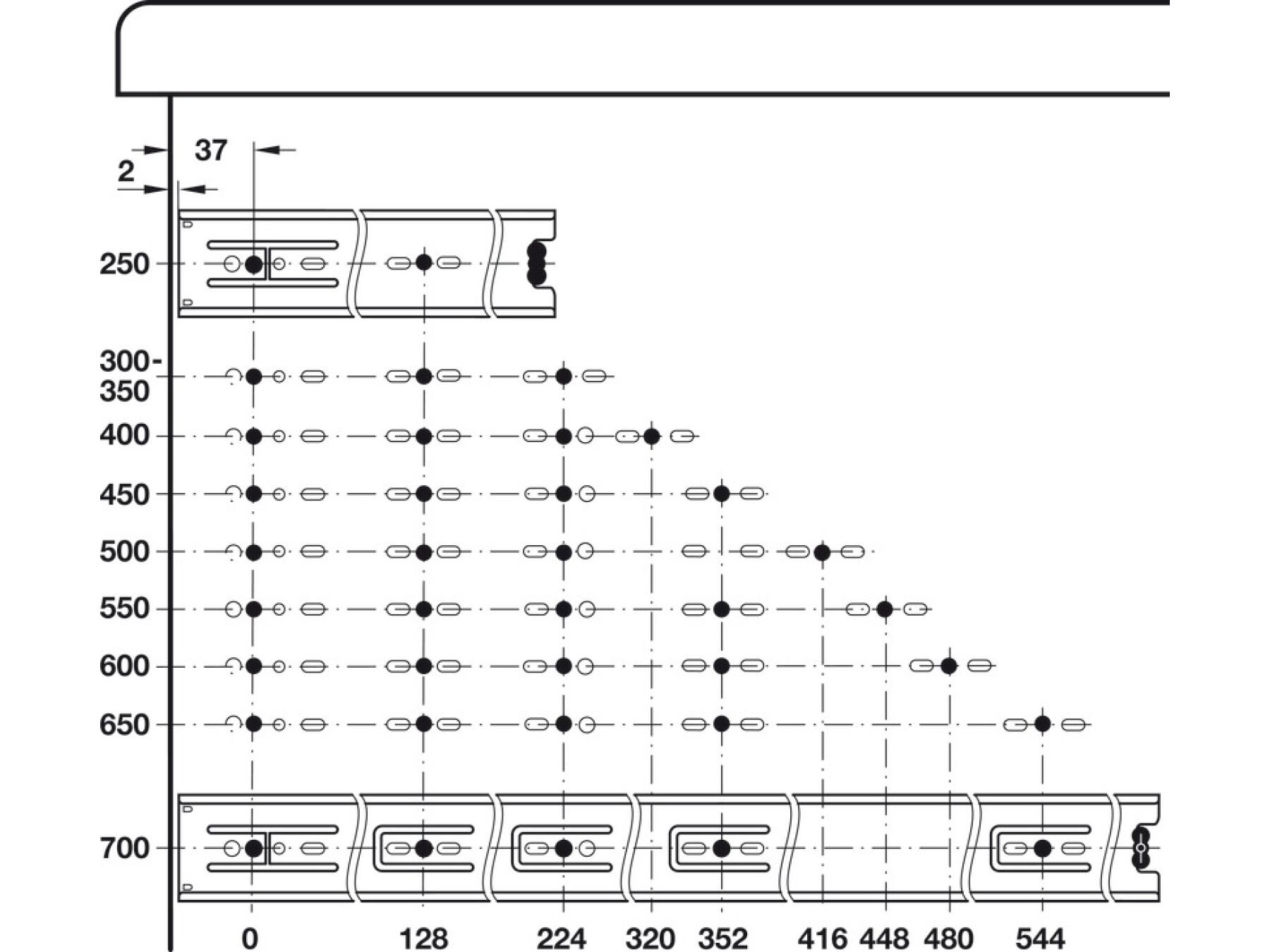

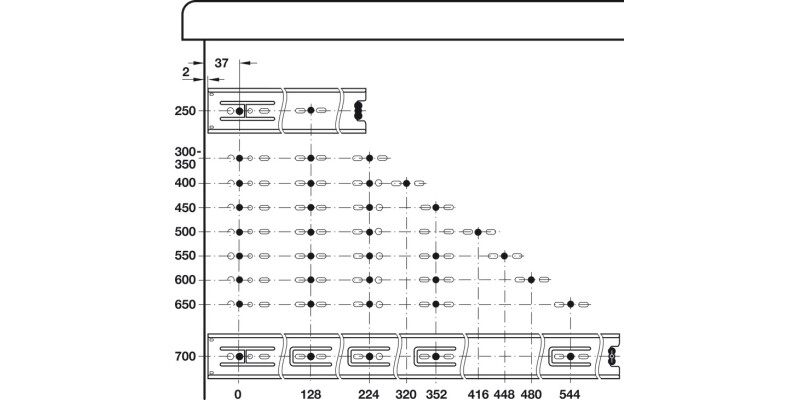

32 mm and universal hole pattern
