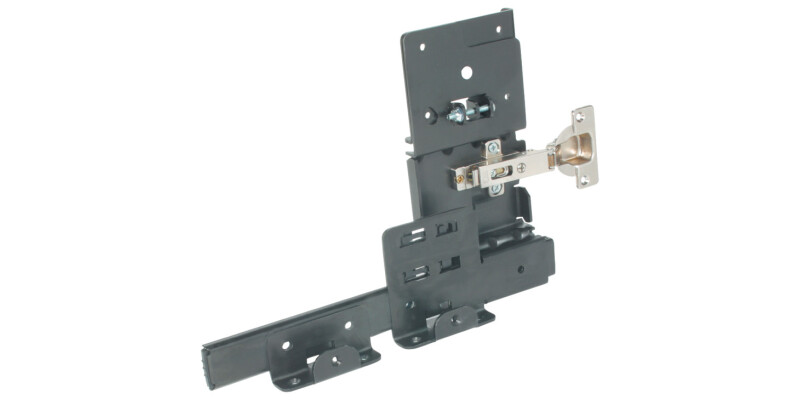

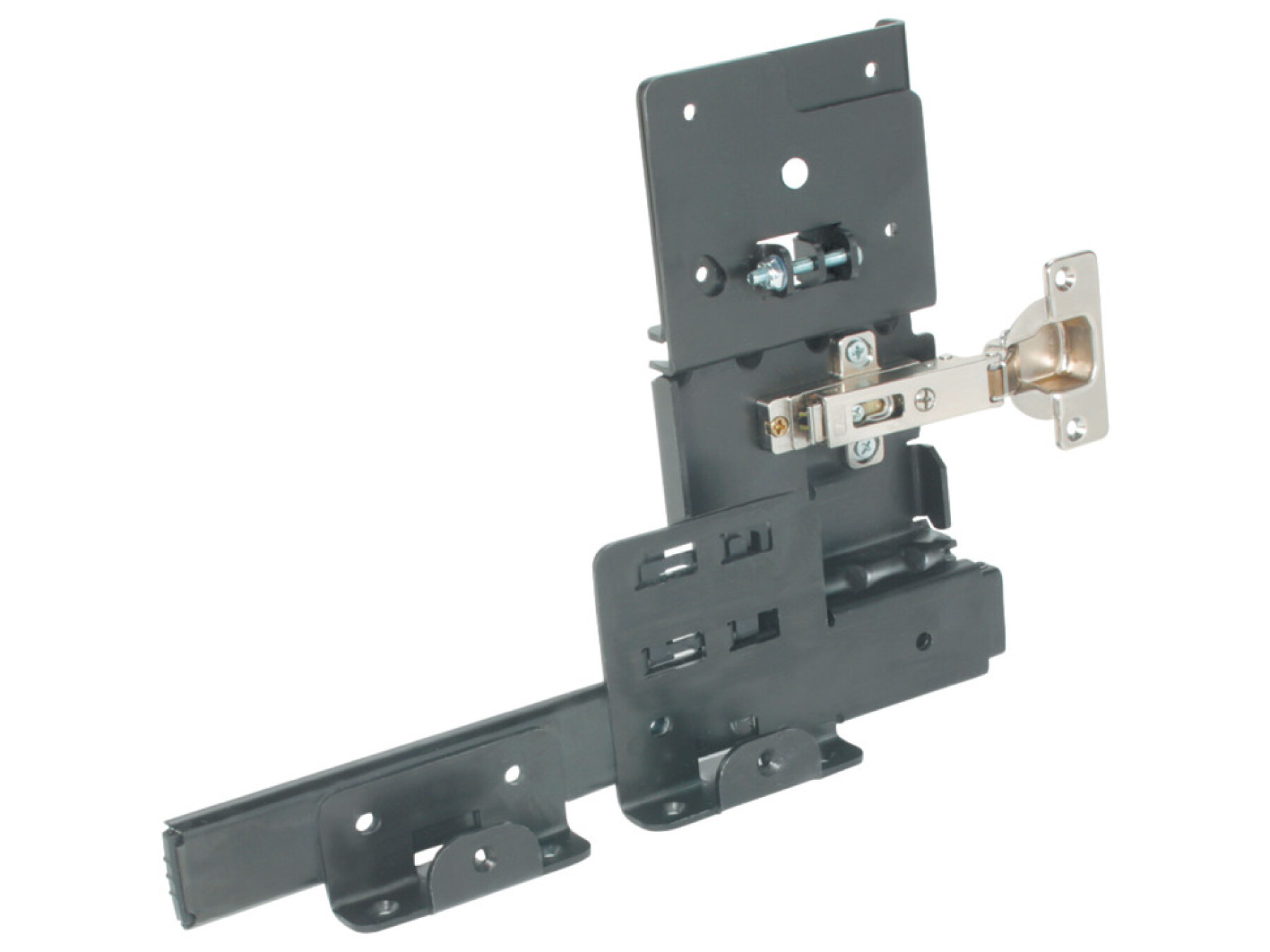

Accuride 1321 Pivot Sld DrRun Blk 710mm

Part Number: 408.34.371

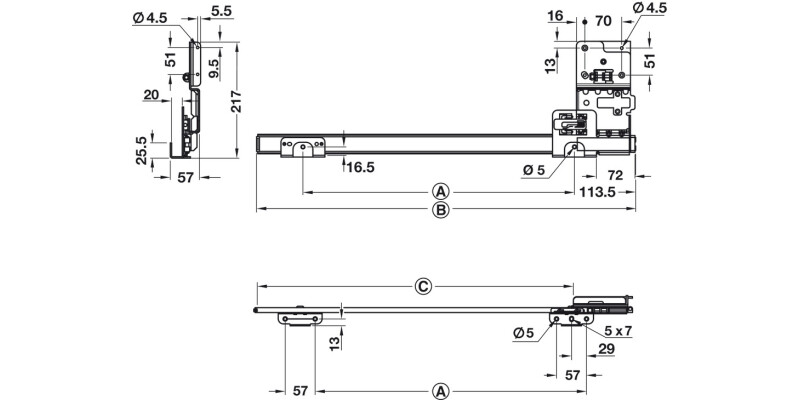

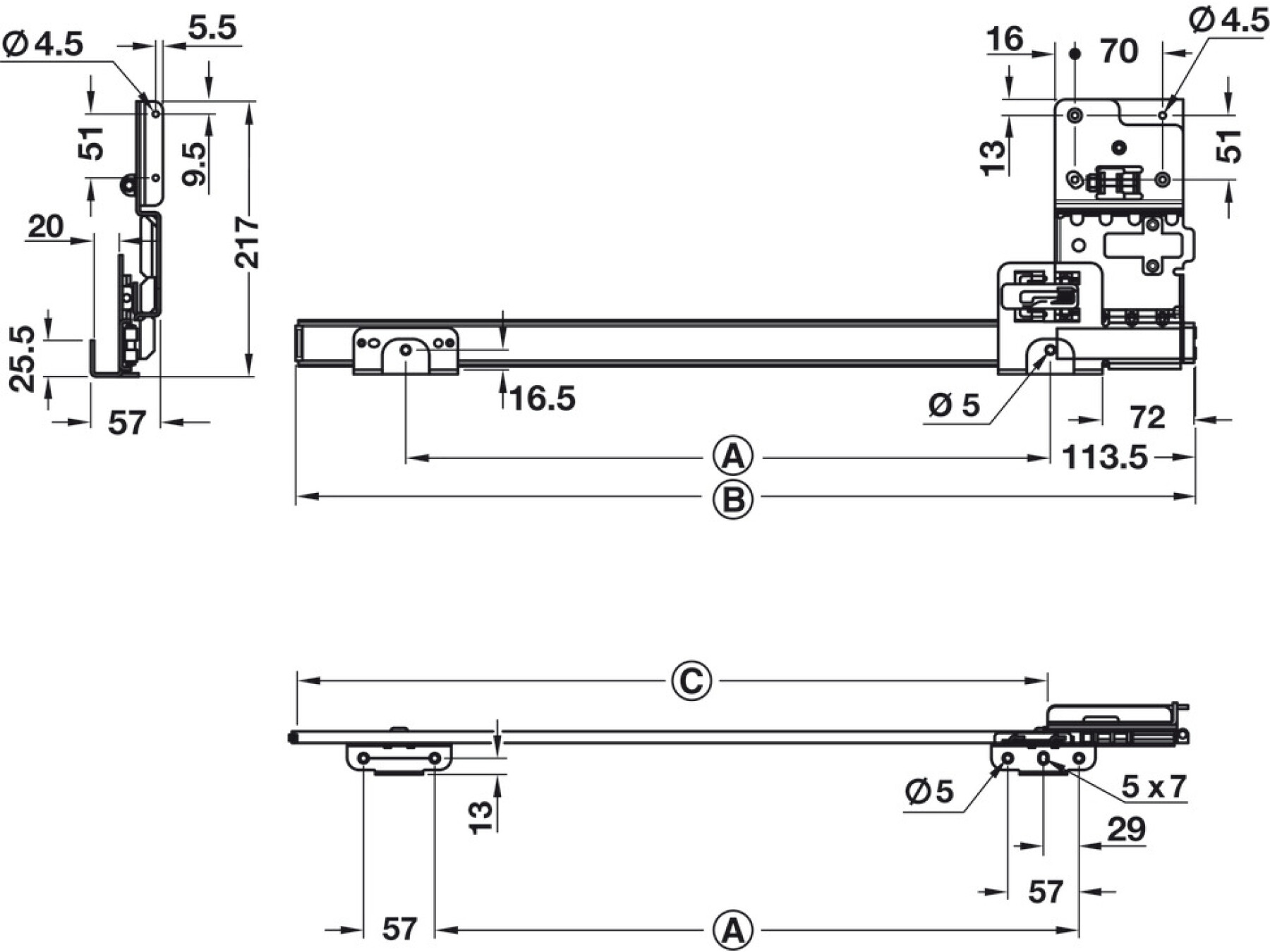

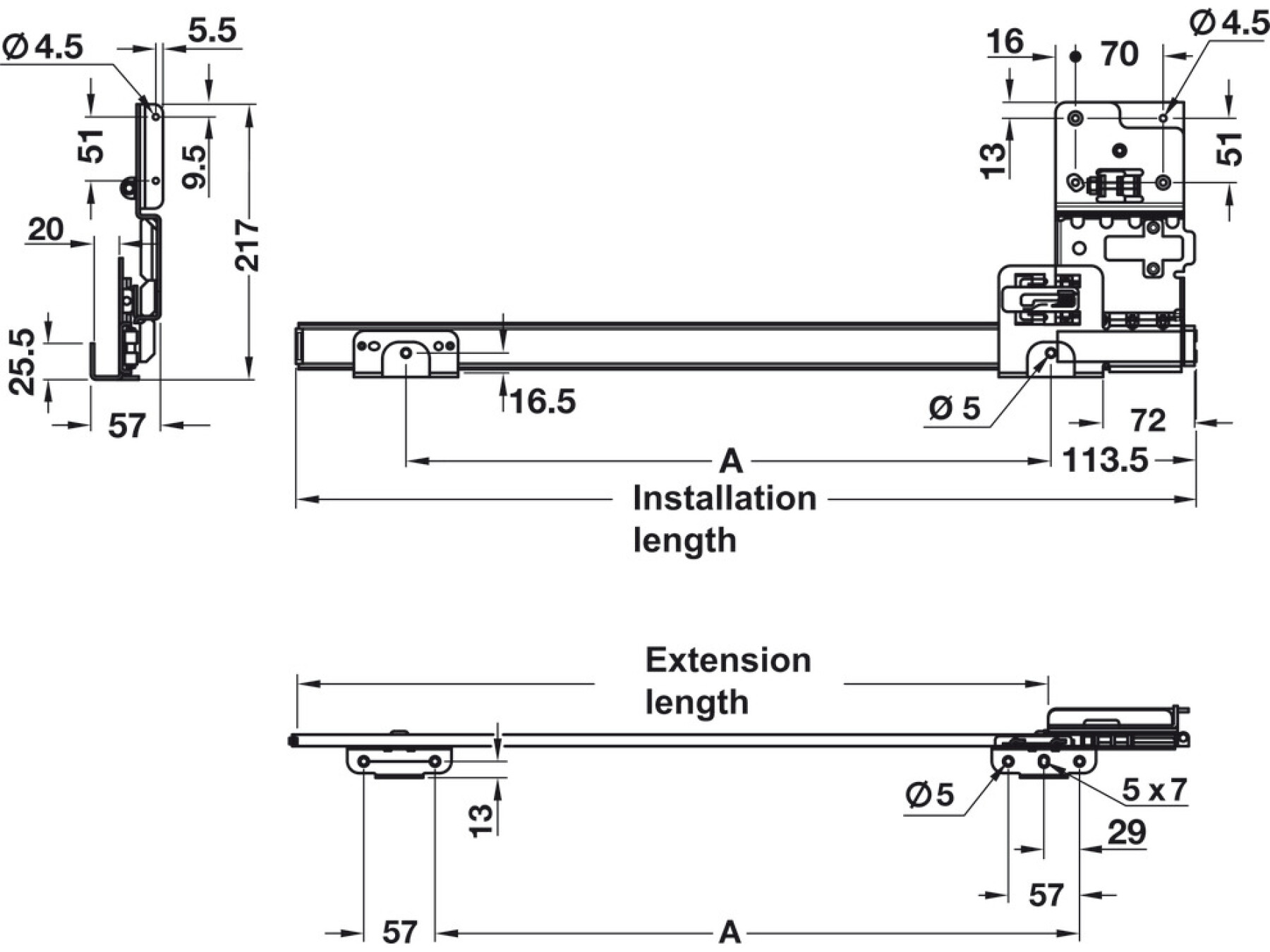

For vertical use, Installed length 710 mm, extension length 594 mm

Price:

£140.82

Per Item

VAT excluded

Slide rollers run across the back of the doors allowing for the use of sculptured doors, applied moldings, or... Read More

Product Information

Product Details

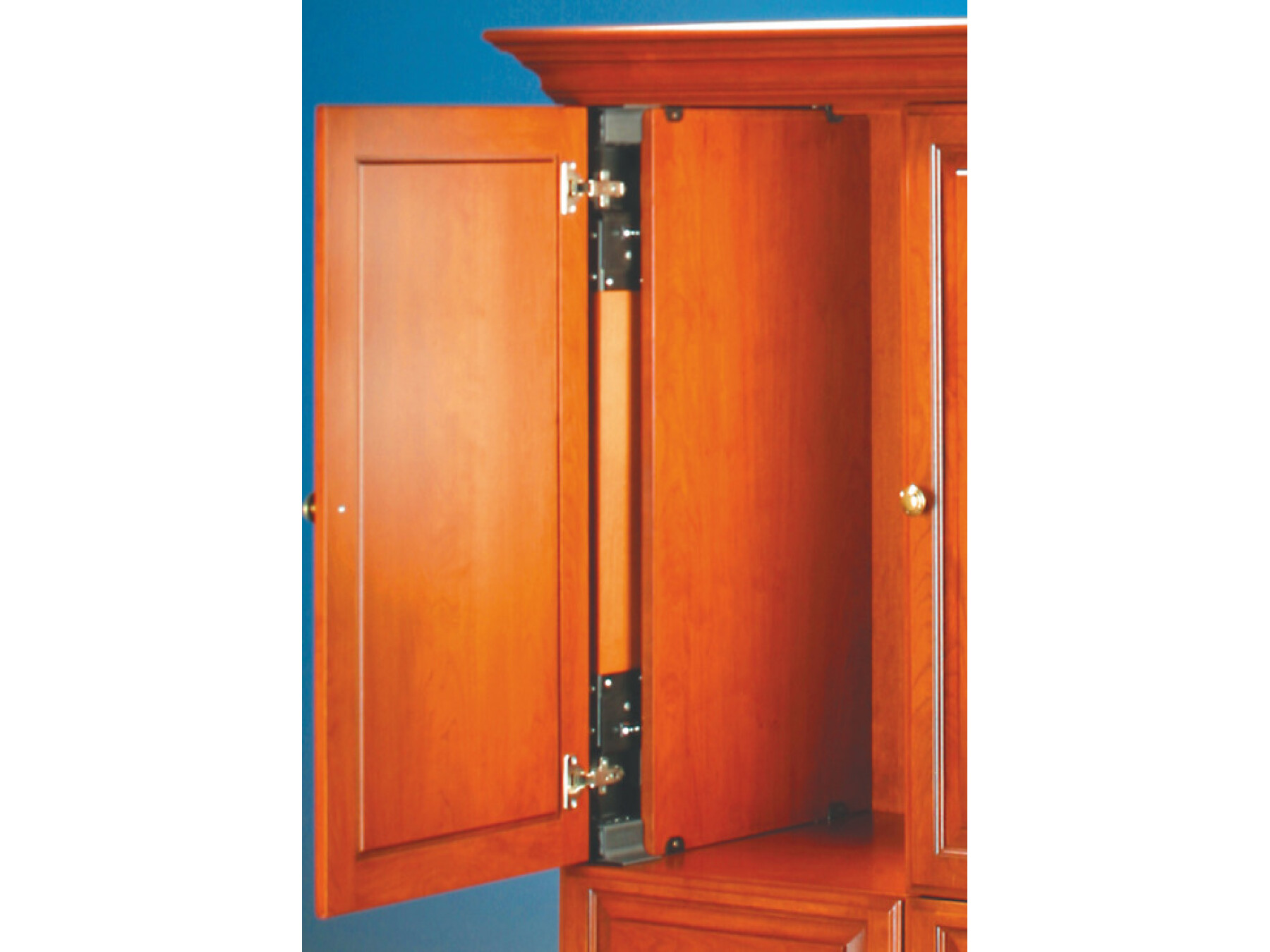

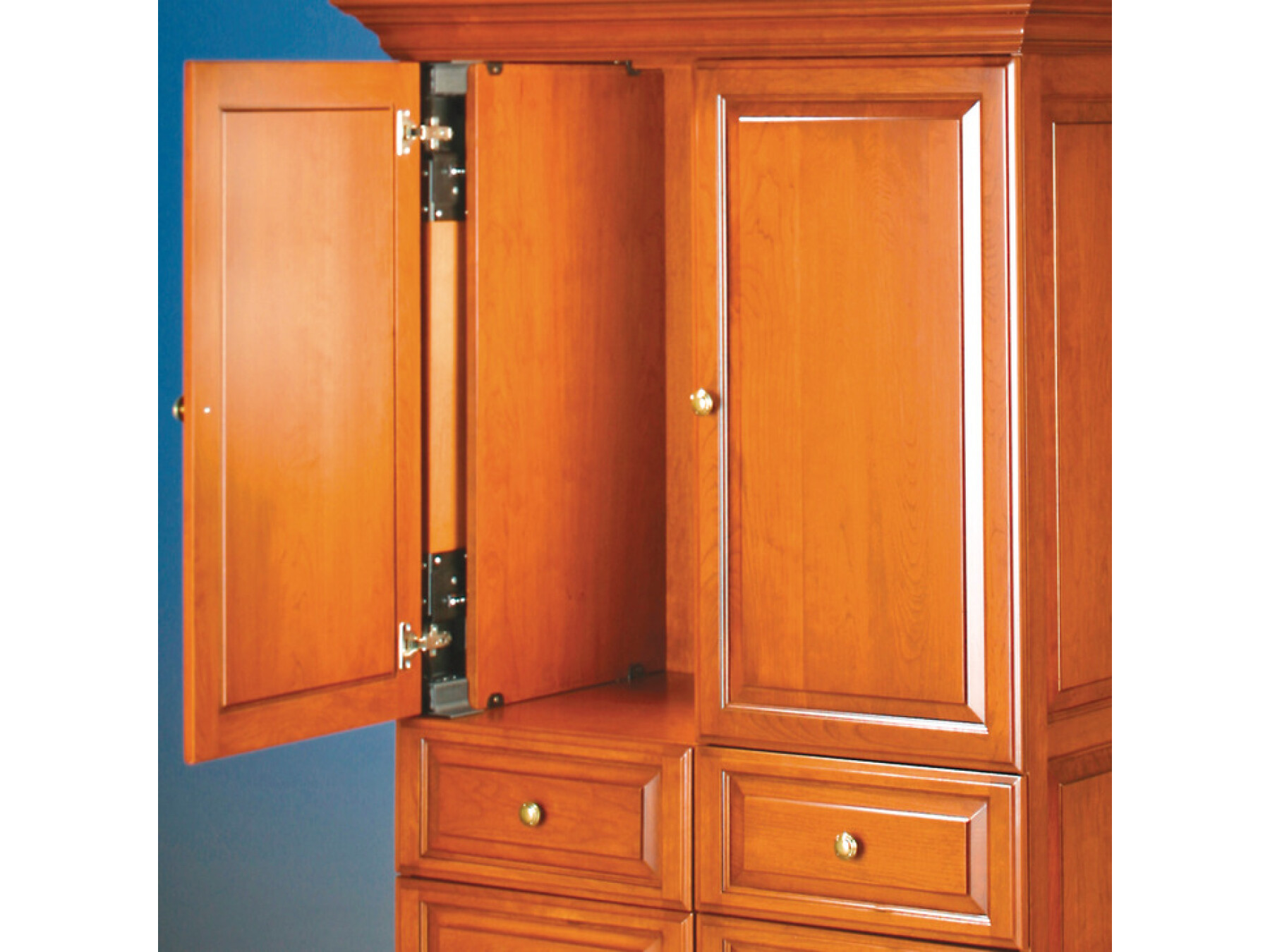

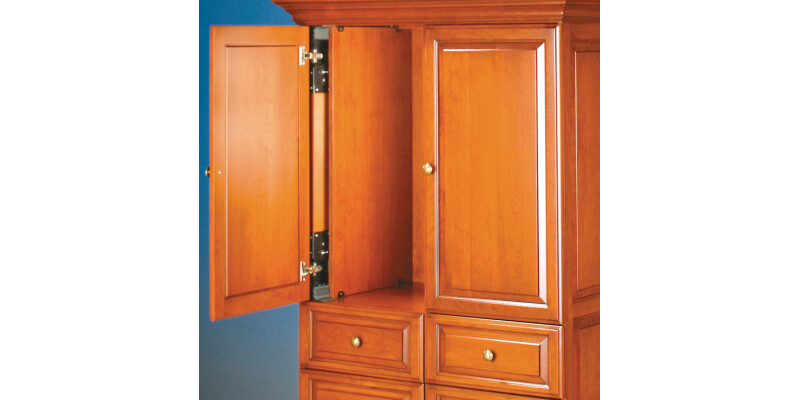

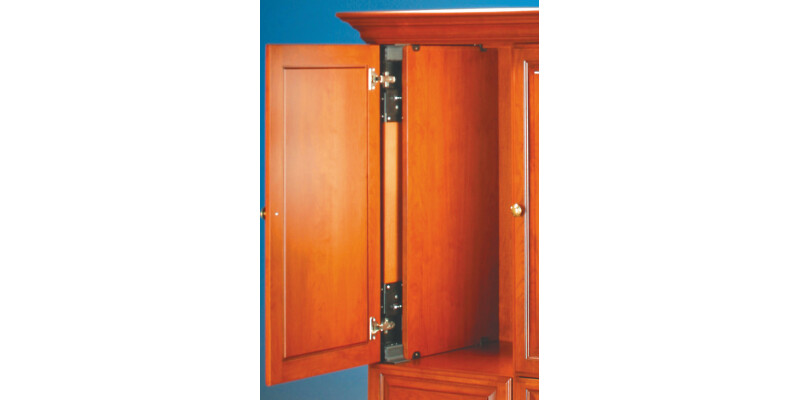

Slide rollers run across the back of the doors allowing for the use of sculptured doors, applied moldings, or raised panels

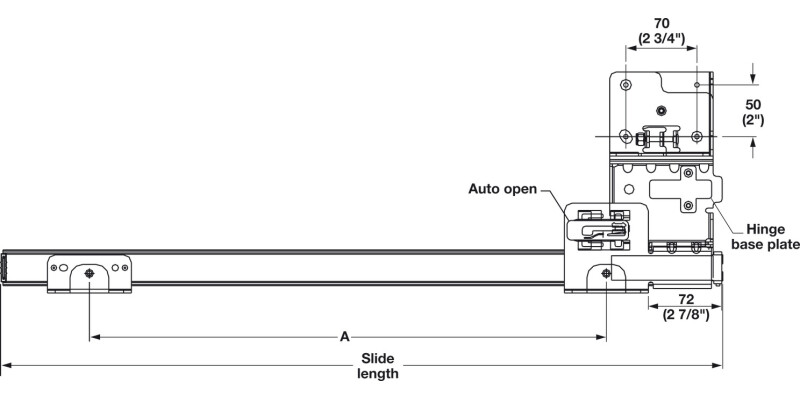

Auto open feature pushes cabinet doors open the last 32 mm of travel

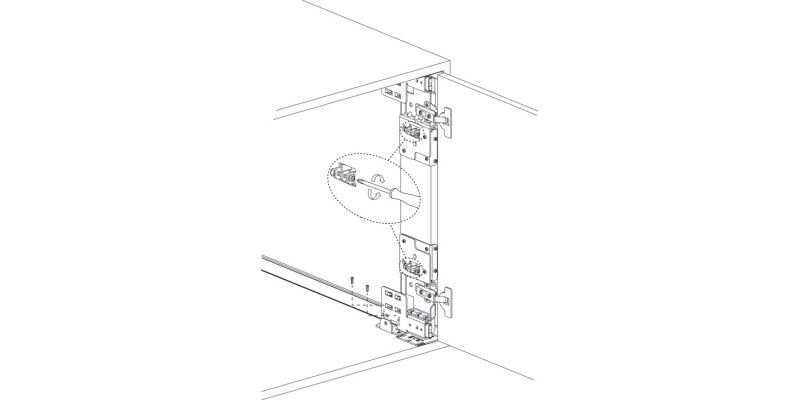

Anti-sag adjustment feature allows for the vertical adjustment of the door, assuring smooth opening and closing

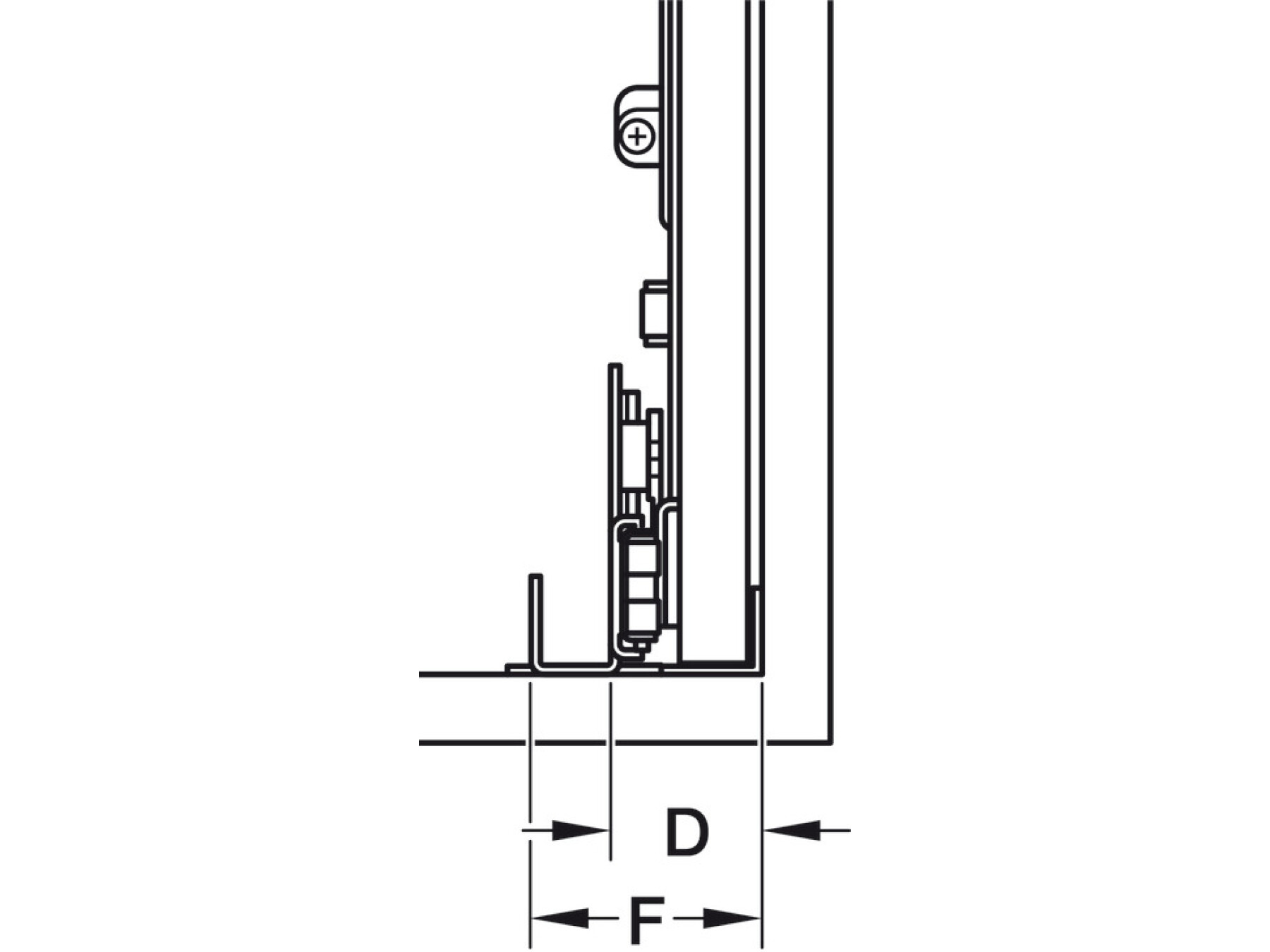

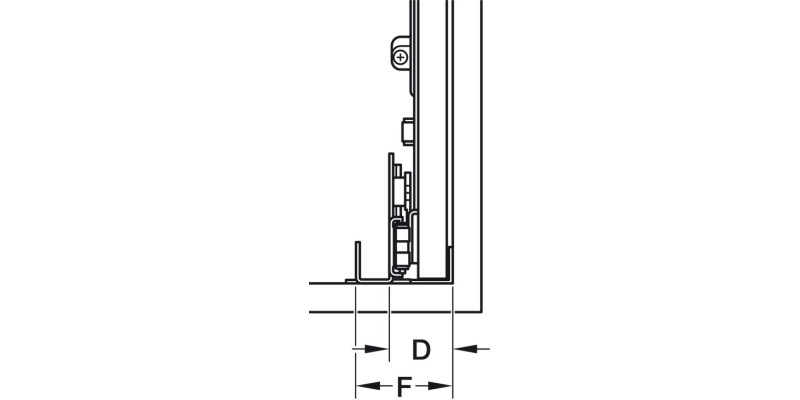

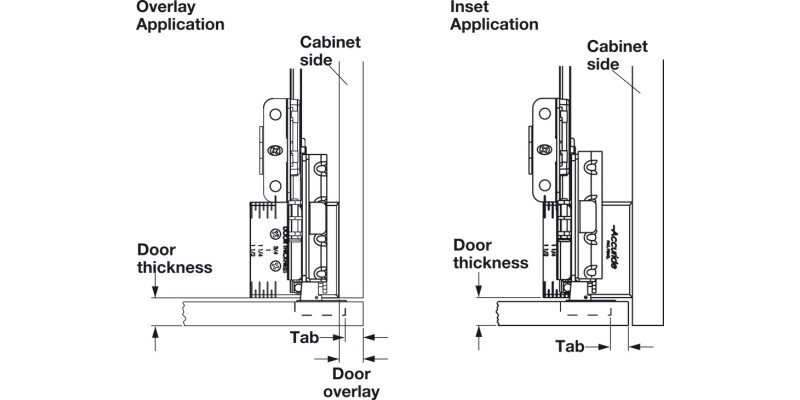

Door thickness mm	F mm	D mm
19	65,3	42,7
22	68,4	45,8
25	71,6	49
32	78	55,4
38	84,3	61,7

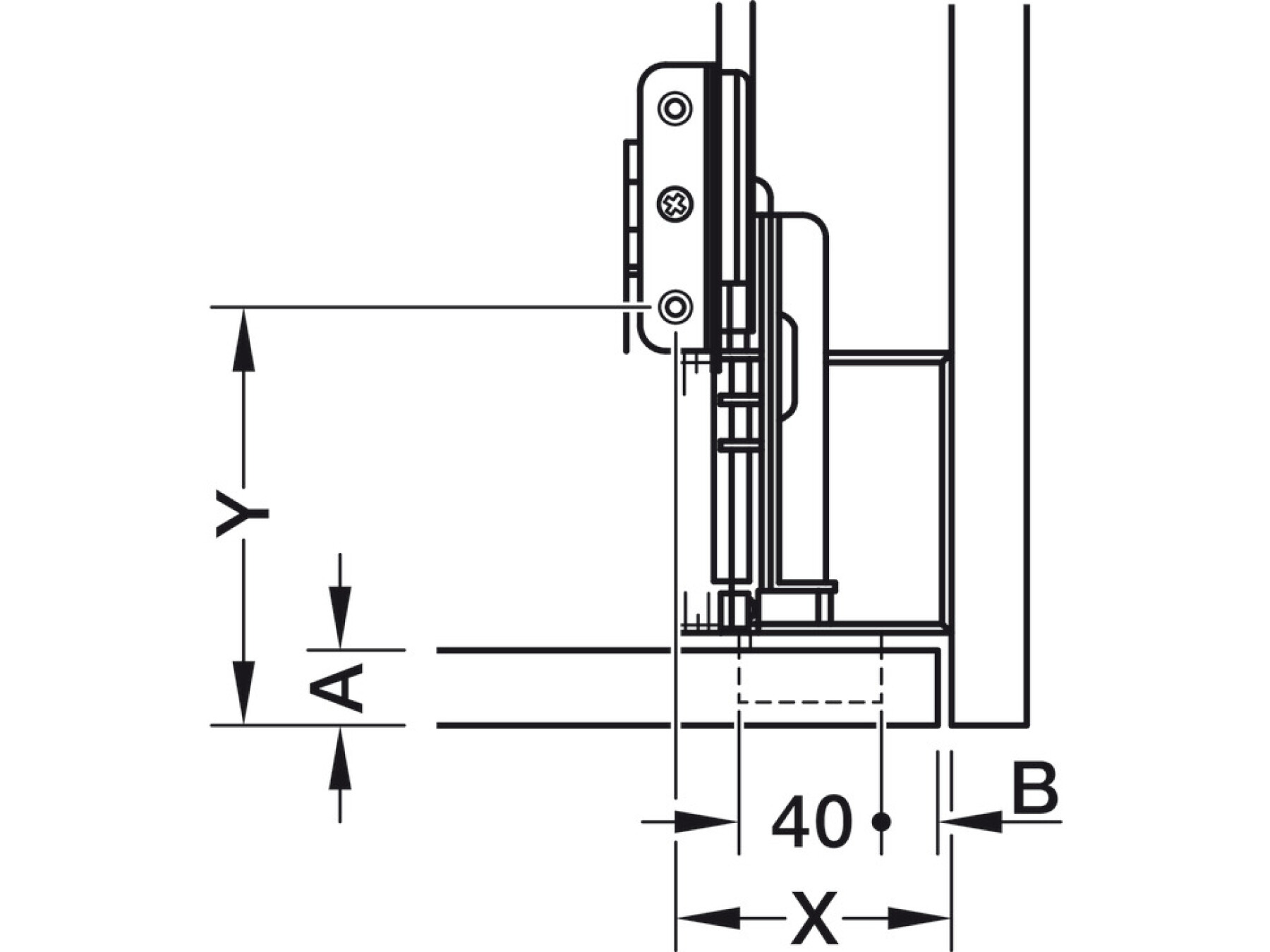

A mm	B mm	C mm
19	12,7	19
22	12,7	16
25	12,7	13
32	12,7	6

A mm	B mm
19	9,5
22	9,5
25	9,5
38	9,5

Specifications

Area of application

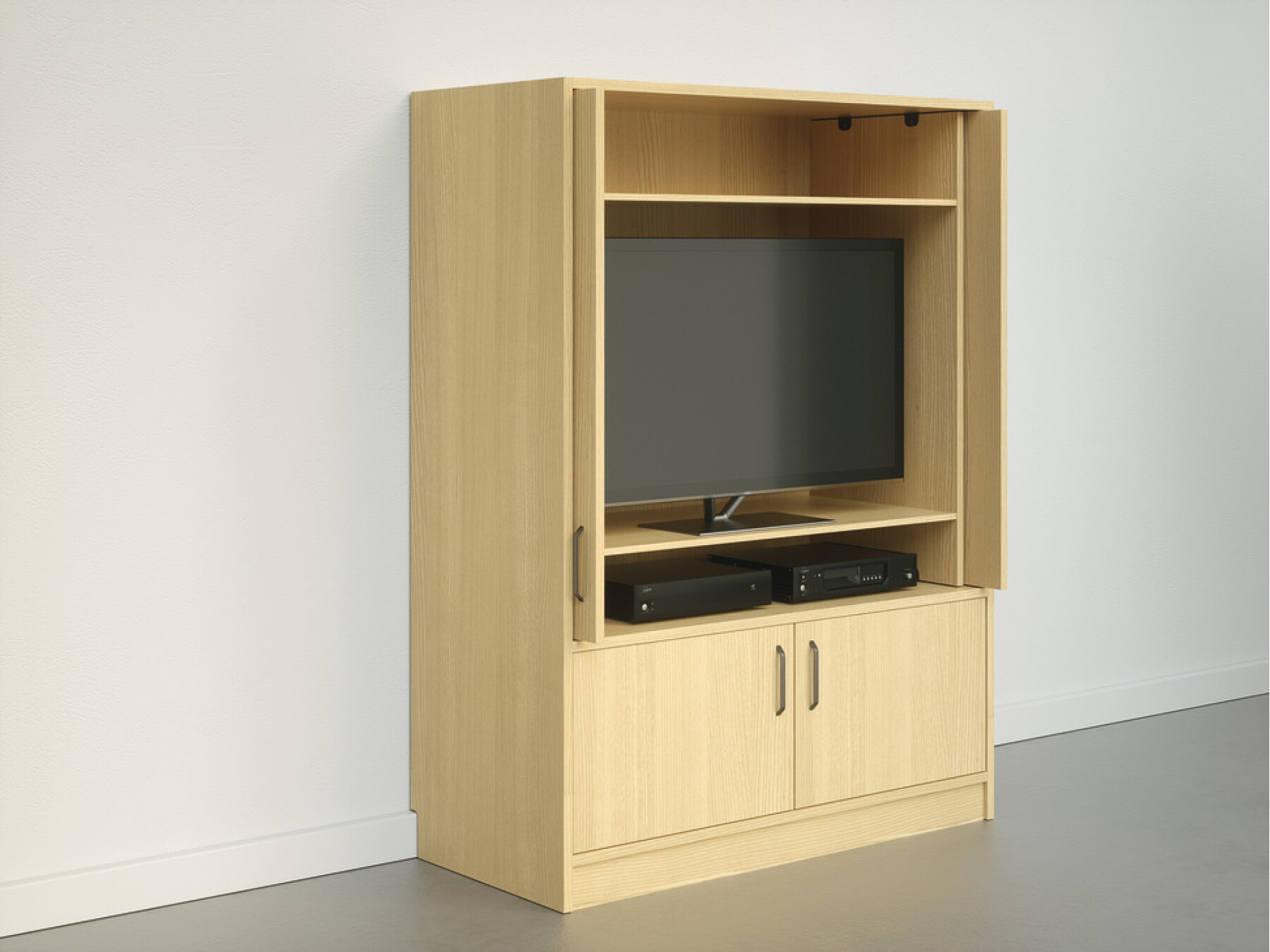

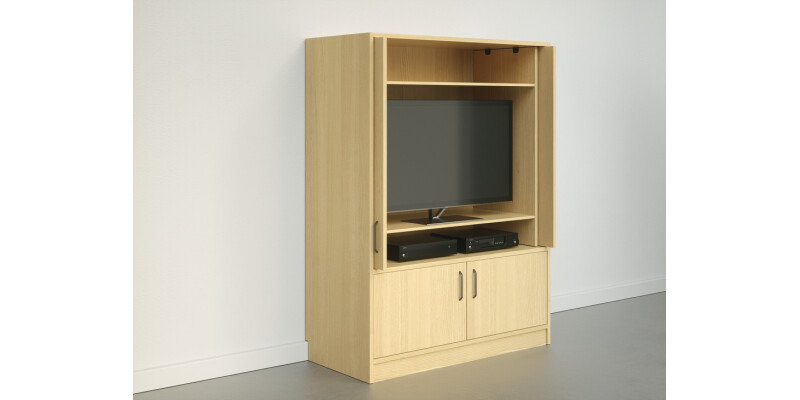

Inset and overlay cabinet doors

For door material

Wood

Set

Set with tracks

Number of door leaves per set

1.00

For door width

≤610 mm

For door height

≤1,065 mm

For door weight

≤14 kg

For door thickness

19 – 38 mm

Material/finish

Steel, Black, Zinc plated

Installation

Screw fixing

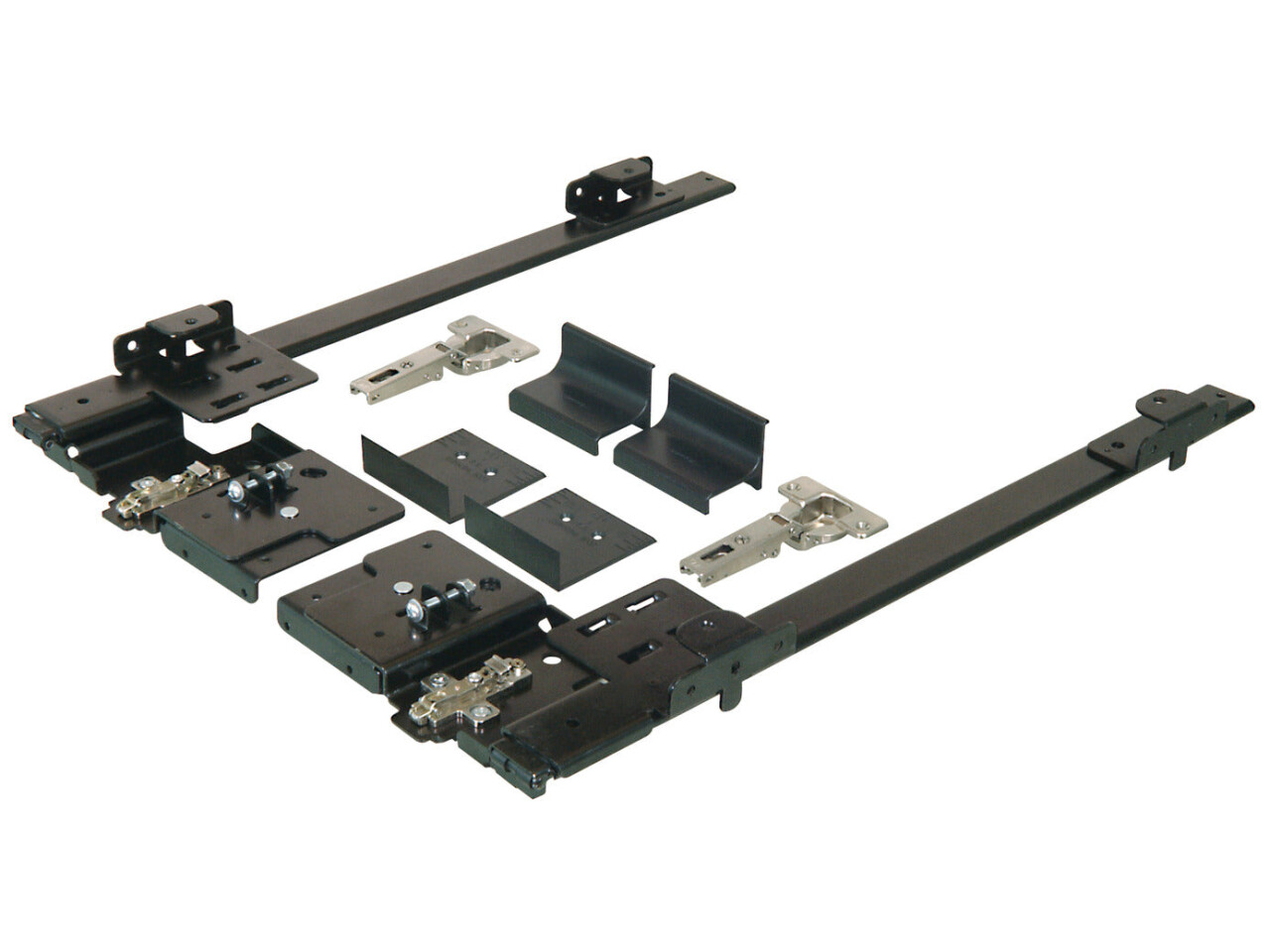

Supplied with

1 pair of runners
2 mounting brackets
2 concealed hinges (40 mm)
2 mounting plates
Fixing material
