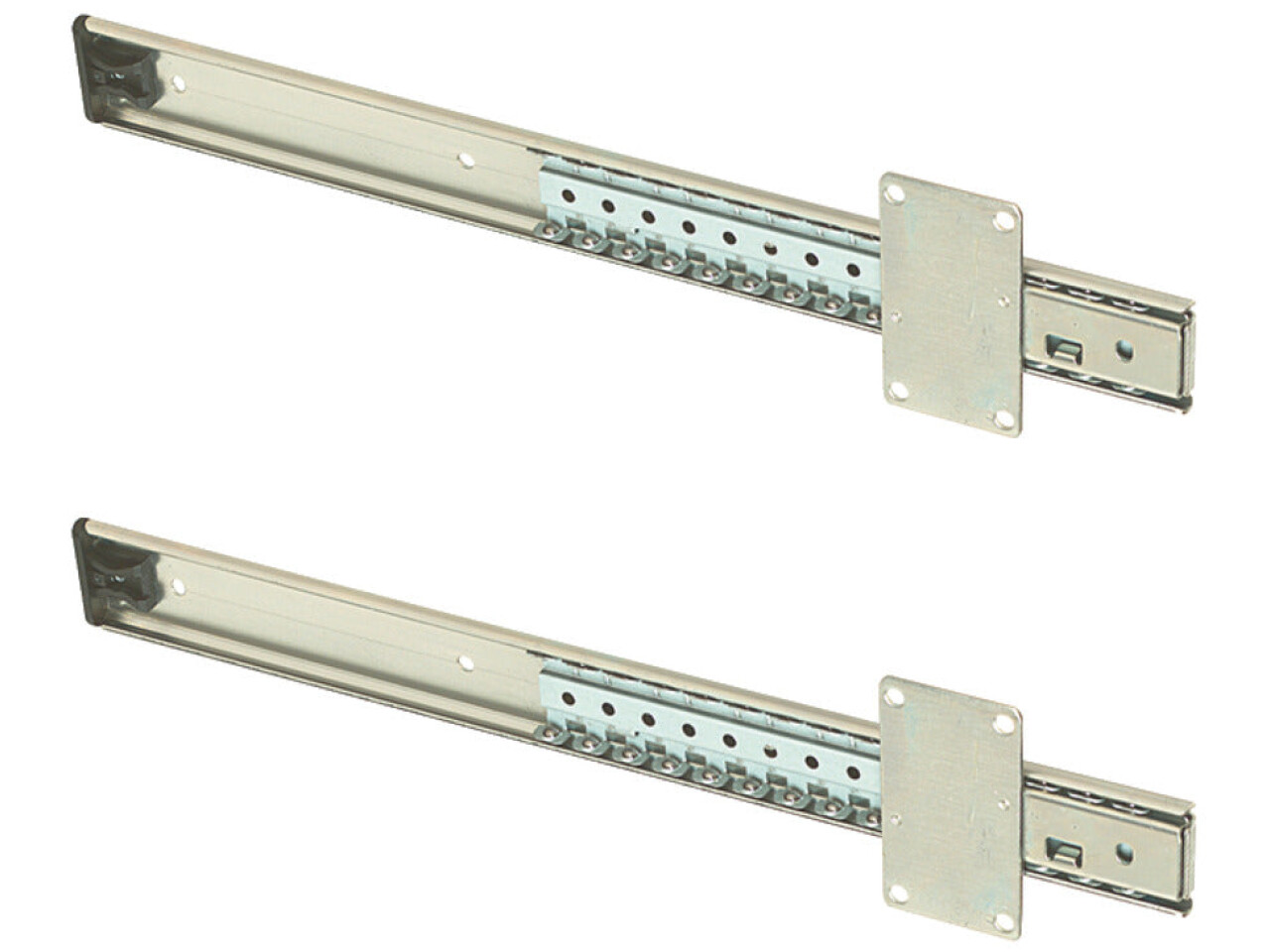

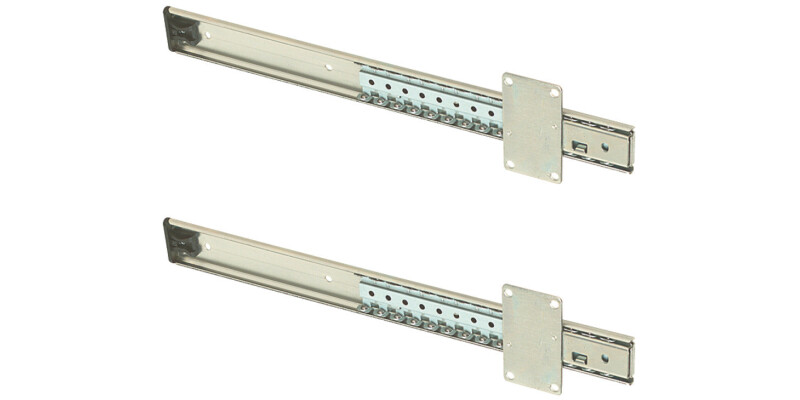

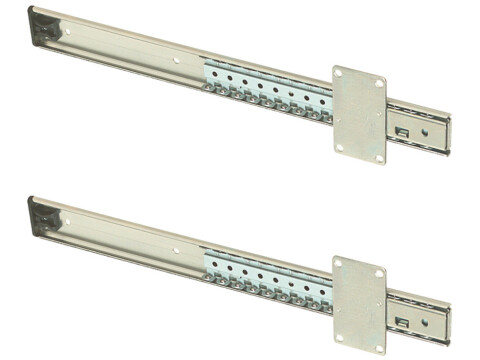

Accuride 1312 Pivot Sld Dr Run BZP 550mm
Part Number: 408.08.553
For horizontal or vertical use, Slide length 550 mm
Price:
£37.55
Per Item
Unhanded designQuiet and easy movementRobust mounting plate for ease and security of door attachmentMaximum door... Read More
Product Information
Product Details
Unhanded design
Quiet and easy movement
Robust mounting plate for ease and security of door attachment
Maximum door extension allows ease of hinge operation
Specifications
Area of application

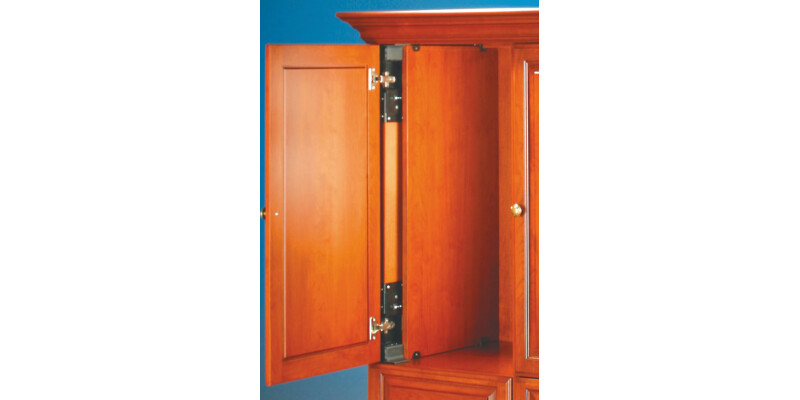

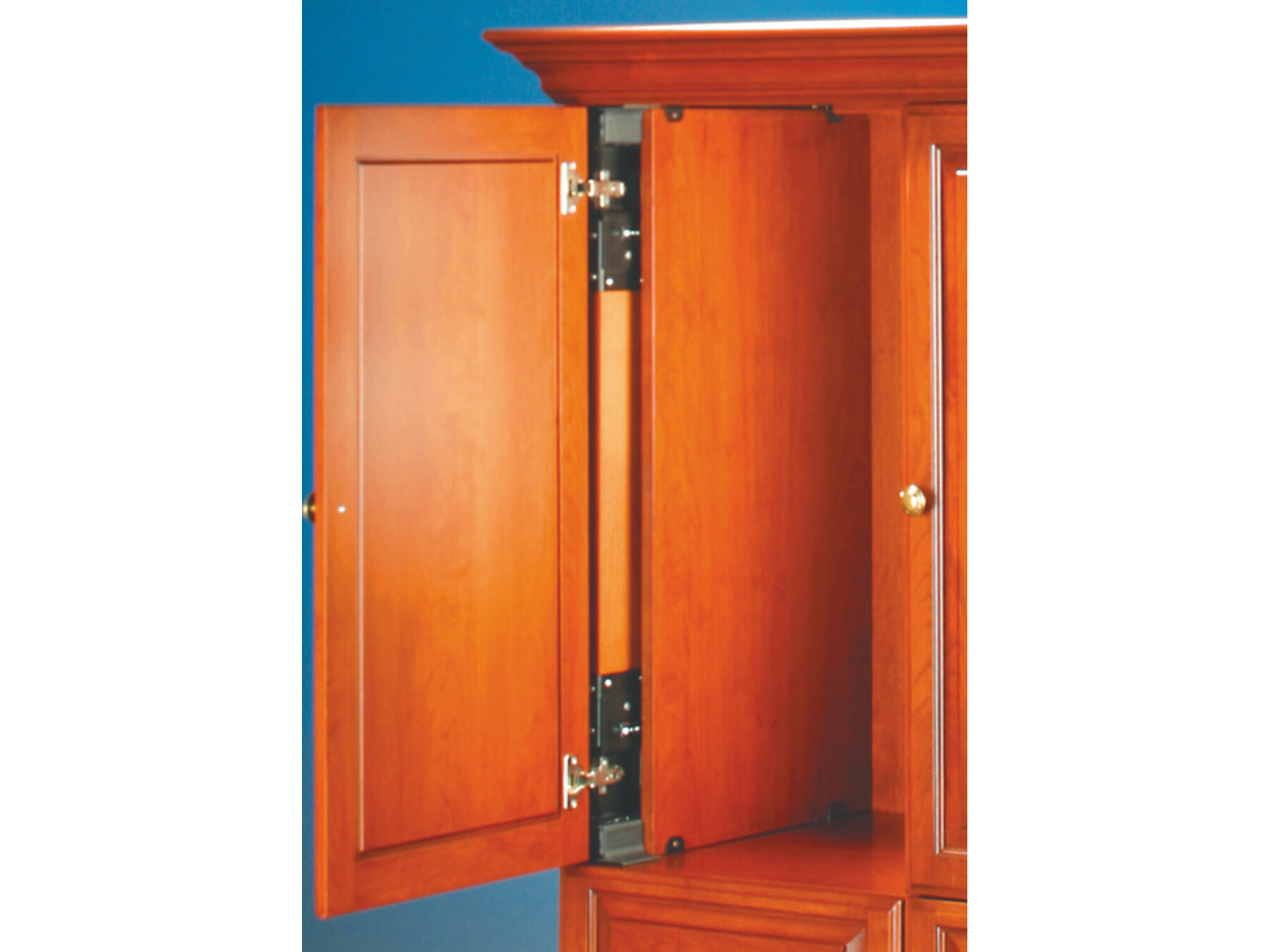

Inset cabinet doors
Material
Steel
Colour/finish
Bright zinc plated
For door weight
5.5 kg
For door height
≤900 mm
For door thickness
16 – 20 mm
Installation
Screw fixing
Order reference
Hinges and mounting plates to be ordered separately
