Free Flap 1.7 Comp Set A Anthracite
Convenient handling, even with heavy flapsMinimum opening resistanceFlap locks in any position (multi-position... Read More
Product Details
Convenient handling, even with heavy flaps
Minimum opening resistance
Flap locks in any position (multi-position stop)
Smooth and soft closing action
Stylish and compact design provides easy access to cabinet hangers and is suitable for use in furniture with narrow depth
Easy, efficient and time-saving processing
Stylish cover caps in grey and white
Sustainable: Fitting also available with biologically degradable cover caps (optional)
For additional measurements table, please see cat. page
Order reference
For flaps with 20 mm aluminium frame, please order adapter separately
Order Varianta Ø 5 countersunk screws separately
Push to open catch available
Supplied with
Set includes:
2x Stay flap fittings
2x Cover caps for fitting
2x Screw-on brackets for wooden flaps or flaps with aluminium frame, from frame width 45 mm
1x Paper drilling template
Installation instructions
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
The choice of the stay flap fitting and door catch model for handle-free front panels depends on the cabinet height and flap weight. For selecting the model please see sample measurements tables.
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Area of application
For small, one-piece flaps made of wood or with aluminium frame
Material
Fitting: Steel
Cover cap: Plastic
Colour/finish
Fitting: Nickel plated
Lid material
Flap type

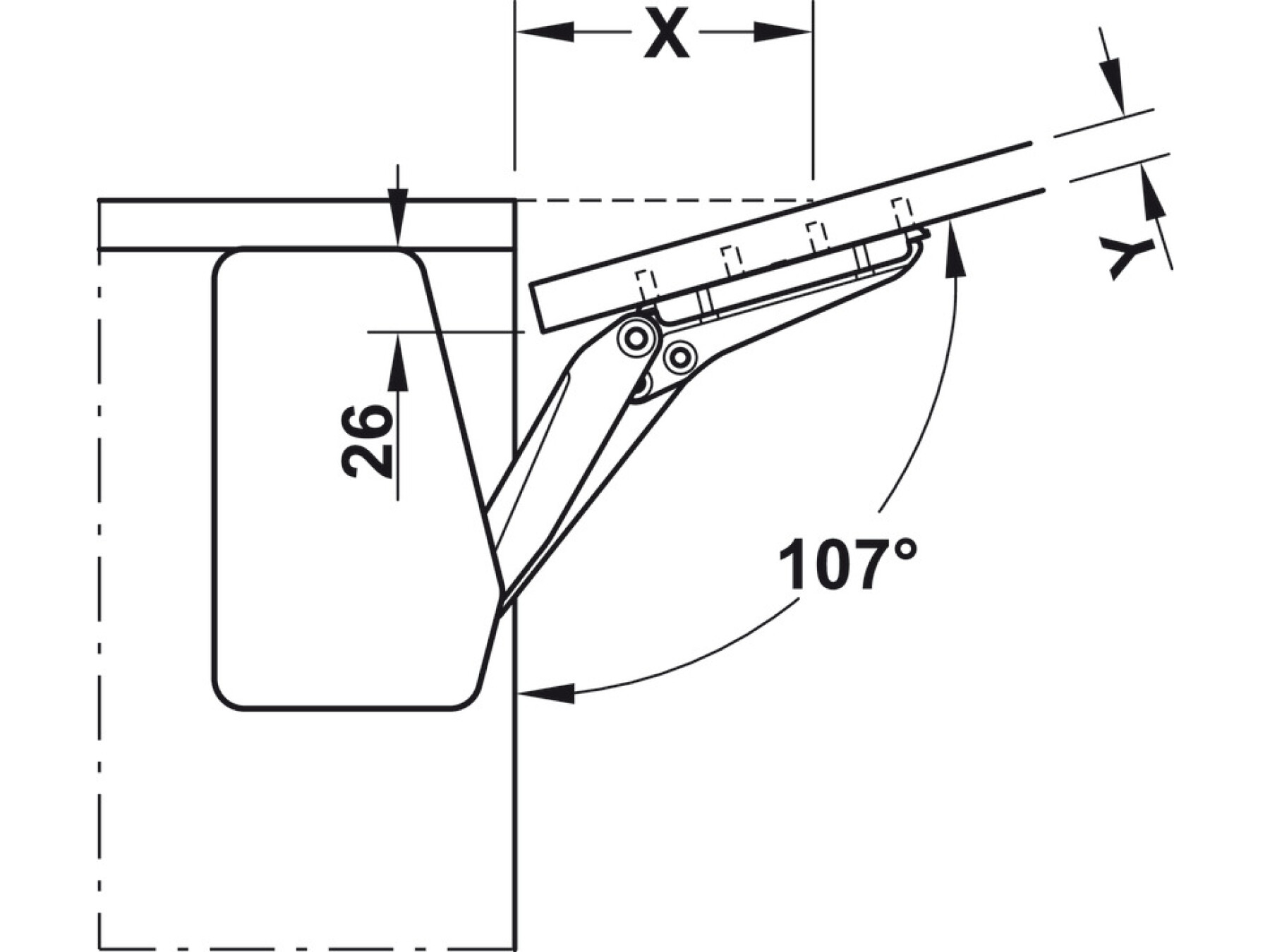

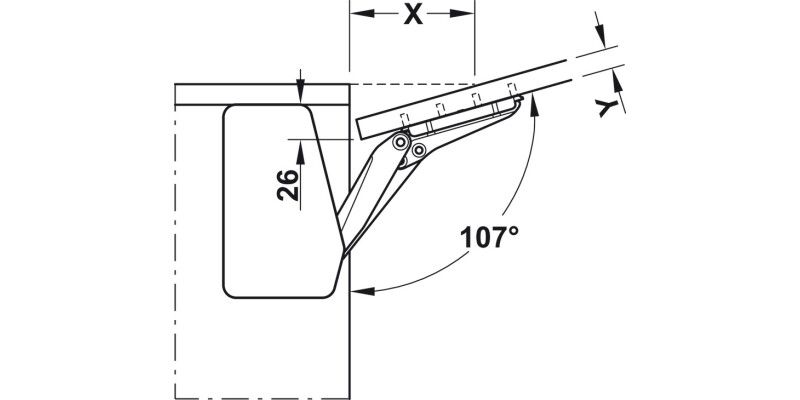

Opening angle
For cabinet height
Adjustment facility

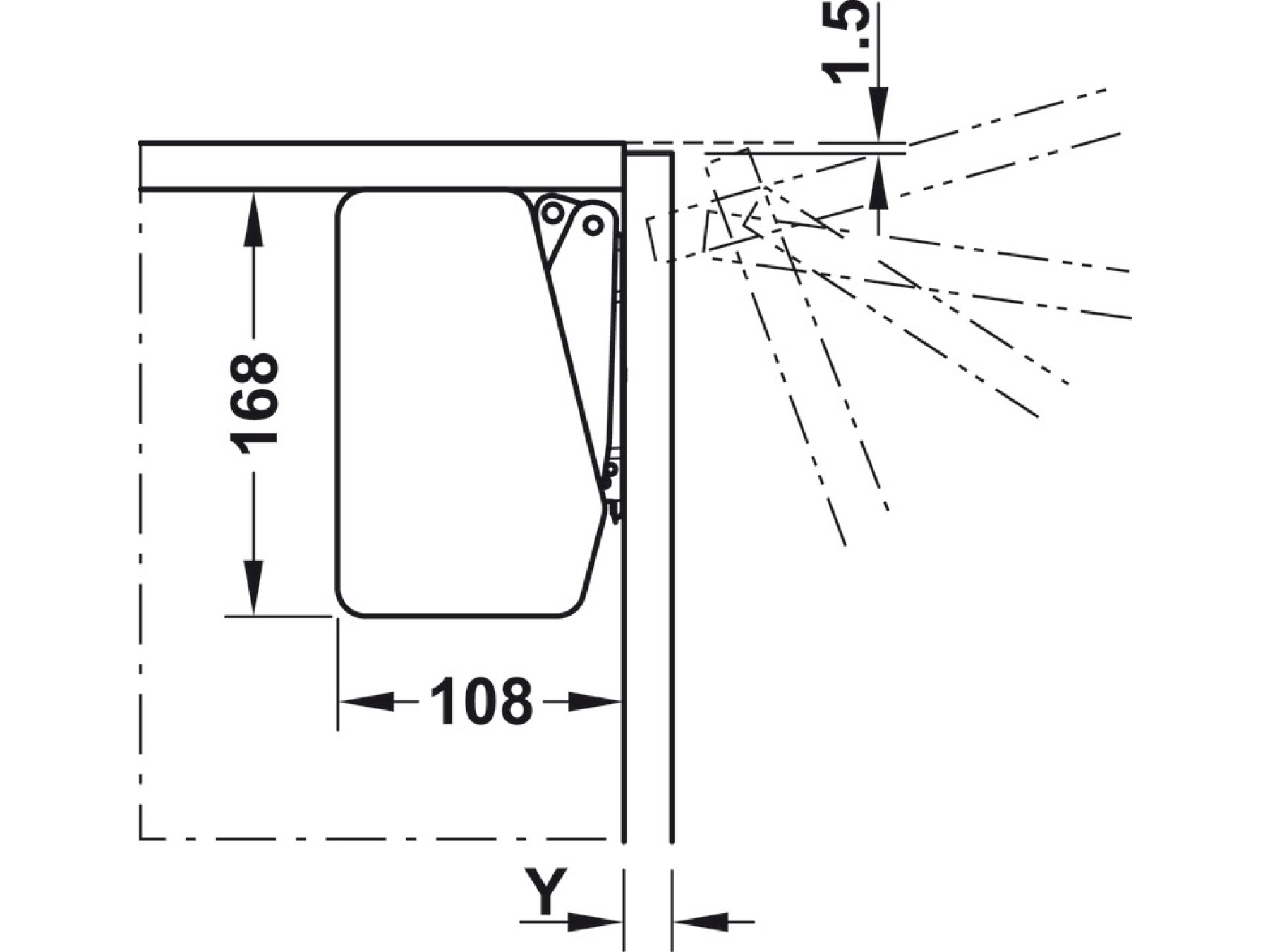

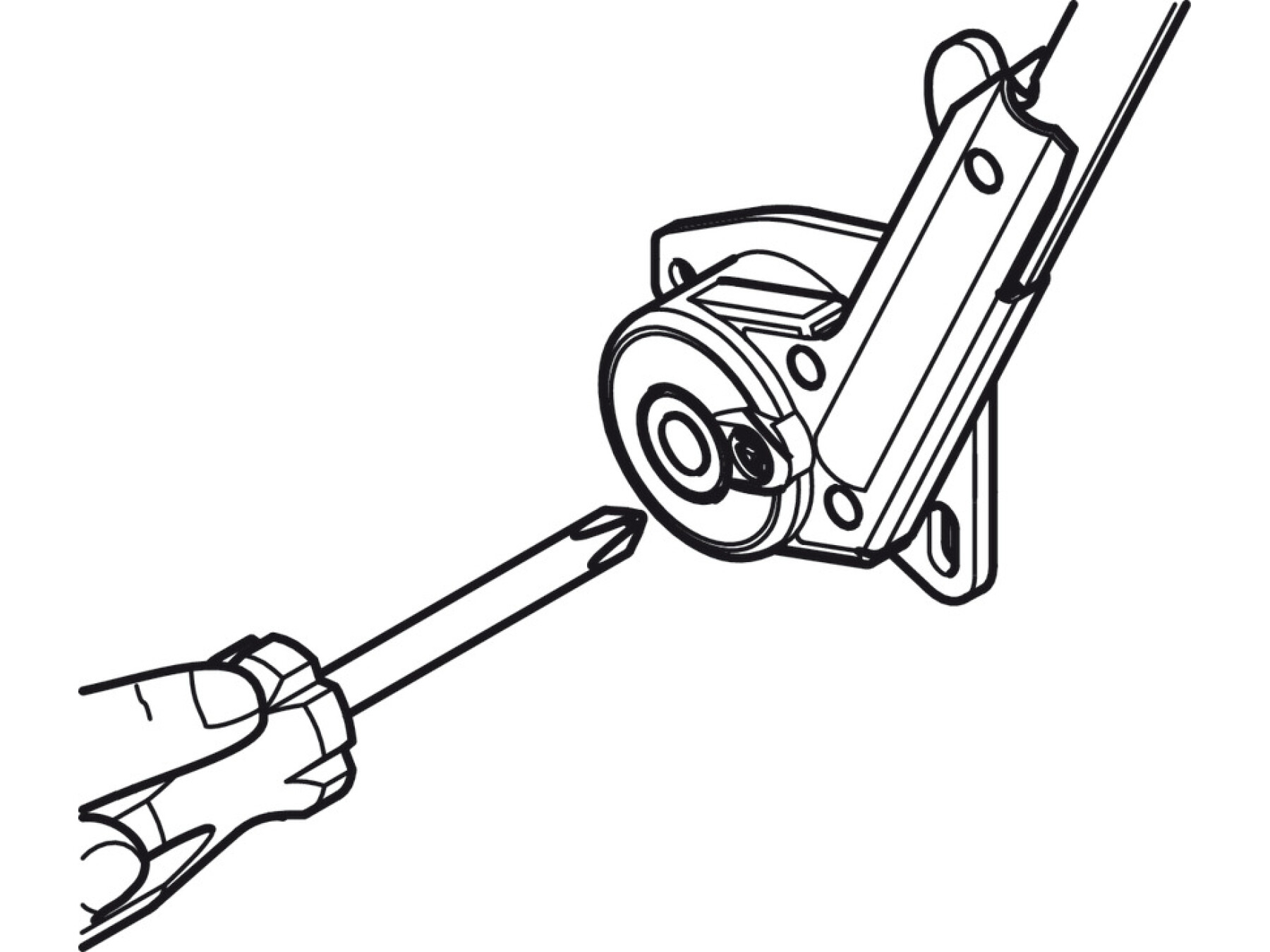

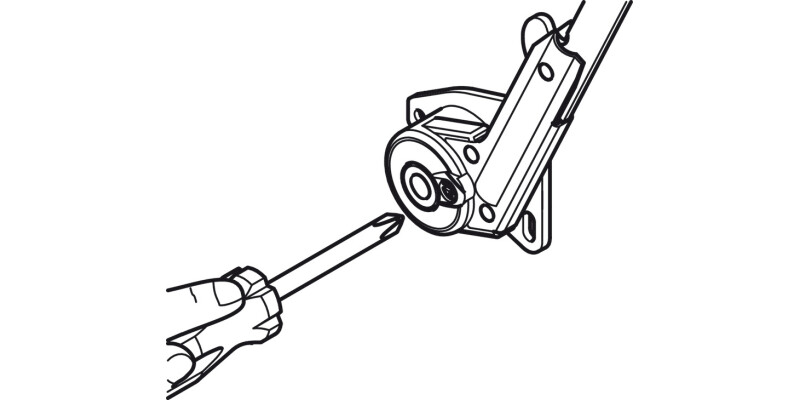

Height/side/tilting angle of front ±1.5 mm, holding power

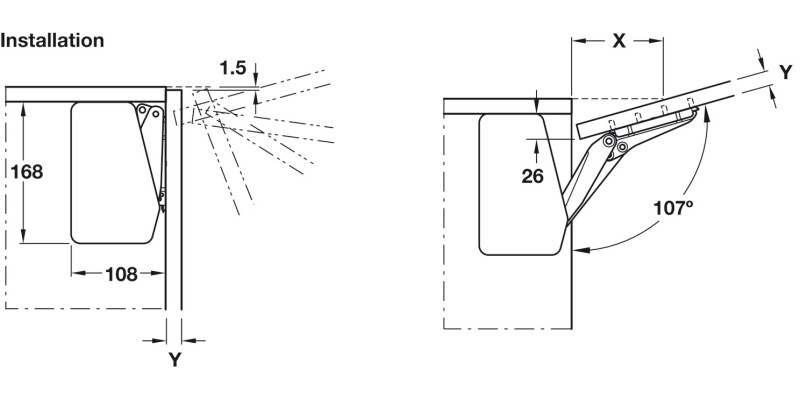

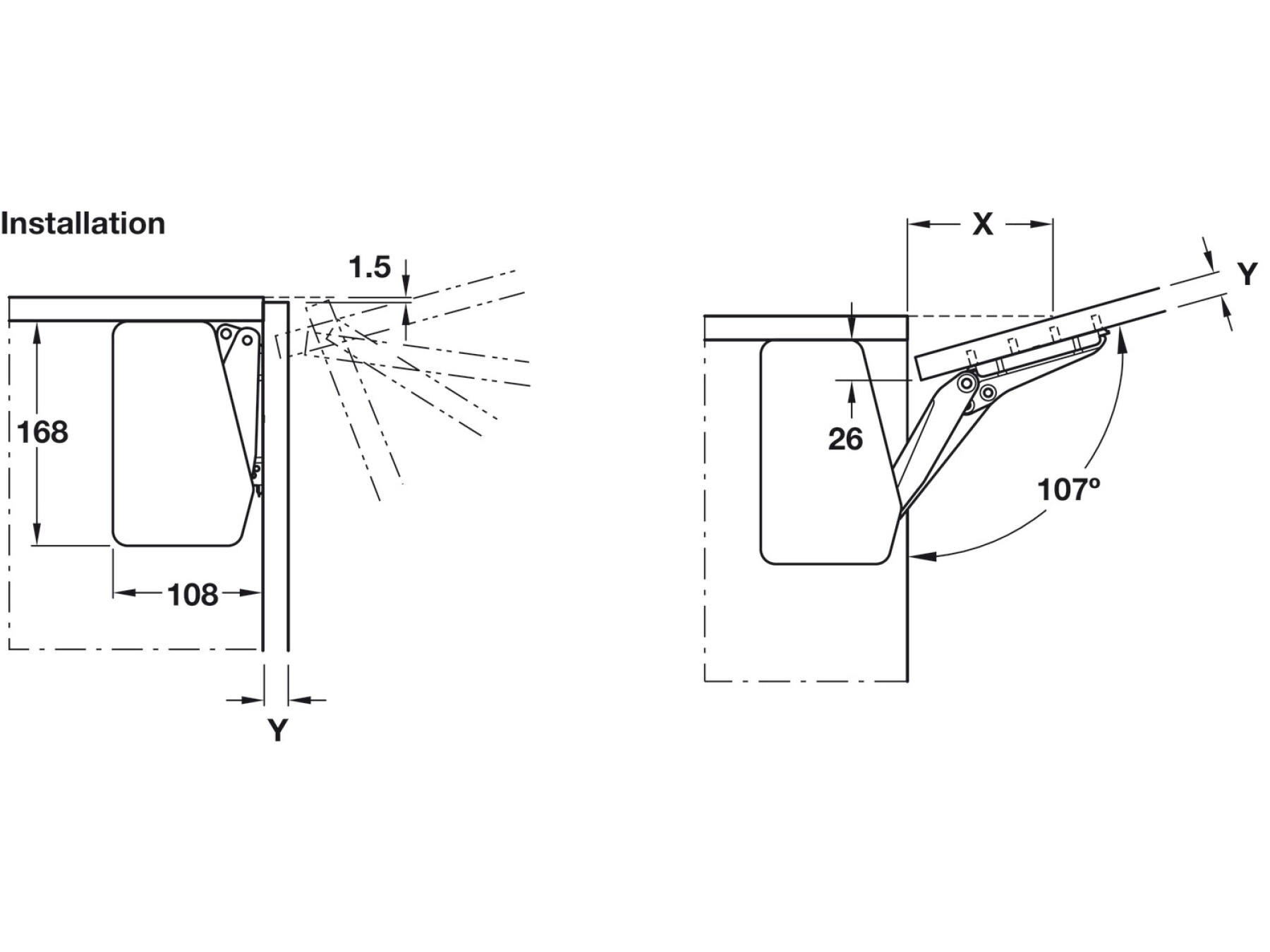

Installation
Fitting for screw fixing
Flap clips onto pre-mounted screw on brackets
Installation note
Opening angle can be reduced to 90° using opening angle restraint
