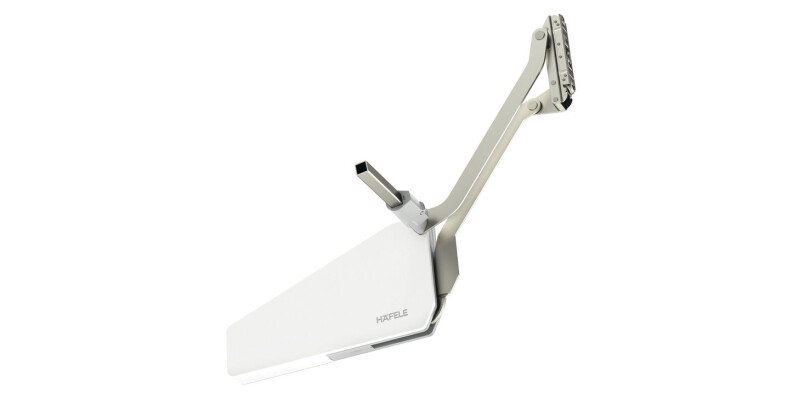

Free Up Parallel 380-500mm 3.4-6.7kg
Free Up - Maximum access to cabinet Hardly any space required in the room towards the front. Can be used in... Read More
Product Details

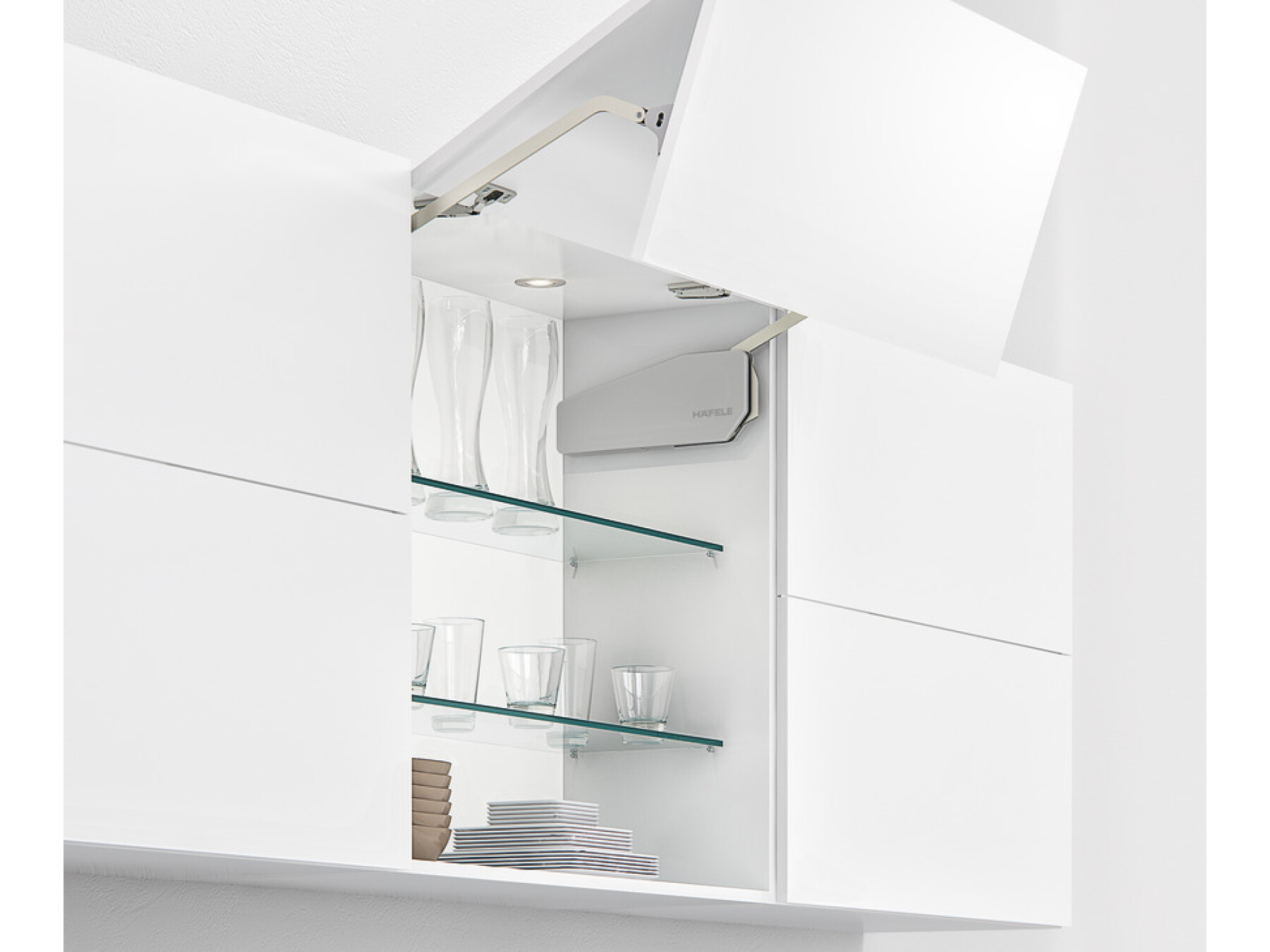

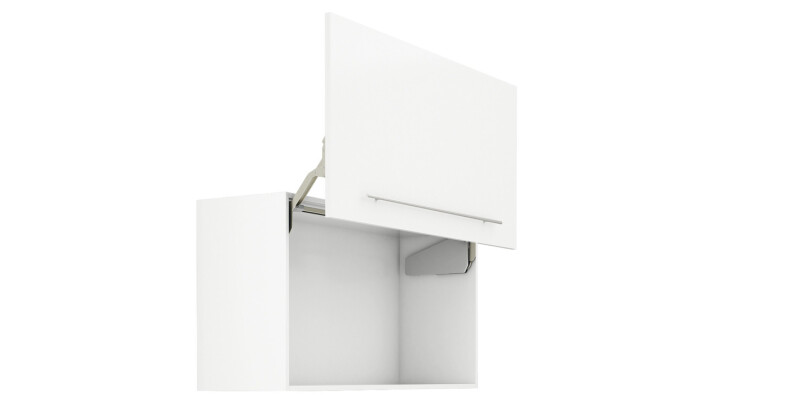

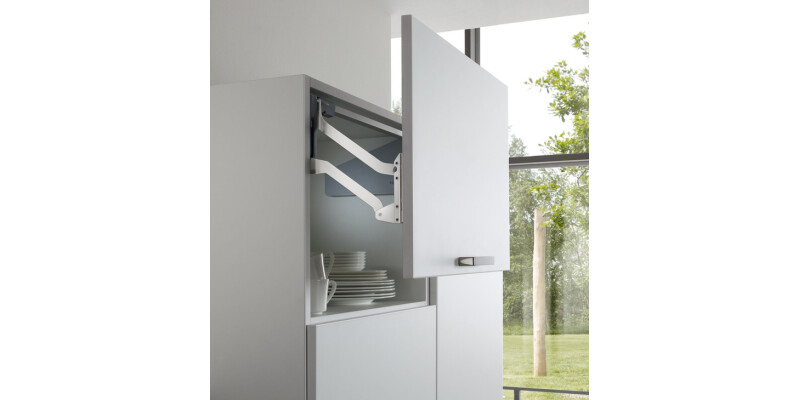

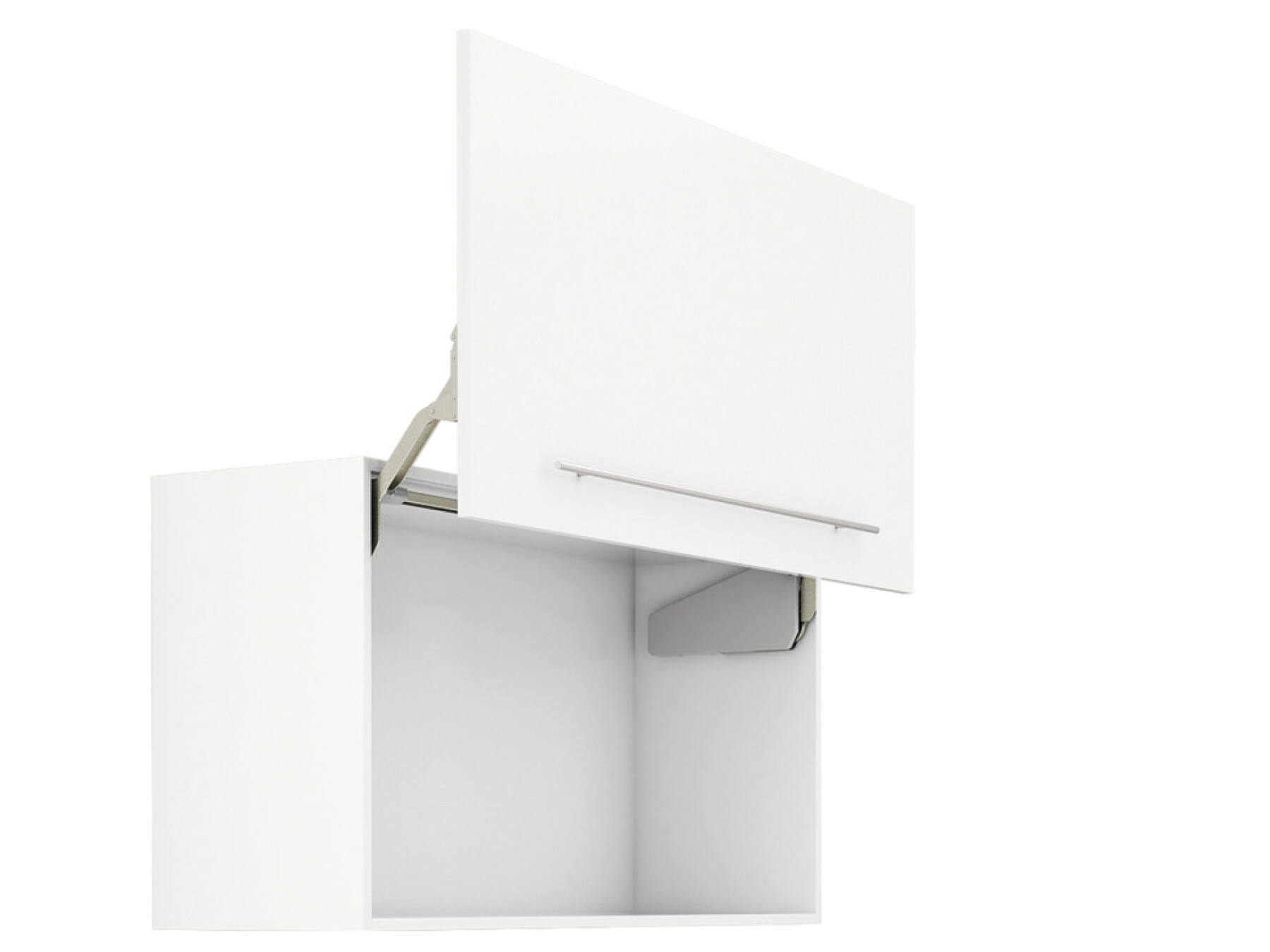

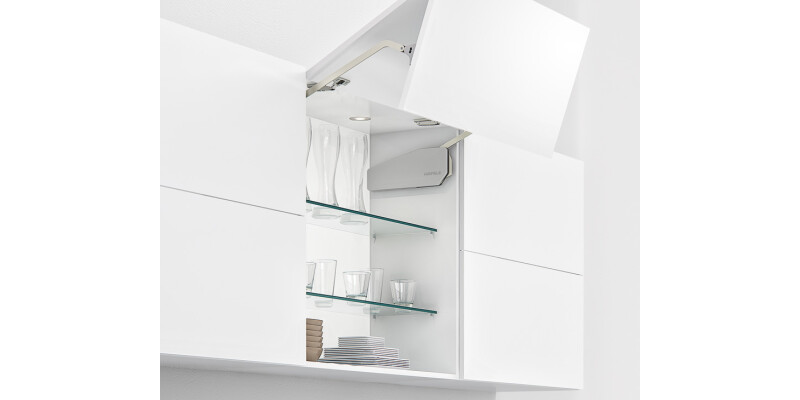

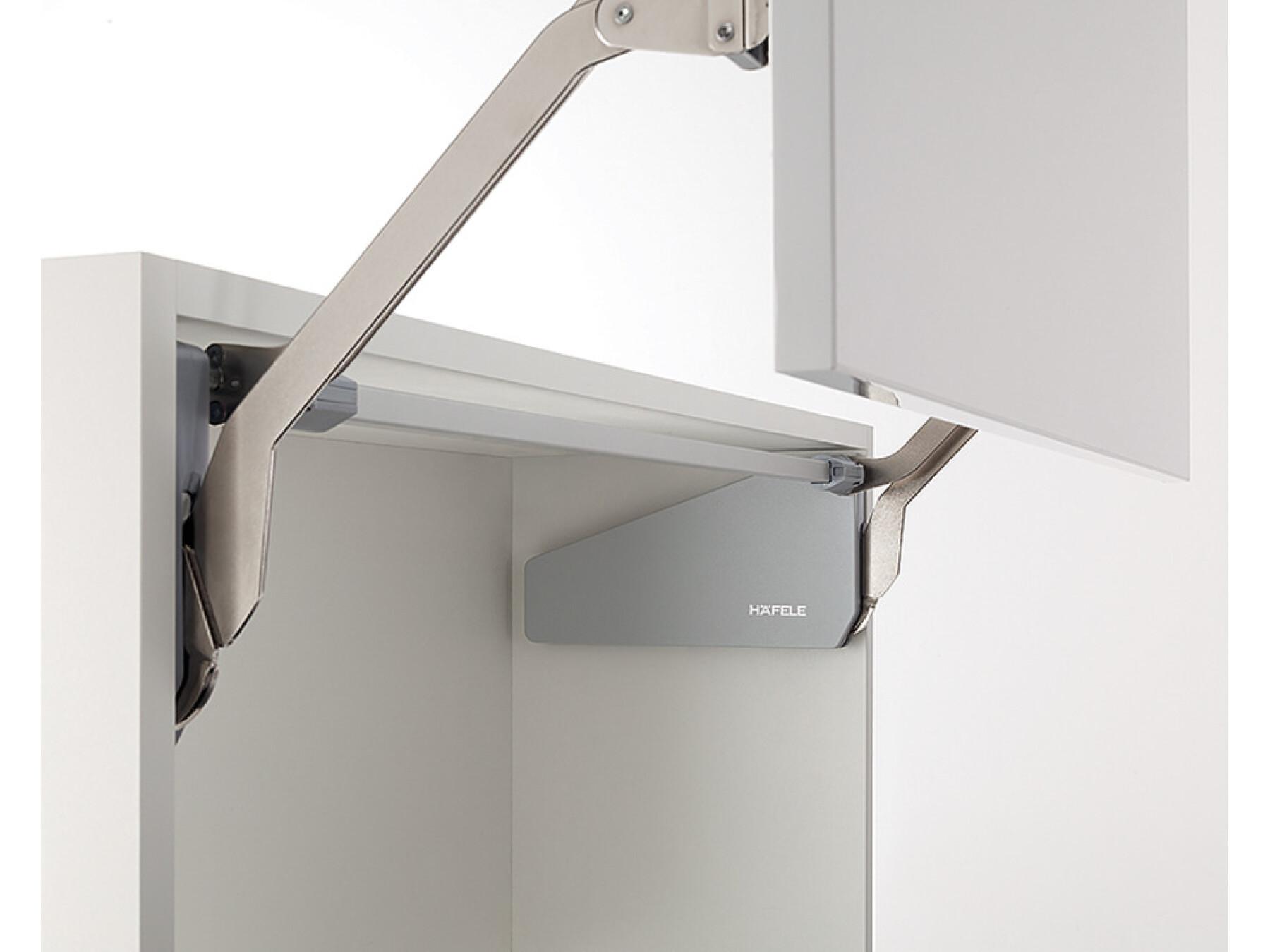

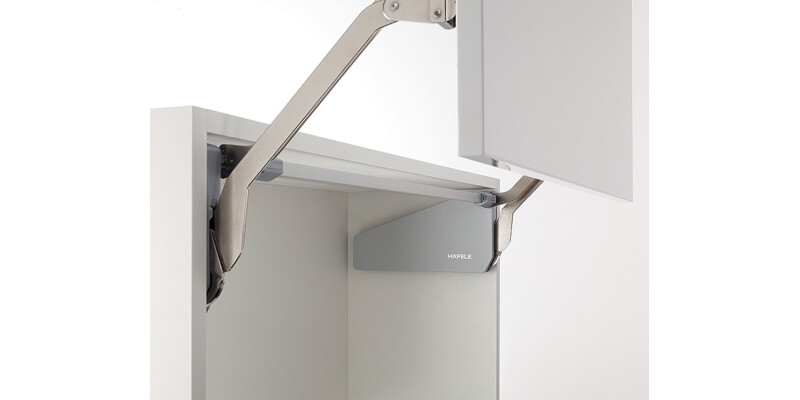

Free Up - Maximum access to cabinet
Hardly any space required in the room towards the front. Can be used in combination with upper-mounted cabinets or front panels. Creates practical storage compartments in tall cabinets. Cabinet contents are extremely easy to access
All of the advantages of the Free family
Time saving installation provided by plugs, pre-mounted euro screws and clip fixing for front panel
Integrated soft close
Order reference
Requires 1x cross rail, please order separately
Order alternative mounting brackets for mounting on on flaps made of glass/aluminium frame separately
Drilling jig available order separately
Order Varianta Ø 5 mm countersunk screws separately
Supplied with

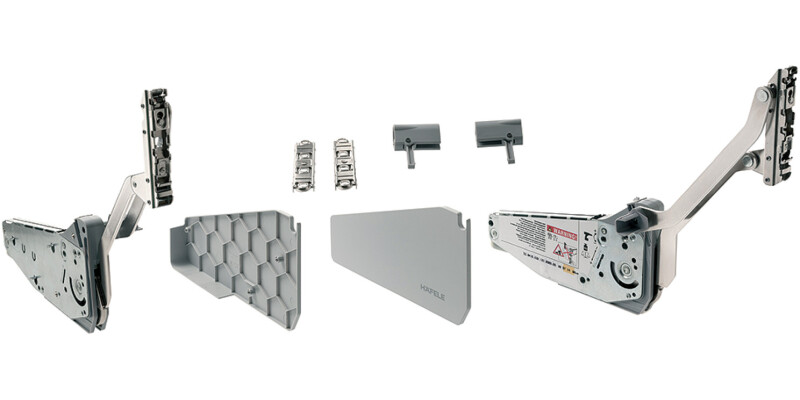

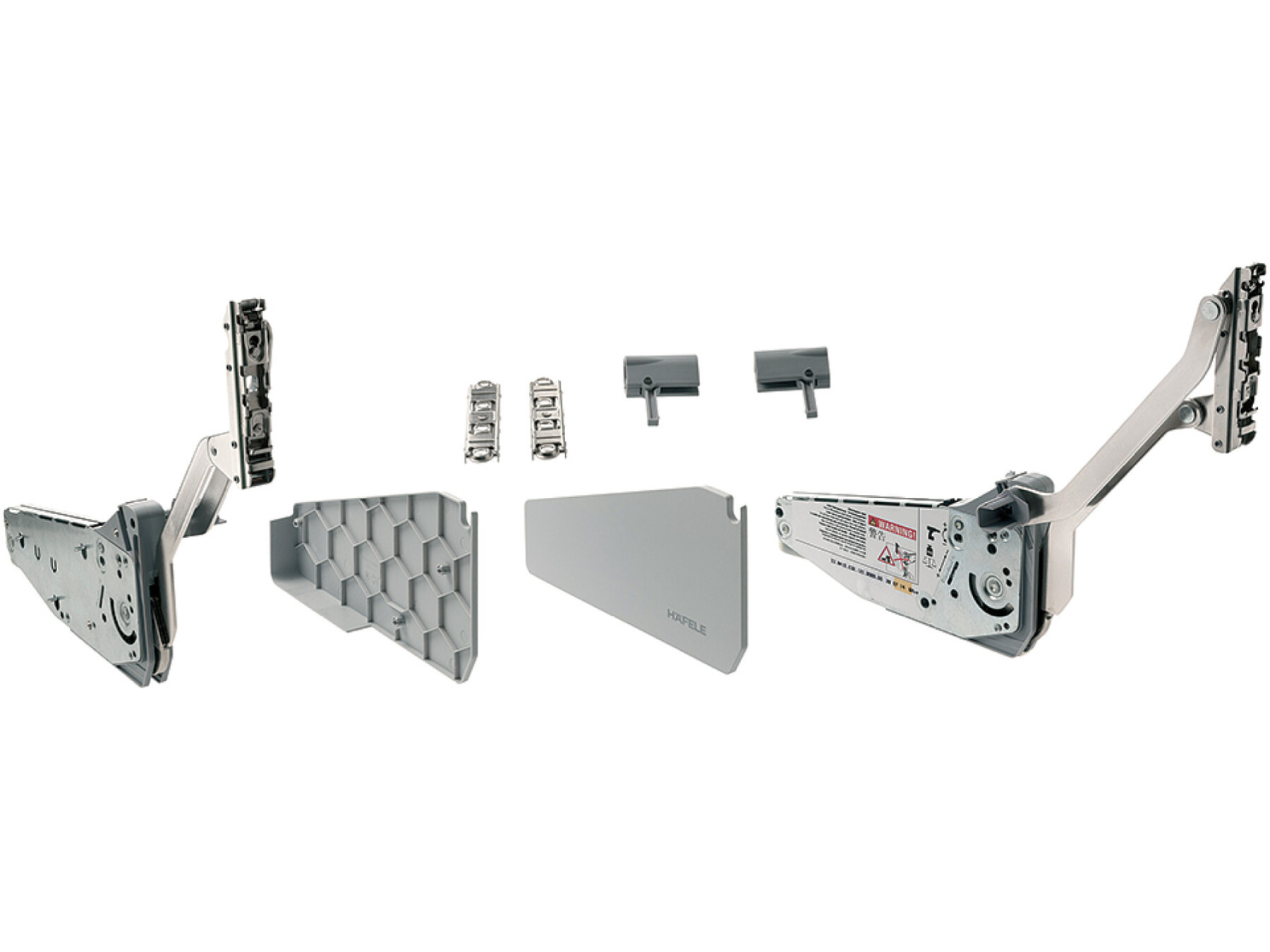

Set includes:

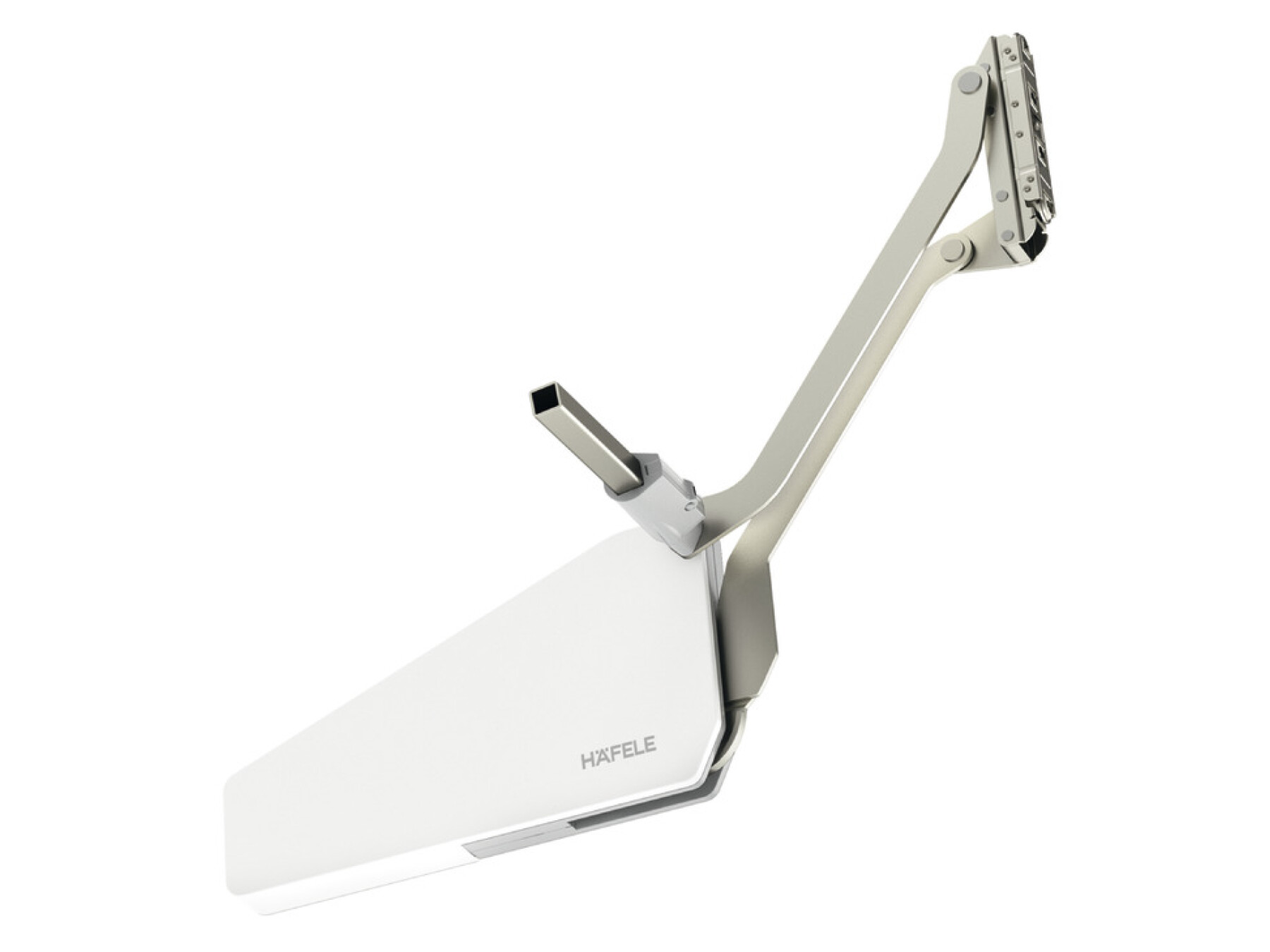

1x Parallel lift up front fitting
2x Cover caps
2x Clip-on brackets for wooded flaps or flaps with wide aluminium
frame
Installation instructions
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Did you know, you can use our Panel Weight Calculator to work out the weight of your panels?
Specifications
Area of application
For one-piece flaps made from wood, glass or with aluminium frame
Material
Fitting: Steel
Cover cap: Plastic
Colour/finish
Fitting: Nickel plated
Cover colour
Grey
Lid material
Flap type

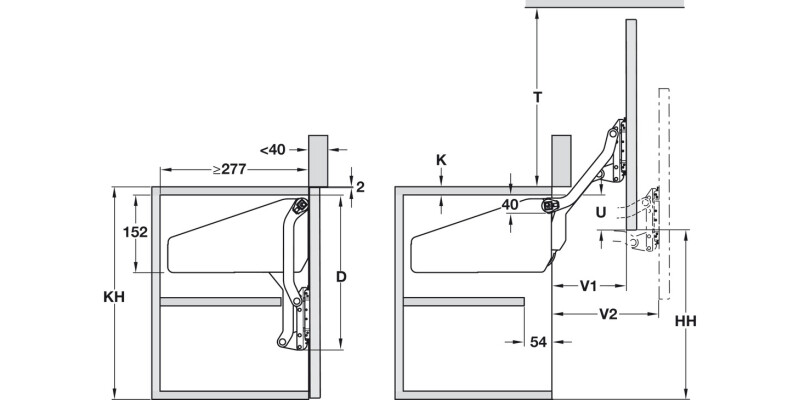

For cabinet depth
Adjustment facility
Height adjustment ±1.5 mm, side adjustment ±1.5 mm, angle of incline ±1.5°, holding power
