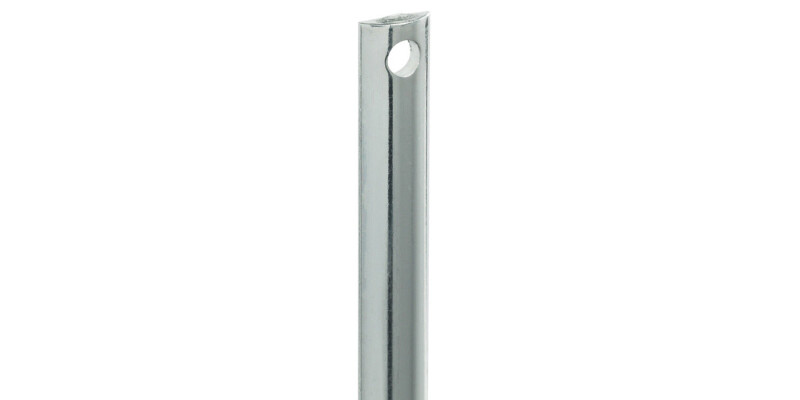

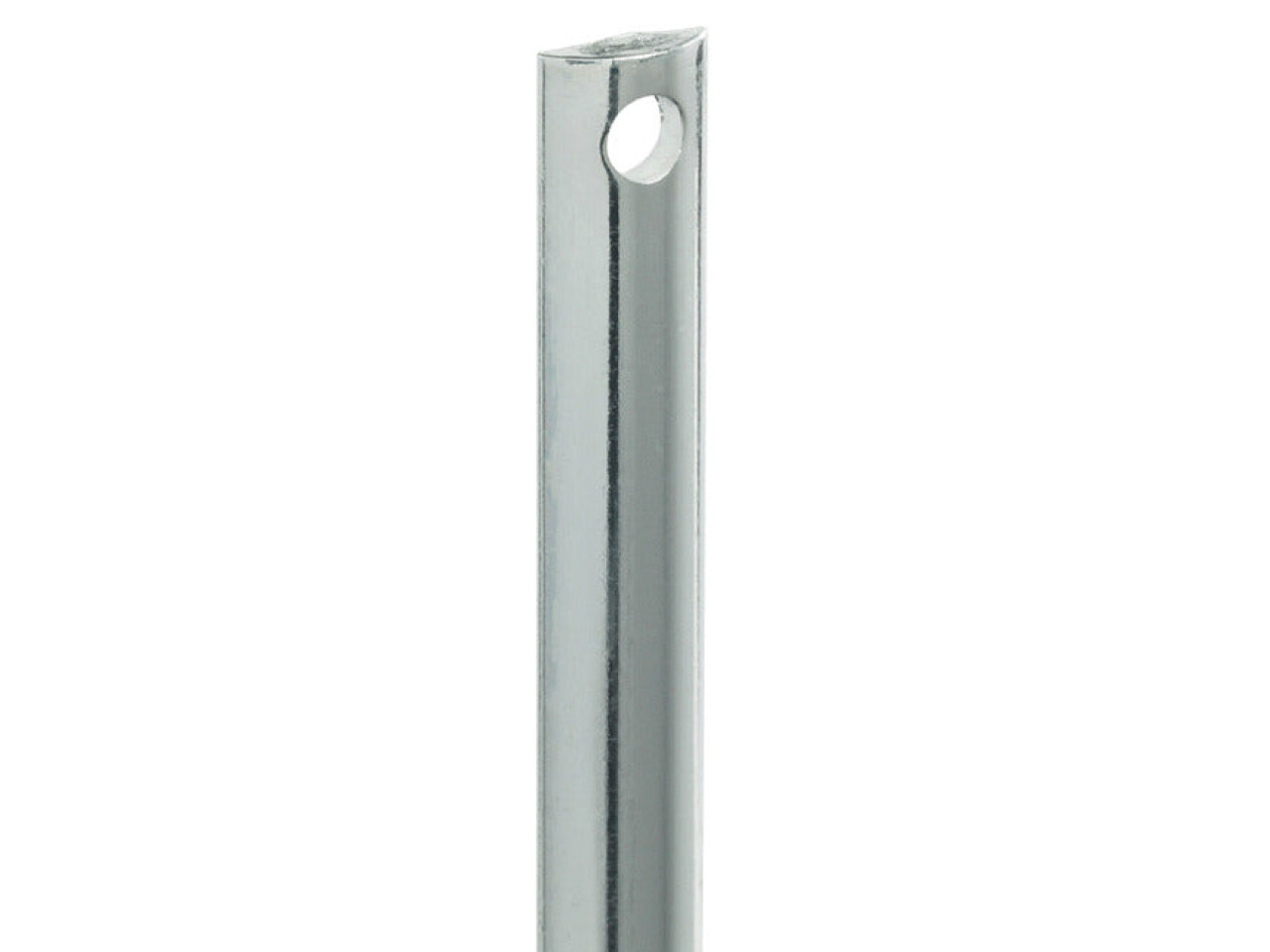

Profile Rods 2500mm High Doors St Galv
Part Number: 239.81.950
For approx. 2500 mm high doors, 1 pair = 1x 975 mm, 1x 1475 mm length
Price:
£18.18
Per Item
Installation note Please note the following construction dimensions when designing the cabinet and when... Read More
Product Information
Product Details
Installation note
Please note the following construction dimensions when designing the cabinet and when choosing the accessories for the extending rod lock:
A upper rod dimension: Centre of lock case C – 23 mm
B lower rod dimension: Centre of lock case C – 23 mm
Calculation applies to travel of 16 mm.

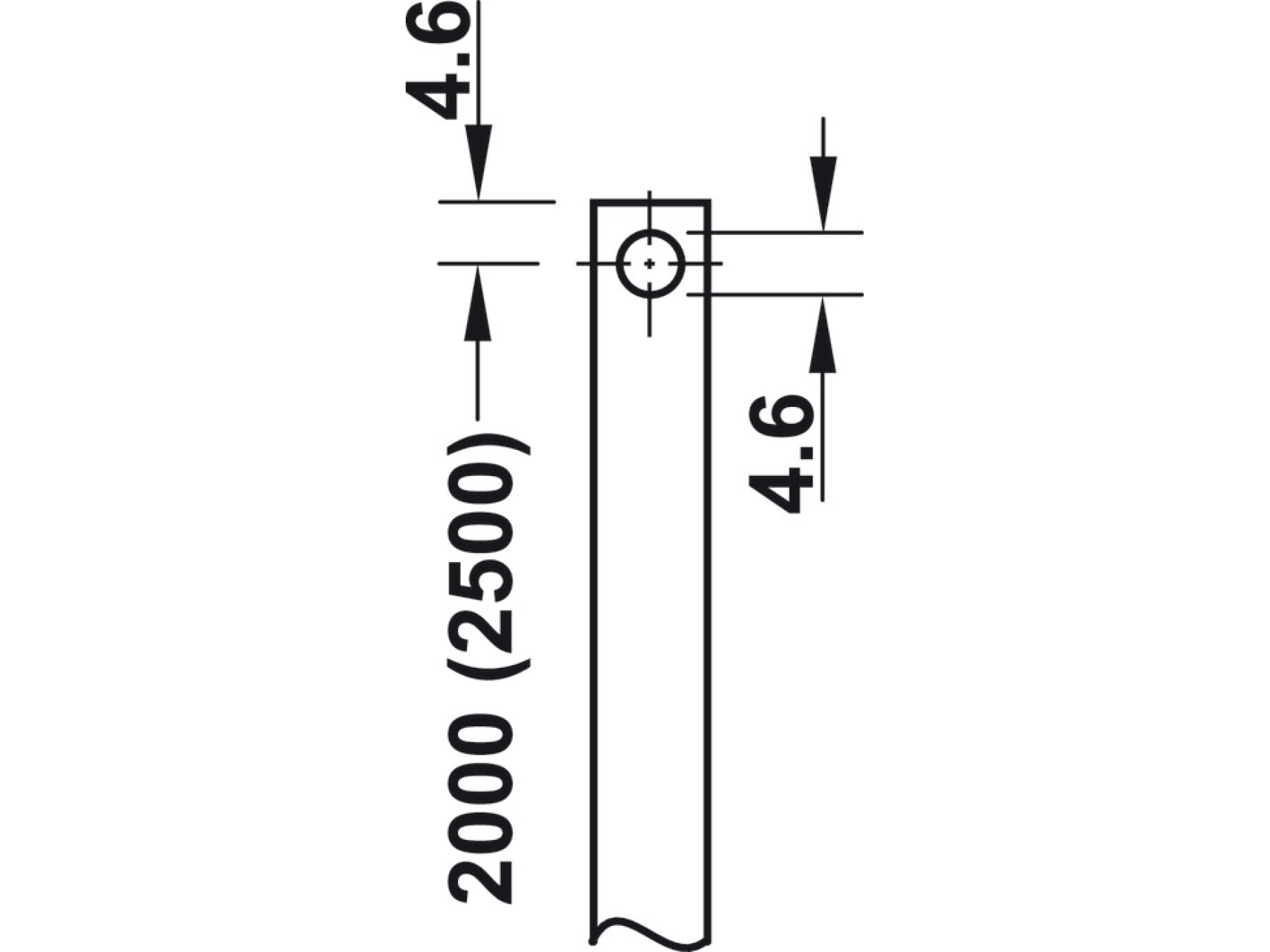

Door height: 2000 mm (2 x length 975 mm) or 2500 mm (1 x length 975 mm, 1 x length 1475 mm)
Specifications
Colour/finish
Zinc plated, Galvanized
Product category
Profile Rod
Area of application
For Symo 3000 extending rod lock
Version
Solid profile
Material
Steel
Travel
16.00 mm
